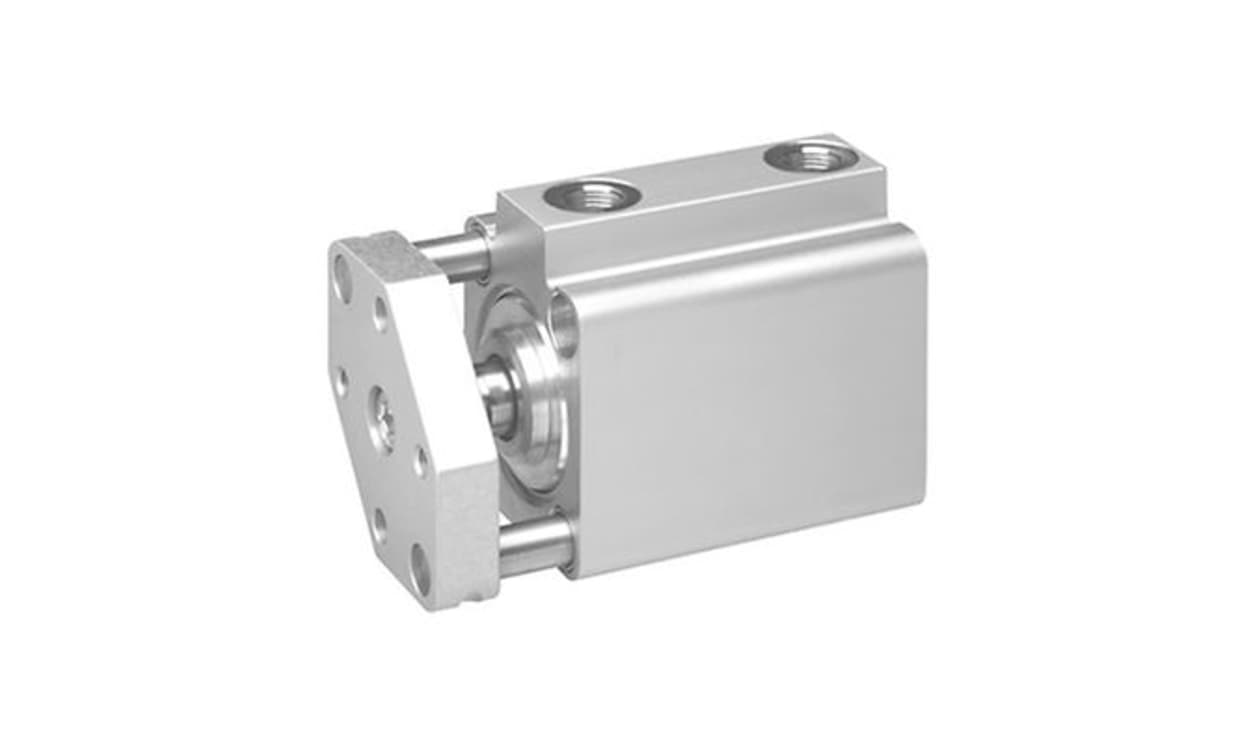

AVENTICS 0822010756 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 40 mm Stroke, G 1/8

Name: AVENTICS 0822010756 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 40 mm Stroke, G 1/8
Brand: Aventics
SKU: 0822010756
Availability: OutOfStock

Part Number : 0822010756

This 40 mm bore KHZ cylinder from AVENTICS, part number 0822010756, gives 40 mm of stroke in a double-acting design and has a G 1/8 port connection with elastic cushioning.

Bore / stroke: 40 mm / 40 mm
KHZ series, double acting
Pneumatic port: G 1/8
Piston rod with female thread
Max. operating pressure: 10 bar
Works from -25 °C up to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder from the KHZ series is designed to excel in tight installation spaces, providing remarkable performance without compromising on safety or integration ease. Offering a robust functional principle of double-acting operation, it ensures reliability across various industrial applications. The innovative design of this cylinder accommodates environmental standards while boasting elastic cushioning for smoother operation. Its construction materials, including a stainless steel piston rod and aluminium housing, guarantee durability and resistance against wear. With a pressure range tailored for diverse operational needs, this short-stroke cylinder is an essential component for any sophisticated machinery setup.

Optimised for confined areas, allowing for integration into limited spaces
Double-acting functional principle ensures consistent and reliable performance
Constructed with high-quality materials to enhance lifespan and durability
Adheres to industry standards, making it suitable for a wide range of applications
Offers elastic cushioning, providing smooth and controlled movements under varying loads
Wide temperature tolerance guarantees operation in various environmental conditions
Pressure adaptability increases versatility in different operational scenarios
Standard scrapers maintain cleanliness and enhance longevity of components

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010756
Stroke	40mm
Bore	40mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.285 kg
Stroke Interval Weight	0.06 @ 10 mm kg/mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C

AVENTICS 0822010756 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 40 mm Stroke, G 1/8

DOWNLOAD CATALOG

0822010756 Datasheet - 0822010756 A700000012571629
