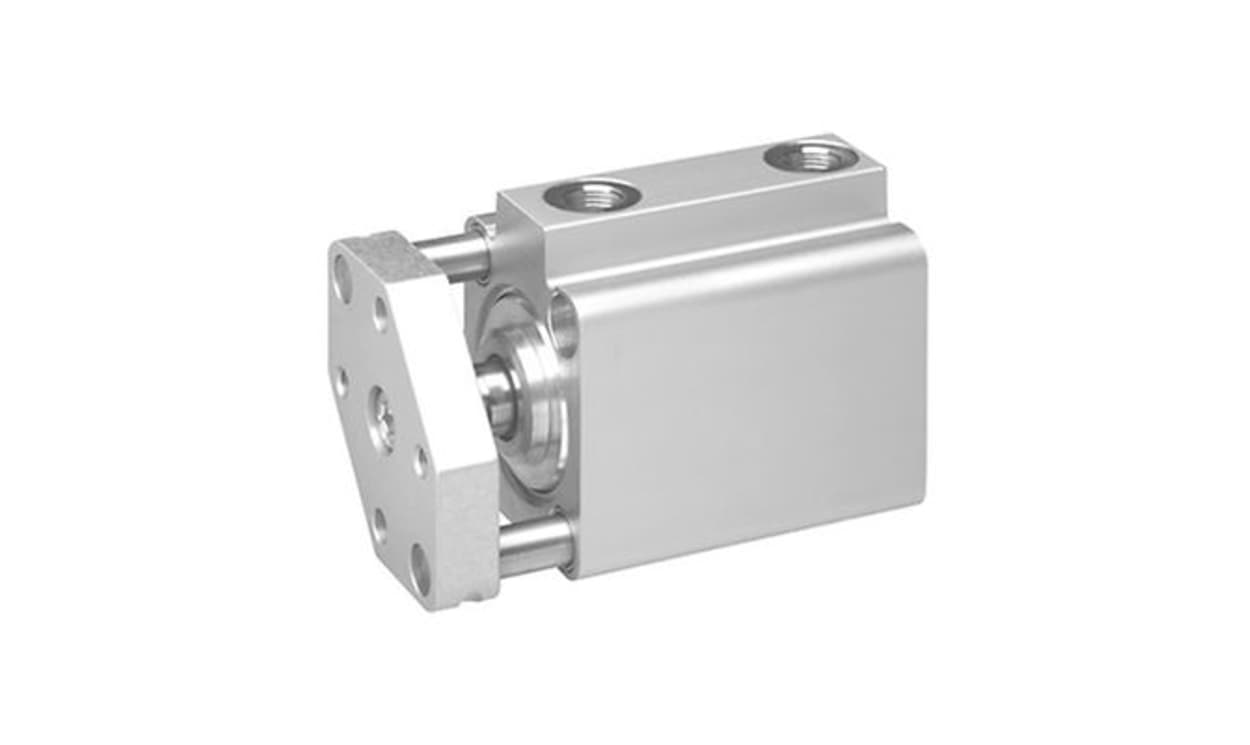

AVENTICS 0822010751 Pneumatic Piston Rod Cylinder - , 40mm Bore, 10mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010751 Pneumatic Piston Rod Cylinder - , 40mm Bore, 10mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010751
Availability: OutOfStock

Part Number : 0822010751

Availability: Sold out

Detailed Description
Specifications

The Aventics Series KHZ short-stroke cylinder is ingeniously designed for precision and efficiency in confined spaces. Built to excel in industrial applications, this non-standard cylinder combines robust engineering with exceptional functionality. Crafted to fit seamlessly into machinery, it offers a double-acting operation that promises reliable performance. The Series KHZ is equipped with features that enhance ease of integration, ensuring that users can optimise their systems without compromise. With a variety of technical specifications, such as customised piston and stroke lengths, this cylinder meets diverse operational needs while maintaining industry standards. Not just efficient, but also built to withstand demanding environmental conditions, it is engineered for versatility and longevity in various industrial settings.

Designed for tight installation spaces, facilitating seamless integration
Employs double-acting functionality for improved operational efficiency
Stainless steel piston rod ensures durability and long-lasting performance
Elastic cushioning system reduces impact and prolongs service life
Aluminium components minimise weight while retaining structural integrity
Configured for both high and low working pressure, accommodating various applications
Offers effective magnetic piston set-up options, catering to specific requirements
Industry-standard environmental requirements guarantee reliable operation

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010751
Action	Double
Stroke	10mm
Bore	40mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.285 kg
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.06 @ 10 mm kg/mm
Maximum Operating Temperature	+80°C
