AVENTICS 0822010742 Pneumatic Piston Rod Cylinder - , 32mm Bore, 15mm Stroke, KHZ Series, Double Acting

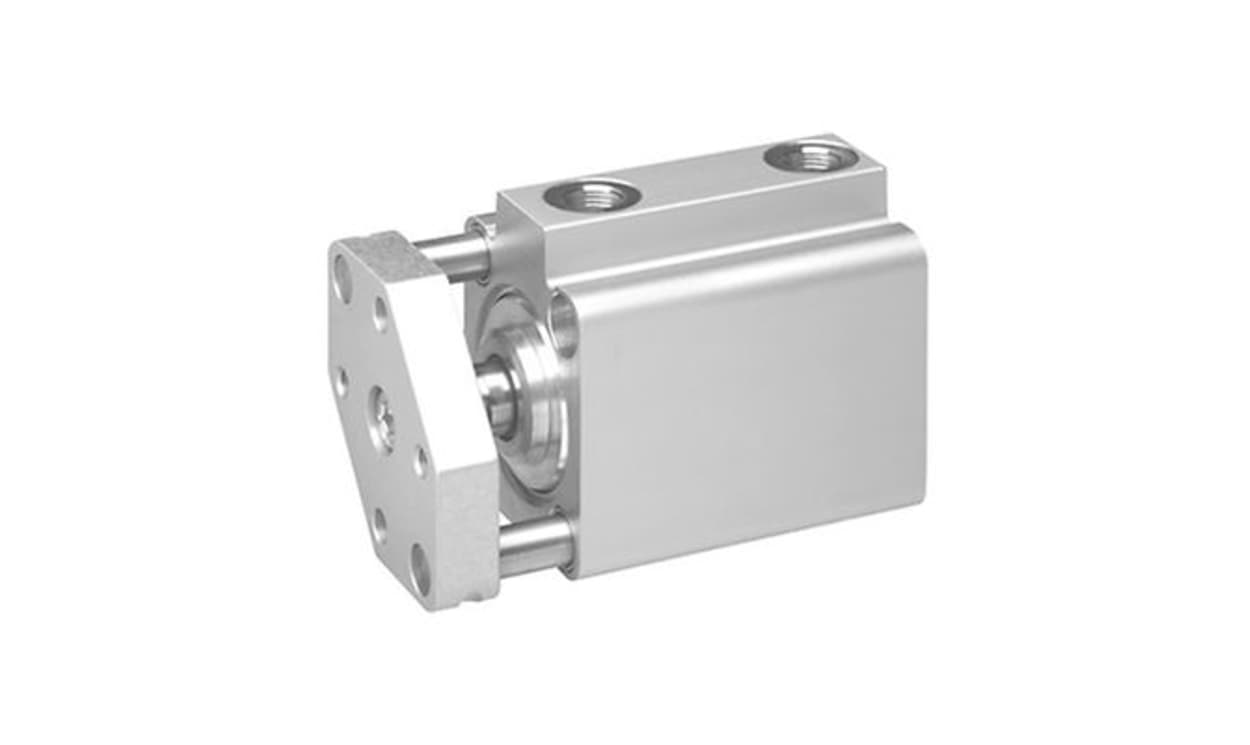

Name: AVENTICS 0822010742 Pneumatic Piston Rod Cylinder - , 32mm Bore, 15mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010742
Availability: OutOfStock

Part Number : 0822010742

Availability: Sold out

Detailed Description
Specifications

The Aventics short-stroke cylinder, part of the Series KHZ, is engineered for optimal performance in confined spaces, offering a solution that blends versatility with a robust design. The product features a double-acting functional principle, allowing for efficient operation in a variety of industrial applications. Constructed from high-quality materials such as stainless steel and aluminium, this cylinder not only ensures longevity but also accommodates a broad range of environmental conditions. Its design incorporates elastic cushioning to enhance operational safety and comfort, making it an excellent choice for machinery integration. Moreover, the Series KHZ's minimal ambient temperature threshold of -25°C allows it to function reliably in harsh environments, while the user-friendly specifications make installation seamless.

Ideal for tight installation spaces, enhancing versatility in machinery
Double-acting principle enables efficient operation
Constructed from durable materials for increased longevity
Elastic cushioning feature enhances operational safety and comfort
Wide temperature range tolerance supports diverse industrial environments
Easy integration into pre-existing machinery systems
Designed to maintain consistent oil content for optimal performance
Customisable through various available versions to suit specific needs

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010742
Bore	32mm
Stroke	15mm
Action	Double
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.05 @ 10 mm kg/mm
Maximum Operating Temperature	+80°C
Test Weight	0.195 kg
