AVENTICS 0822010741 Pneumatic Piston Rod Cylinder - , 32mm Bore, 10mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010741 Pneumatic Piston Rod Cylinder - , 32mm Bore, 10mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010741
Availability: OutOfStock

Part Number : 0822010741

Availability: Sold out

Detailed Description
Specifications

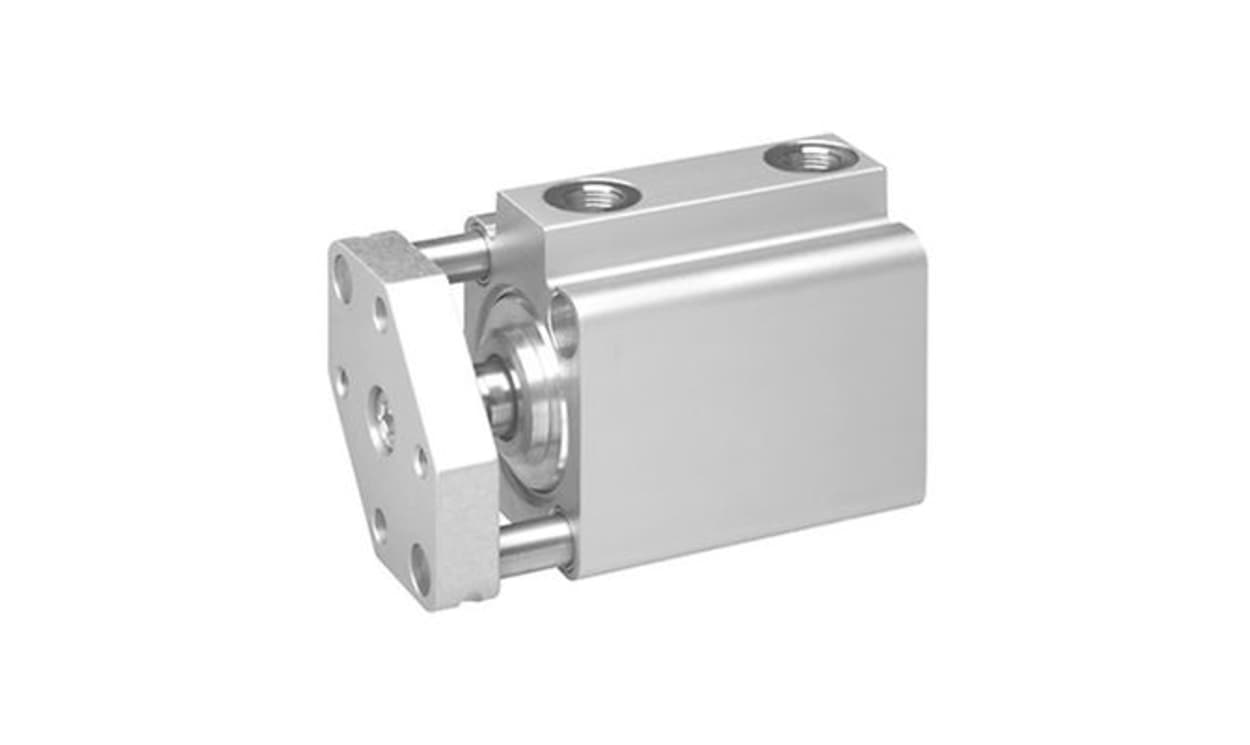

The Aventics Series KHZ short-stroke cylinder is designed for applications where space is at a premium, delivering exceptional performance in even the most compact environments. Engineered with a double-acting functional principle, this cylinder provides reliable actuation while accommodating limited installation spaces. Its elastic cushioning ensures smooth operation, minimising wear and tear while preserving efficiency in motion. The robust construction features components crafted from high-quality materials, making it resilient under varying industrial conditions. Moreover, this versatile cylinder operates effectively with compressed air, rendering it suitable for a wide range of industrial applications. Whether you're automating machinery or enhancing production processes, the Series KHZ guarantees precision and reliability, providing the perfect solution for applications requiring short-stroke movement.

Compact design enables installation in tight spaces
Double-acting principle enhances operational efficiency
Elastic cushioning minimises wear and extends service life
Constructed from high-quality materials for durability
Operates effectively with compressed air for flexibility in usage
Standard features simplify integration into existing systems
Wide operating temperature range ensures reliable performance
Lightweight design facilitates ease of handling and installation

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010741
Action	Double
Stroke	10mm
Bore	32mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Stroke Interval Weight	0.05 @ 10 mm kg/mm
Maximum Operating Temperature	+80°C
Test Weight	0.195 kg
Minimum Operating Temperature	-25°C
