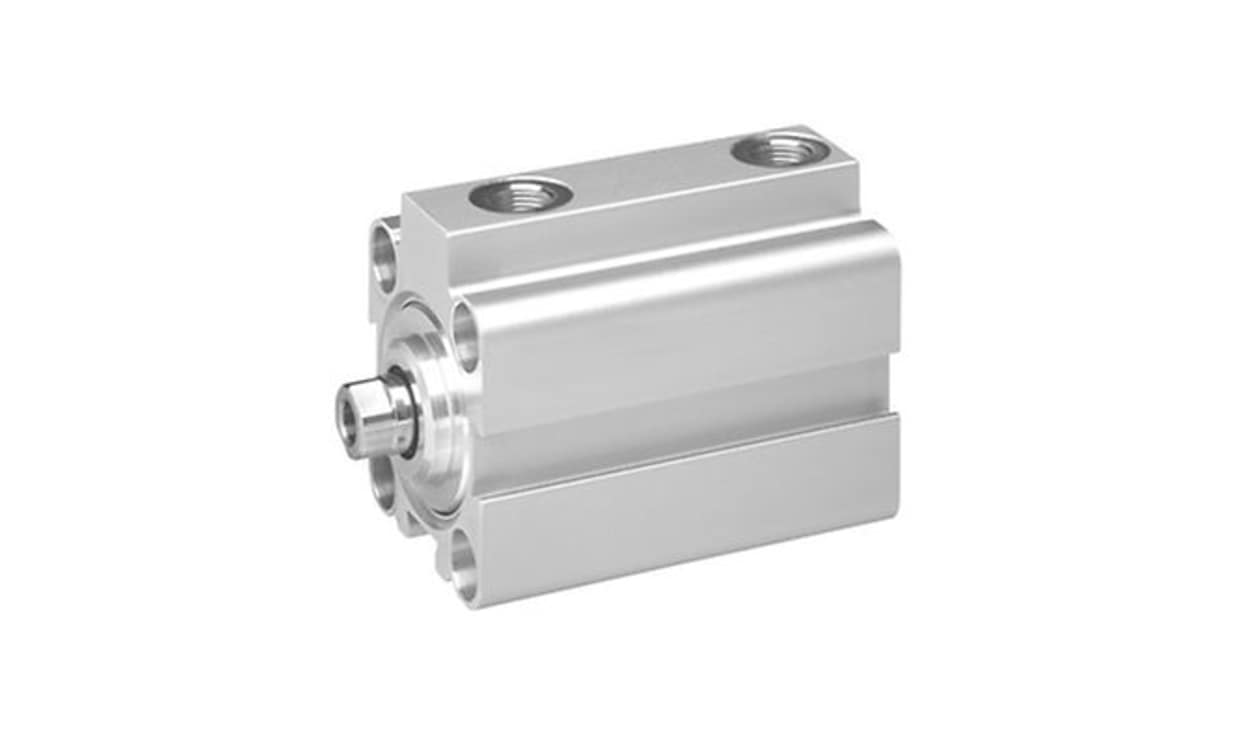

AVENTICS 0822010676 Pneumatic Piston Rod Cylinder - , 63mm Bore, 40mm Stroke, KHZ Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0822010676 Pneumatic Piston Rod Cylinder - , 63mm Bore, 40mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010676 Pneumatic Piston Rod Cylinder - , 63mm Bore, 40mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010676
Availability: OutOfStock

Part Number : 0822010676

Availability: Sold out

Detailed Description
Specifications

The Aventics Short Stroke Cylinder from aventics is meticulously designed for maximum efficiency in confined spaces. The series KHZ integrates seamlessly into machinery, offering both safety and ease of use. Its compact dimensions do not compromise on performance, making it a reliable choice for diverse industrial applications. With a robust build tailored to withstand industry standards, this model excels in environments that demand reliability and durability. The double-acting functional principle ensures consistent performance, making this cylinder an essential component in various pneumatic systems.

Constructed from durable materials to withstand rigorous environments
Features elastic cushioning for smooth operation and reduced wear
Operating temperature ranges meet demanding industrial requirements
Environmentally resistant materials suitable for harsh conditions

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010676
Stroke	40mm
Bore	63mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
