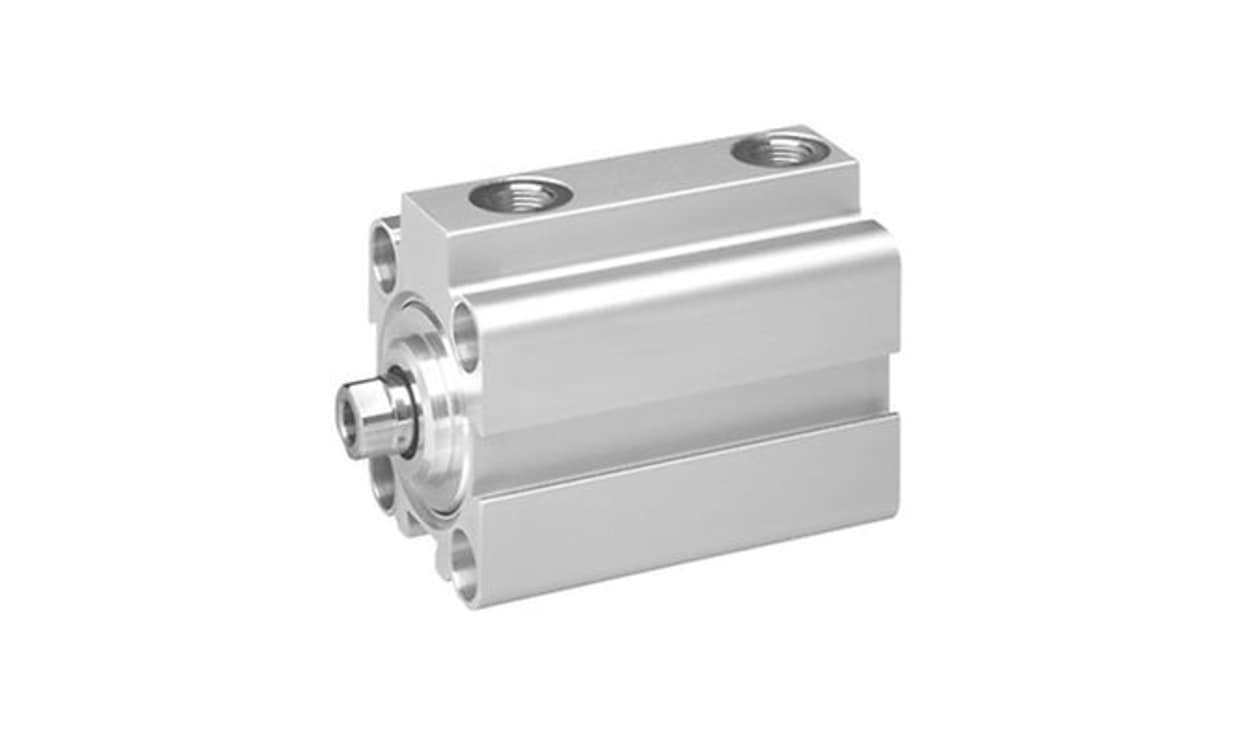

AVENTICS 0822010672 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 63 mm Bore, 15 mm Stroke, G 1/8

Name: AVENTICS 0822010672 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 63 mm Bore, 15 mm Stroke, G 1/8
Brand: Aventics
SKU: 0822010672
Availability: OutOfStock

Part Number : 0822010672

AVENTICS 0822010672 is a KHZ series piston rod cylinder sized at 63 mm bore and 15 mm stroke, working double acting, with compressed air connected via G 1/8 and a rating of up to 10 bar.

63 mm bore × 15 mm stroke
Action: double acting (KHZ series)
G 1/8 pneumatic connection
Piston rod thread gender: female
Cushioning type: elastic
Temperature range: -25 °C to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder from the series KHZ is meticulously designed for applications requiring compactness without sacrificing performance. Ideal for tight installation spaces, it seamlessly integrates into various machinery setups, delivering reliability and efficiency. With its double-acting functional principle and elastic cushioning, this cylinder ensures smooth operation, making it suitable for industrial environments. The robust construction features a stainless steel piston rod and nitrile rubber piston, providing durability and resistance to wear. Perfectly engineered to meet industry standards, it offers an exceptional range of technical specifications, including a maximum ambient temperature of 80 °C, allowing it to perform under demanding conditions. Whether in harsh environments or precision applications, this cylinder is a dependable choice for professionals seeking quality and longevity in their equipment.

Delivers consistent performance in limited space applications
Ensures safe and easy integration within various machinery
Designed with elastic cushioning for shock absorption
Constructed from high-quality materials for enhanced durability
Operates efficiently across a broad temperature range
Features a magnetic piston for reliable functionality
Built to comply with industry standards for safety
Lightweight design aids in reducing overall equipment weight
Low oil content requirements promote sustainable operation

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010672
Action	Double
Bore	63mm
Stroke	15mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.096 @ 10 mm kg/mm
Test Weight	0.636 kg

AVENTICS 0822010672 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 63 mm Bore, 15 mm Stroke, G 1/8

DOWNLOAD CATALOG

0822010672 Datasheet - 0822010672 A700000012570931
