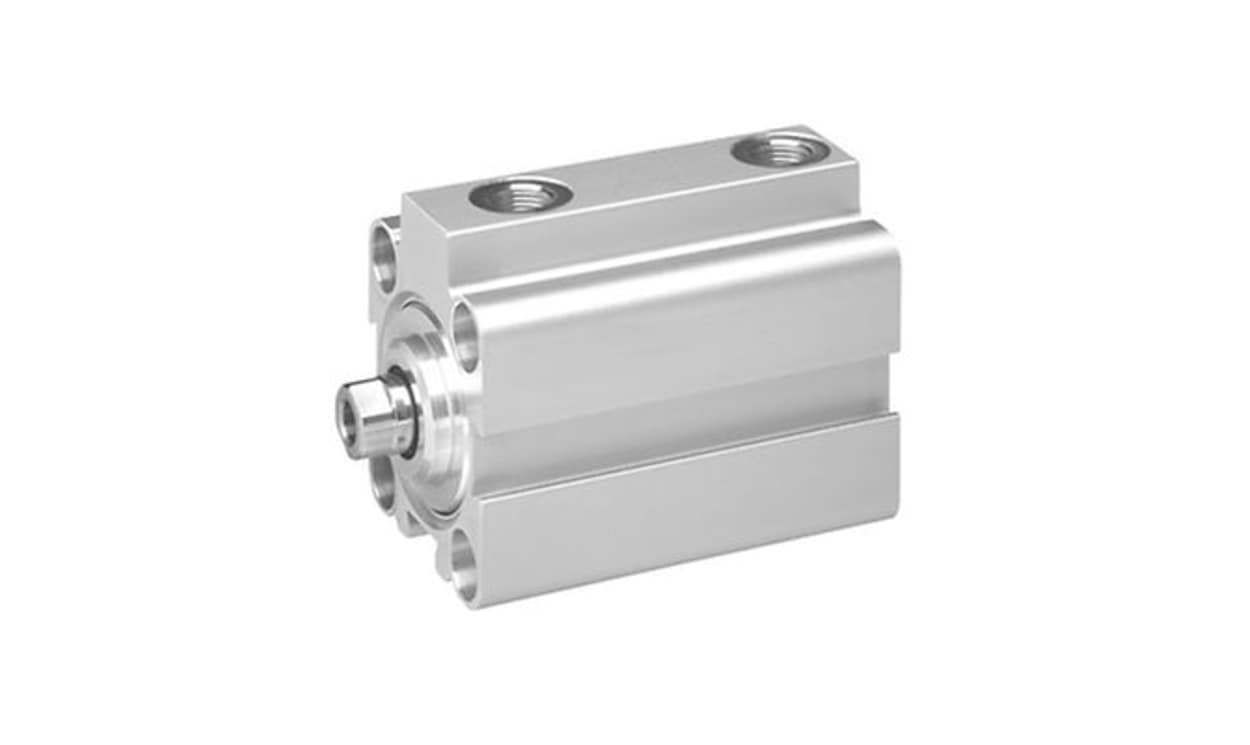

AVENTICS 0822010653 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 20 mm Stroke, G 1/8

Name: AVENTICS 0822010653 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 20 mm Stroke, G 1/8
Brand: Aventics
SKU: 0822010653
Availability: OutOfStock

Part Number : 0822010653

Part number 0822010653 from AVENTICS pairs a 20 mm stroke with a 40 mm bore in the double-acting KHZ series, taking a G 1/8 pneumatic connection and specified for operating temperatures between -25 °C and +80 °C.

Bore 40 mm, stroke 20 mm
Double-acting operation, KHZ series
Port connection: G 1/8
Female piston rod thread
Elastic cushioning
Maximum operating pressure 10 bar

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder, designed as part of the KHZ series, showcases an exceptional blend of functionality and compactness, making it perfect for tight installation spaces. Engineered to facilitate safe and efficient integration into machinery, this product is ideal for varied industrial applications. Its double-acting functional principle ensures reliable operation, while the elastic cushioning provides enhanced stability during piston movement. With a robust construction featuring materials like stainless steel and aluminium, this cylinder not only meets industry standards but also performs efficiently under rigorous conditions. Whether you're working with compressed air in challenging environments or require precise control in your systems, this short-stroke cylinder stands out with its reliable performance and adaptability.

Optimised for installation in confined spaces, the design maximises available room
Double-acting principle guarantees efficient piston movement in both directions
Elastic cushioning enhances operational stability and protects against mechanical shock
Built with high-quality materials to ensure durability and longevity
Suitable for a wide range of ambient and medium temperatures, adapting to various industrial environments
Designed to operate efficiently with minimal oil content in compressed air

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010653
Action	Double
Stroke	20mm
Bore	40mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Stroke Interval Weight	0.052 @ 10 mm kg/mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Test Weight	0.285 kg

AVENTICS 0822010653 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 20 mm Stroke, G 1/8

DOWNLOAD CATALOG

0822010653 Datasheet - 0822010653 A700000012570771
