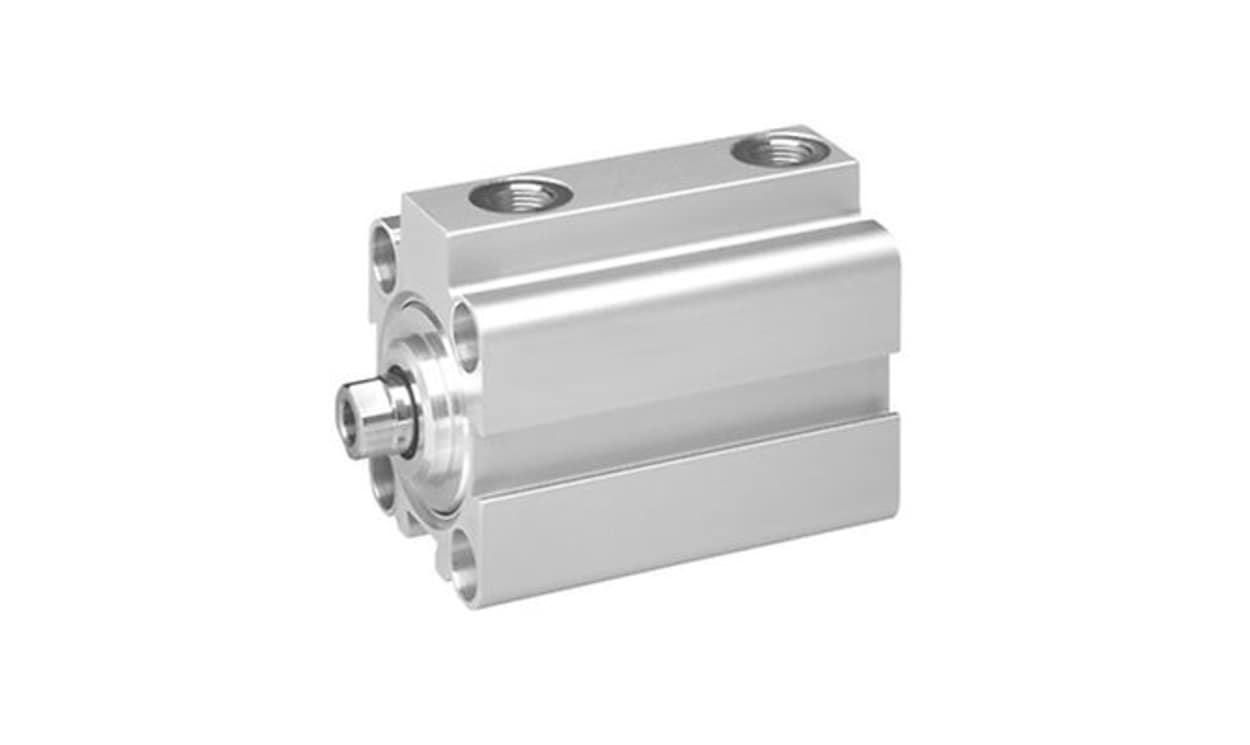

AVENTICS 0822010651 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 10 mm Stroke, G 1/8

Name: AVENTICS 0822010651 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 10 mm Stroke, G 1/8
Brand: Aventics
SKU: 0822010651
Availability: OutOfStock

Part Number : 0822010651

AVENTICS 0822010651 is a KHZ series piston rod cylinder sized at 40 mm bore and 10 mm stroke, working double acting, with compressed air connected via G 1/8 and a rating of up to 10 bar.

40 mm bore × 10 mm stroke
Action: double acting (KHZ series)
G 1/8 pneumatic connection
Piston rod thread gender: female
Cushioning type: elastic
Temperature range: -25 °C to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder is expertly designed for tight installation spaces, ensuring seamless integration within machinery. The innovative series KHZ combines compact dimensions with robust performance, making it ideal for various industrial applications. Its double-acting functional principle guarantees optimal force delivery, while elastic cushioning enhances operational safety and efficiency. With a piston diameter of 40 mm and a myriad of technical specifications tailored for demanding environments, this cylinder excels in reliability, ensuring consistent operation under varying conditions. Additionally, the durable materials used in its construction promote longevity, making it a smart choice for those seeking dependable automation solutions.

Engineered for optimal space-saving applications
Designed to withstand ambient temperatures ranging from -25 °C to 80 °C
Incorporates a magnetic piston for increased precision in movement
Boasts an elastic cushioning system that enhances user safety
Constructed from high-quality materials such as stainless steel and aluminium
Features a standard industry scraper for reliable performance
Operates efficiently with a minimum working pressure of 0
6 bar
Allows for easy maintenance with stable oil content levels
Provides consistent force output with retracting piston force of 720 N

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010651
Bore	40mm
Stroke	10mm
Action	Double
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.052 @ 10 mm kg/mm
Test Weight	0.285 kg
Maximum Operating Temperature	+80°C

AVENTICS 0822010651 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 40 mm Bore, 10 mm Stroke, G 1/8

DOWNLOAD CATALOG

0822010651 Datasheet - 0822010651 A700000012570751
