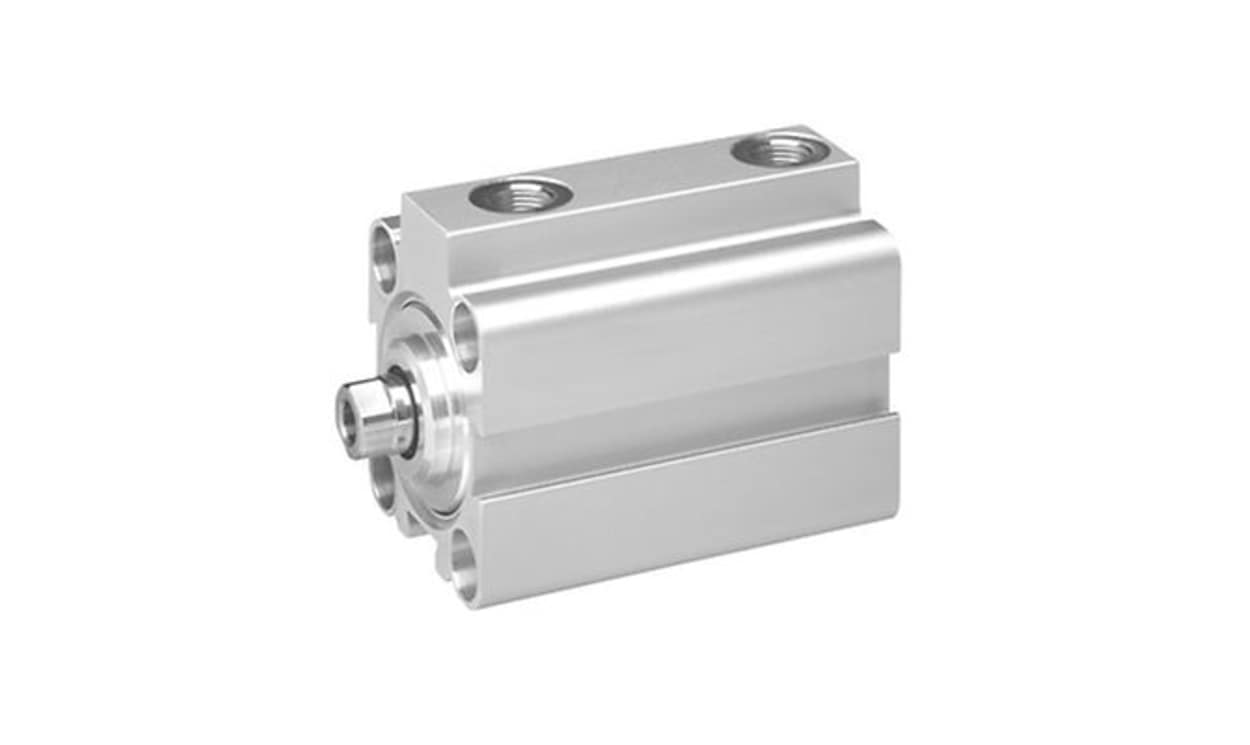

AVENTICS 0822010624 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 25 mm Stroke, KHZ

Name: AVENTICS 0822010624 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 25 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010624
Availability: OutOfStock

Part Number : 0822010624

The AVENTICS 0822010624 is a double-acting KHZ piston rod cylinder with a 20 mm bore and 25 mm stroke. It connects through an M5 port and has a female piston rod thread.

Bore: 20 mm
Stroke: 25 mm
Port connection: M5
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Short Stroke Cylinder from aventics is meticulously designed for maximum efficiency in confined spaces. The series KHZ integrates seamlessly into machinery, offering both safety and ease of use. Its compact dimensions do not compromise on performance, making it a reliable choice for diverse industrial applications. With a robust build tailored to withstand industry standards, this model excels in environments that demand reliability and durability. The double-acting functional principle ensures consistent performance, making this cylinder an essential component in various pneumatic systems.

Constructed from durable materials to withstand rigorous environments
Features elastic cushioning for smooth operation and reduced wear
Operating temperature ranges meet demanding industrial requirements
Environmentally resistant materials suitable for harsh conditions

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010624
Bore	20mm
Stroke	25mm
Action	Double
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C

AVENTICS 0822010624 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 25 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010624 Datasheet - 0822010624 A700000012572591
