AVENTICS 0822010622 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 15 mm Stroke, KHZ

Name: AVENTICS 0822010622 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 15 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010622
Availability: OutOfStock

Part Number : 0822010622

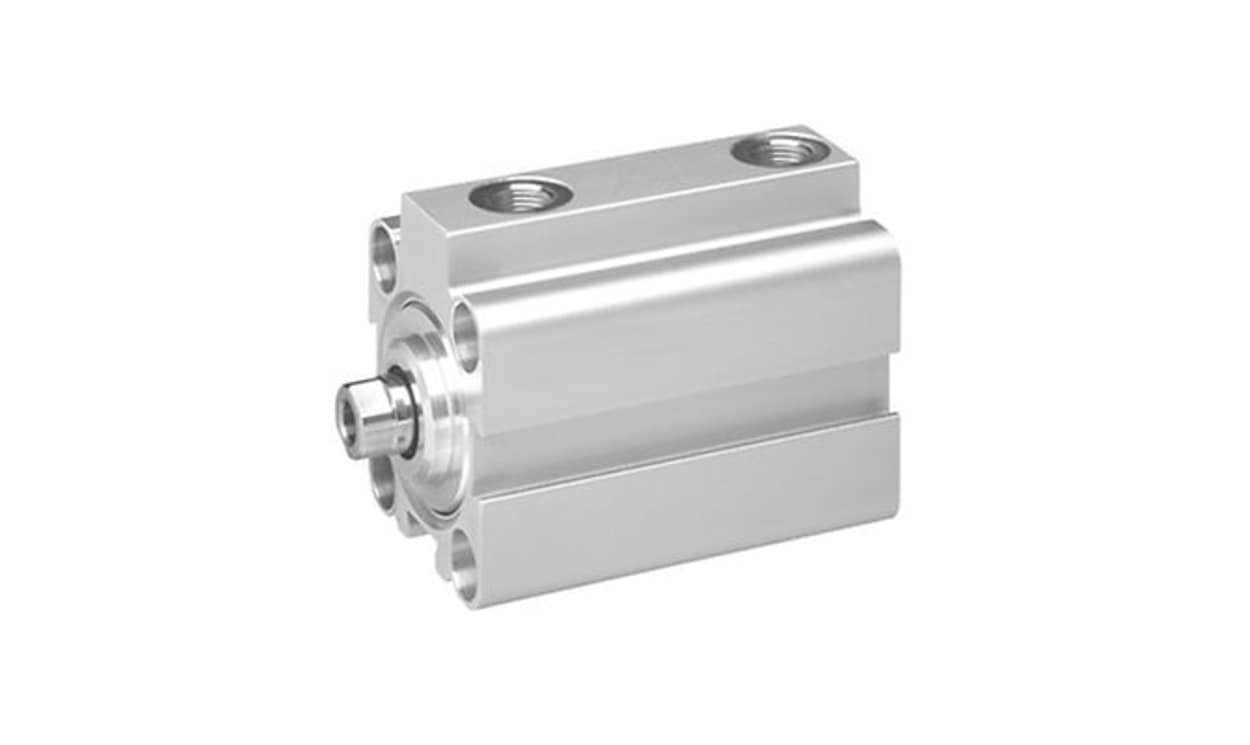

Specified with a 20 mm bore and 15 mm stroke, the AVENTICS 0822010622 is a double-acting pneumatic piston rod cylinder in the KHZ series, using M5 port connections and a female piston rod thread.

Bore: 20 mm
Stroke: 15 mm
Port connection: M5
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder from aventics is specifically designed for environments where space is at a premium. With its compact form factor, the Series KHZ cylinder provides reliable performance while ensuring simple integration into various machinery setups. This model stands out thanks to its robust construction and versatility, making it suitable for a range of industrial applications. Featuring double-acting functionality and elastic cushioning, it optimally meets the demands of diverse operations. Whether you're in manufacturing, automation, or material handling, this cylinder guarantees effectiveness and longevity in service.

Compact design facilitates installation in tight spaces
Double-acting principle allows for efficient motion control
Elastic cushioning minimizes wear and tear, prolonging service life
Robust stainless steel piston rod ensures durability in harsh environments
Compatible with industry-standard connections for easy integration
Nitrile rubber piston material enhances resistance to oils and abrasives
Lightweight yet sturdy aluminium cylinder tube contributes to overall efficiency
Temperature tolerance ensures operation in a wide range of external conditions

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010622
Action	Double
Bore	20mm
Stroke	15mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C

AVENTICS 0822010622 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 15 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010622 Datasheet - 0822010622 A700000012572559
