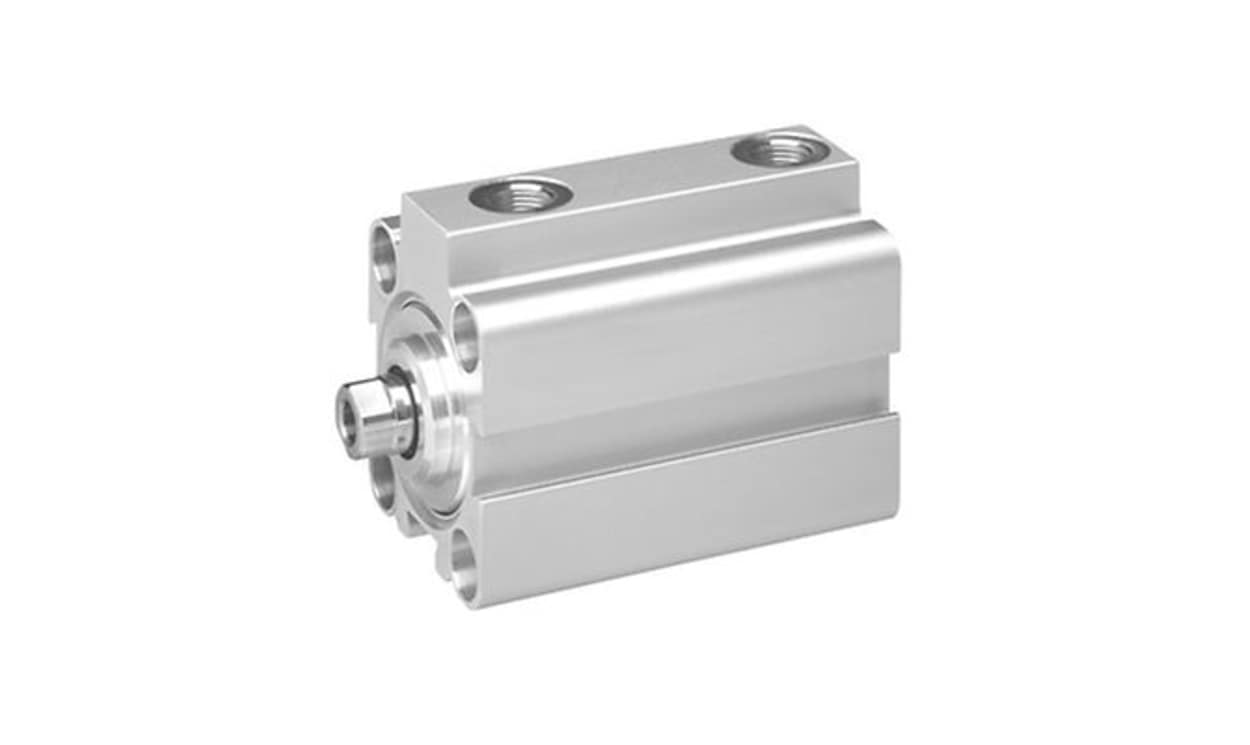

AVENTICS 0822010605 | Pneumatic Piston Rod Cylinder | 12 mm Bore, 30 mm Stroke, KHZ

Name: AVENTICS 0822010605 | Pneumatic Piston Rod Cylinder | 12 mm Bore, 30 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010605
Availability: OutOfStock

Part Number : 0822010605

A 30 mm stroke on a 12 mm bore sets the AVENTICS 0822010605 apart within the KHZ range of double-acting piston rod cylinders. Air enters through M5 ports and the rod end carries a female piston rod thread.

Bore: 12 mm
Stroke: 30 mm
Port connection: M5
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Series KHZ short-stroke cylinder is expertly engineered for precision and adaptability in confined spaces. Designed for double-acting functionality, this non-standard cylinder seamlessly integrates into diverse industrial applications. It boasts a compact build, featuring a piston diameter of 12 mm and a stroke of 30 mm, making it ideal for environments where space is at a premium. With outstanding cushioning properties and magnetic piston capabilities, the Series KHZ ensures smooth operation and reliable performance. This cylinder is constructed from high-quality materials, including stainless steel and aluminium, guaranteeing durability and longevity even under demanding conditions.

Compact design optimised for tight installation spaces
Double-acting functionality enhances operational versatility
High-quality materials ensure durability and long-term service
Elastic cushioning reduces impact and increases lifespan
Magnetic piston supports effortless sensing and position detection
Integrated scraper maintains cleanliness and reduces wear
Suitable for a wide range of ambient temperatures
Easy integration into existing machinery setups

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010605
Stroke	30mm
Bore	12mm
Action	Double
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C

AVENTICS 0822010605 | Pneumatic Piston Rod Cylinder | 12 mm Bore, 30 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010605 Datasheet - 0822010605 A700000012572387
