AVENTICS 0822010603 Pneumatic Piston Rod Cylinder - , 12mm Bore, 20mm Stroke, KHZ Series, Double Acting

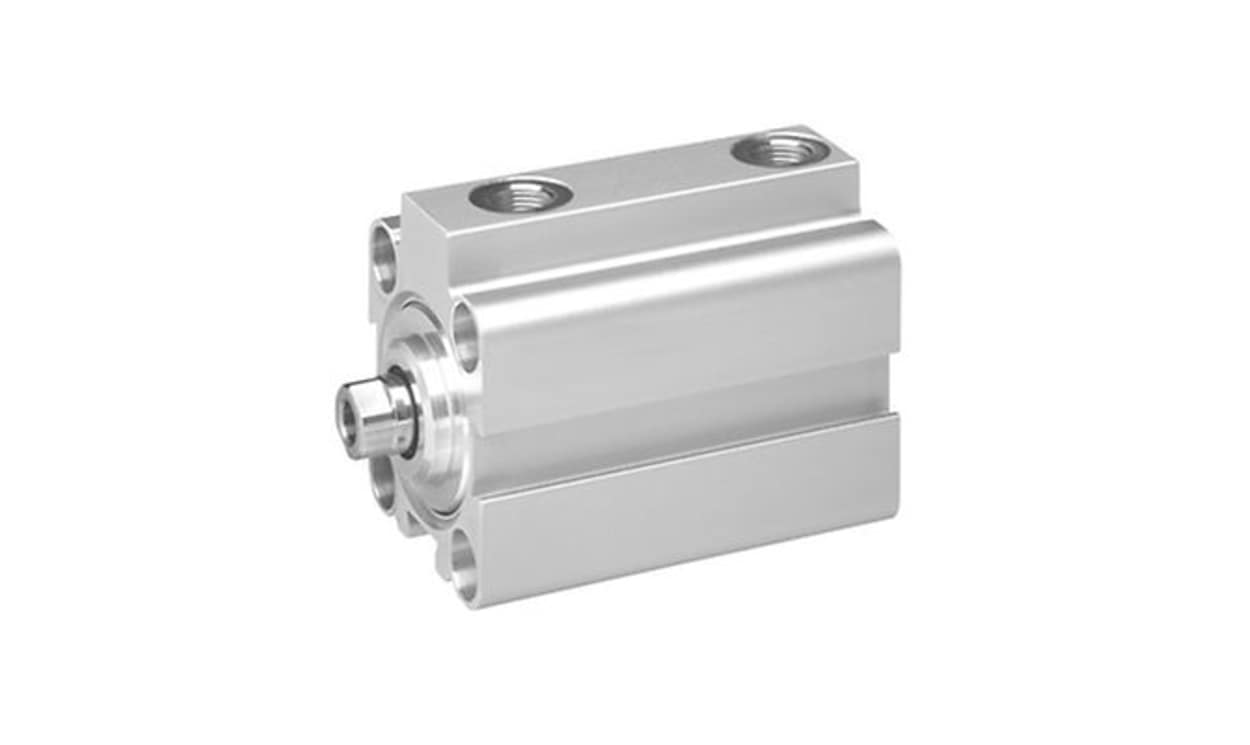

Name: AVENTICS 0822010603 Pneumatic Piston Rod Cylinder - , 12mm Bore, 20mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010603
Availability: OutOfStock

Part Number : 0822010603

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder, from the series KHZ, is expertly designed for applications where space is at a premium. With its robust construction and double-acting functional principle, the cylinder ensures reliable performance even under demanding environmental conditions. Ideal for integration into a variety of machinery, it features a lightweight aluminium cylinder tube and stainless steel piston rod, providing both durability and efficiency. The elastic cushioning enhances operation by reducing impact, while its magnetic piston allows for effortless sensing capabilities. This cylinder meets industry standards, making it a dependable choice for industrial applications requiring precision and robustness.

Compact design allows for versatile installation options in limited spaces
Double-acting functionality delivers consistent and powerful performance
Robust materials ensure high durability and longevity in demanding environments
Elastic cushioning enhances operational stability and reduces wear
Magnetic piston improves sensing capabilities for precise operations
Standard industry scraper protects components and prolongs service life
Adaptable to various ambient temperatures, ensuring reliability in diverse settings
Low weight design facilitates easier installation and handling

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010603
Stroke	20mm
Action	Double
Bore	12mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C

AVENTICS 0822010603 Pneumatic Piston Rod Cylinder - , 12mm Bore, 20mm Stroke, KHZ Series, Double Acting

DOWNLOAD CATALOG

0822010603 Datasheet - 0822010603 A700000012572355
