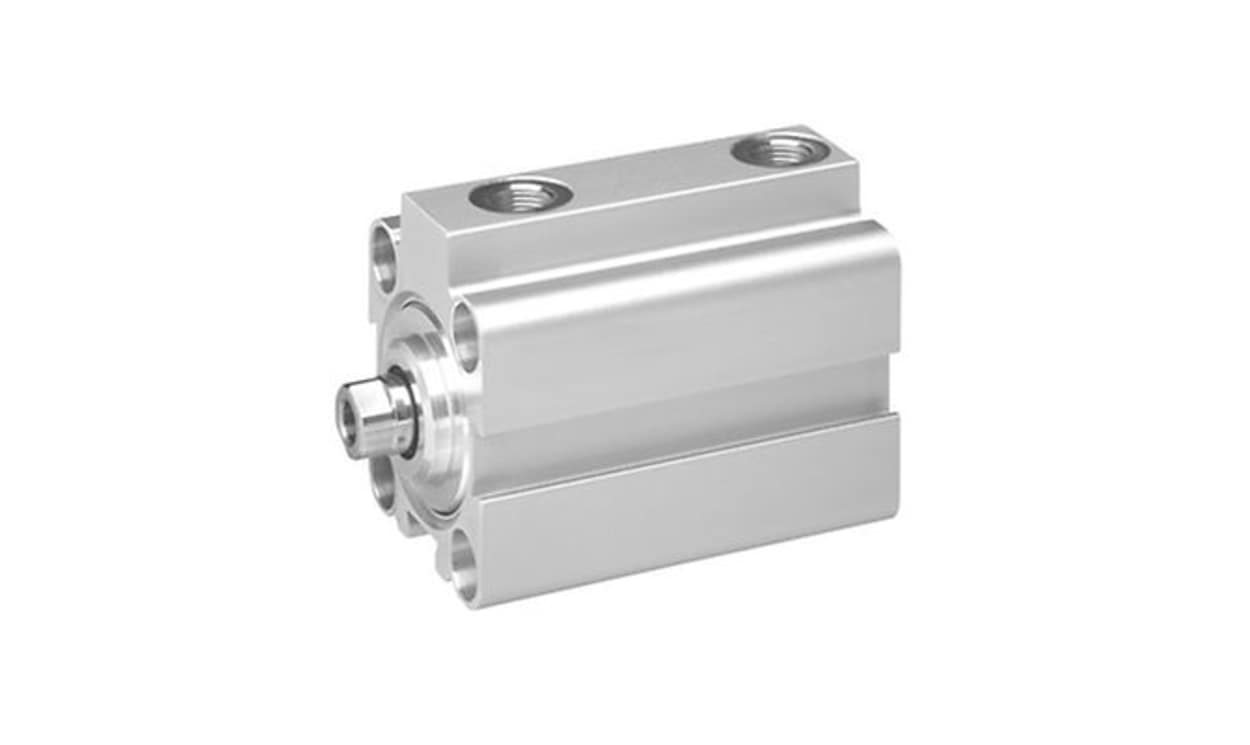

AVENTICS 0822010602 | Pneumatic Piston Rod Cylinder | 12 mm Bore, 15 mm Stroke, KHZ

Name: AVENTICS 0822010602 | Pneumatic Piston Rod Cylinder | 12 mm Bore, 15 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010602
Availability: OutOfStock

Part Number : 0822010602

For applications needing 15 mm of travel, the AVENTICS 0822010602 KHZ piston rod cylinder offers a 12 mm bore, double action and M5 ports, plus a female piston rod thread.

Bore: 12 mm
Stroke: 15 mm
Port connection: M5
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder from aventics is engineered for precision performance in confined spaces. Tailored specifically for industrial applications, this model excels in maintaining reliability and efficiency across various settings. Its compact design allows for seamless integration into machinery, ensuring a perfect fit even in the most challenging environments. The innovative double-acting functional principle enhances the actuator's responsiveness, making it ideal for tasks that demand quick and reliable motion. With its robust construction and suitability for a wide range of operating conditions, this cylinder provides both durability and versatility, catering to the diverse needs of modern industries.

Compact design optimised for limited installation spaces
Double-acting principle provides consistent performance
Elastic cushioning ensures smooth operation and reduces impact
Magnetic piston enhances sensing capabilities
Constructed with high-quality materials for increased longevity
Standard industry scraper protects against contamination
A wide range of operating pressures for varied industrial applications
Temperature resilience guarantees performance in extreme conditions

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010602
Stroke	15mm
Bore	12mm
Action	Double
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C

AVENTICS 0822010602 | Pneumatic Piston Rod Cylinder | 12 mm Bore, 15 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010602 Datasheet - 0822010602 A700000012572335
