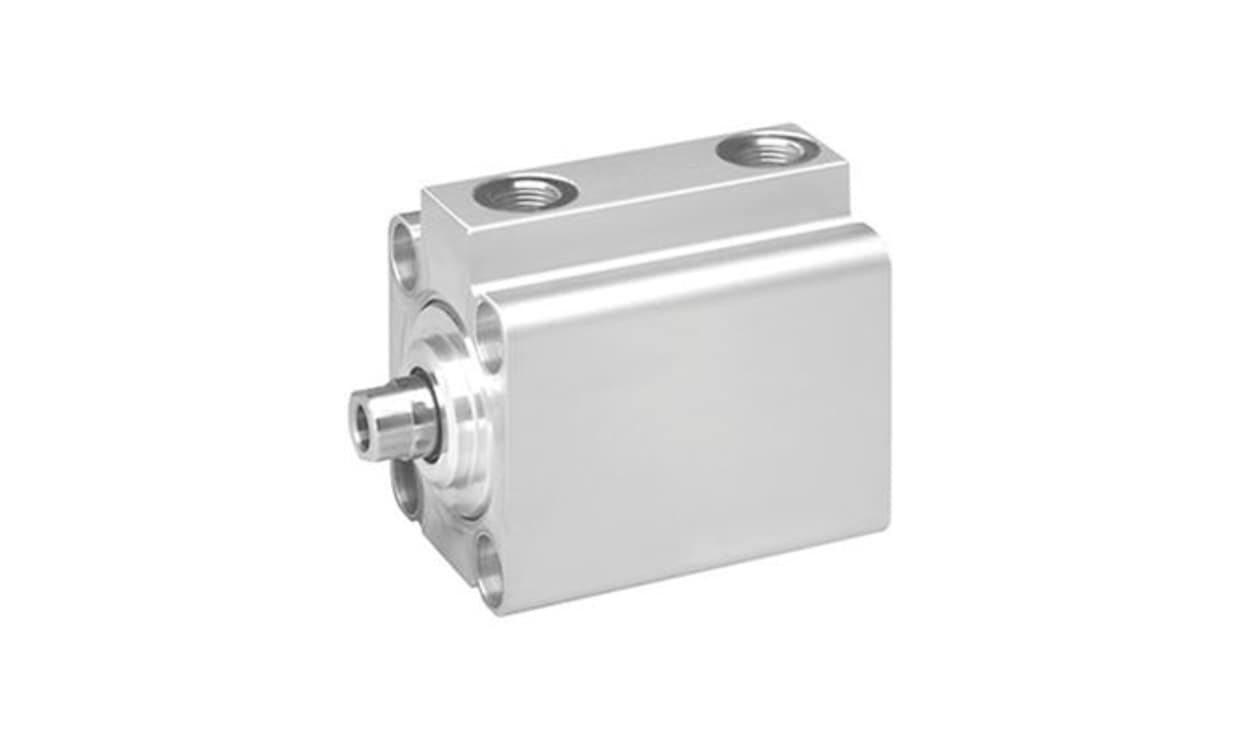

AVENTICS 0822010574 Pneumatic Piston Rod Cylinder - , 63mm Bore, 25mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010574 Pneumatic Piston Rod Cylinder - , 63mm Bore, 25mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010574
Availability: OutOfStock

Part Number : 0822010574

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder, part of the KHZ series, is designed for efficiency in compact spaces where reliability is paramount. Engineered for double-acting functionality, it offers seamless integration into various industrial systems. The unique design ensures optimal performance even in rigorous environments, providing a striking solution for applications requiring precise control and minimal footprint. With its robust construction, this cylinder excels in maintaining effective functionality while withstanding varying temperature and pressure conditions. The KHZ series embodies both practicality and advanced engineering for a multitude of industrial uses.

Optimised for tight installation spaces, allowing for uninterrupted workflow
Double-acting functional principle enhances operational versatility
Elastic cushioning contributes to reduced wear and extended service life
Constructed from durable materials to withstand industrial demands
Designed to operate efficiently at temperatures ranging from -25 °C to 80 °C
Environmentally compliant, adhering to industry standards for performance
Specialised piston rod threads and materials enhance strength and stability
Supports maximum pressure of 10 bar for diverse applications

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010574
Bore	63mm
Stroke	25mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.096 @ 10 mm kg/mm
Test Weight	0.636 kg

AVENTICS 0822010574 Pneumatic Piston Rod Cylinder - , 63mm Bore, 25mm Stroke, KHZ Series, Double Acting

DOWNLOAD CATALOG

0822010574 Datasheet - 0822010574 A700000012572241
