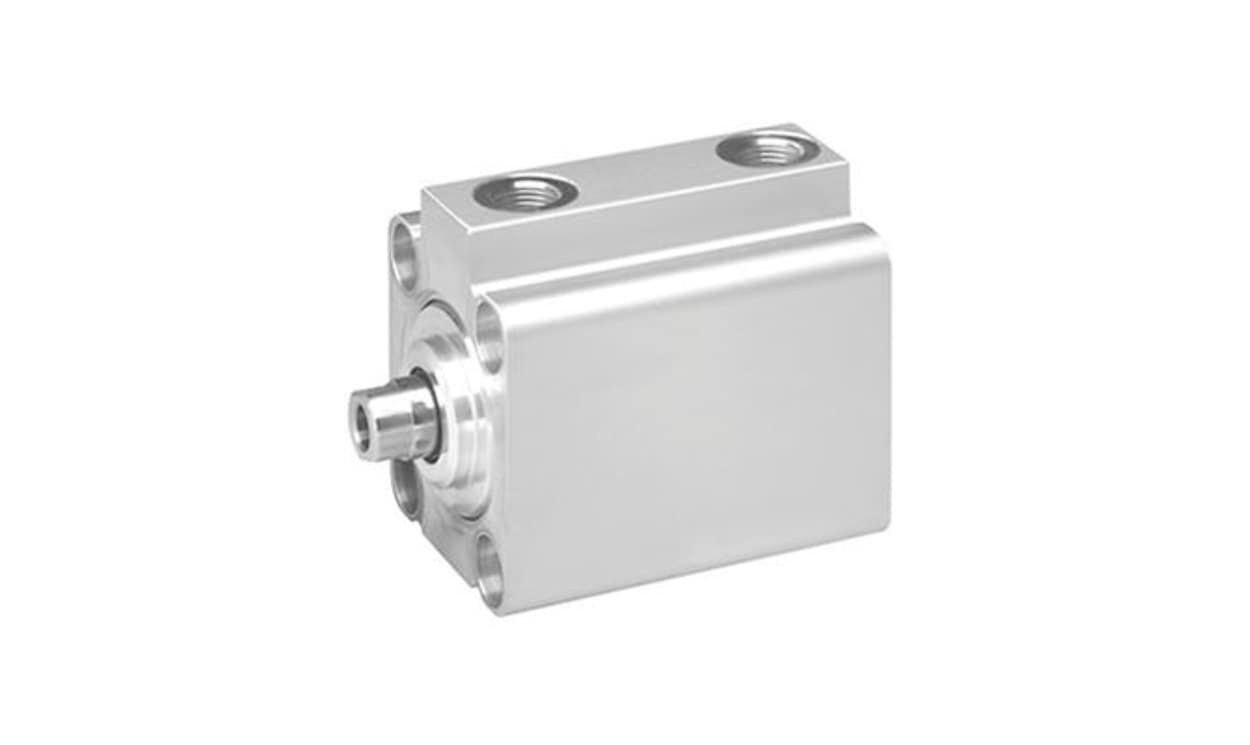

AVENTICS 0822010573 | Pneumatic Piston Rod Cylinder | 63 mm Bore, 20 mm Stroke, KHZ

Name: AVENTICS 0822010573 | Pneumatic Piston Rod Cylinder | 63 mm Bore, 20 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010573
Availability: OutOfStock

Part Number : 0822010573

A 20 mm stroke on a 63 mm bore sets the AVENTICS 0822010573 apart within the KHZ range of double-acting piston rod cylinders. Air enters through G 1/8 ports and the rod end carries a female piston rod thread.

Bore: 63 mm
Stroke: 20 mm
Port connection: G 1/8
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder, Series KHZ, is expertly designed to excel in constrained installation spaces. This innovative product enhances operational efficiency by providing a robust solution for a variety of industrial applications. Its double-acting functional principle ensures consistent performance, while elastic cushioning minimises wear and noise during operation. Crafted with high-quality materials such as stainless steel and aluminium, this cylinder promises durability and reliable performance under varying environmental requirements. Ideal for use with compressed air, it also caters to industry standards for medium temperature and pressure, ensuring safe and effective integration within existing machinery. The series KHZ stands out with its ability to deliver high piston forces, making it a formidable choice for those seeking efficiency without compromising on space.

Designed for tight installation spaces to maximise utility
Double-acting mechanism for efficient and potent performance
Constructed with durable materials ensuring longevity
Effective in meeting industry standards for pneumatic applications
Elastic cushioning technology reduces operational noise
Adaptable to a variety of industrial environments and applications
Optimised for compressed air use, ensuring reliable functionality

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010573
Stroke	20mm
Bore	63mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Test Weight	0.636 kg
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.096 @ 10 mm kg/mm

AVENTICS 0822010573 | Pneumatic Piston Rod Cylinder | 63 mm Bore, 20 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010573 Datasheet - 0822010573 A700000012572226
