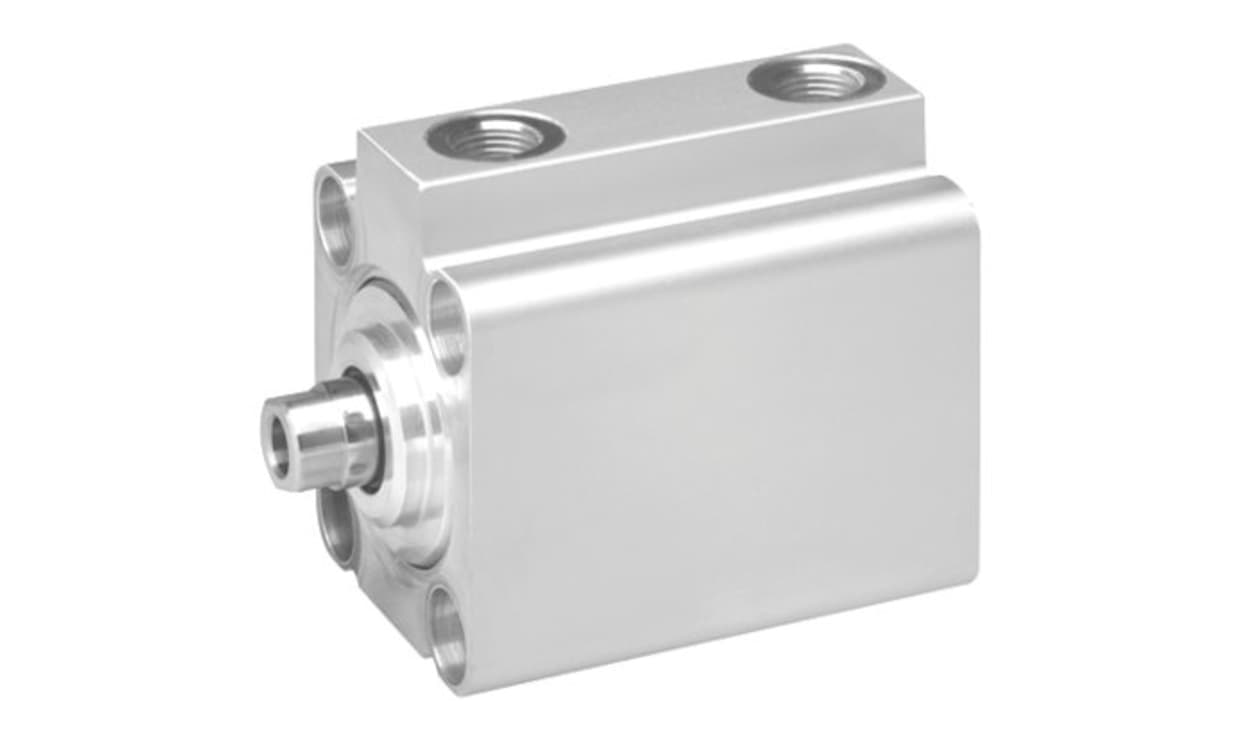

AVENTICS 0822010561 Pneumatic Compact Cylinder - 50mm Bore, 10mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010561 Pneumatic Compact Cylinder - 50mm Bore, 10mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010561
Availability: OutOfStock

Part Number : 0822010561

Availability: Sold out

Detailed Description
Specifications

Pneumatic Short Stroke Cylinders

Double Acting
Elastic cushioning
External piston rod thread 12 mm dia.
Internal piston rod thread 20 mm → 100 mm dia.
Compact dimensions

Pneumatic Short Stroke Cylinders

Brand	AVENTICS
Manufacturer Series	KHZ
Bore	50mm
Stroke	10mm
Action	Double
Port Connection	G 1/8
Cushioning Type	Rubber
Dimensions	59.5 x 72 x 64mm
Length	59.5mm
Width	72mm
Height	64mm
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Weight	458g
