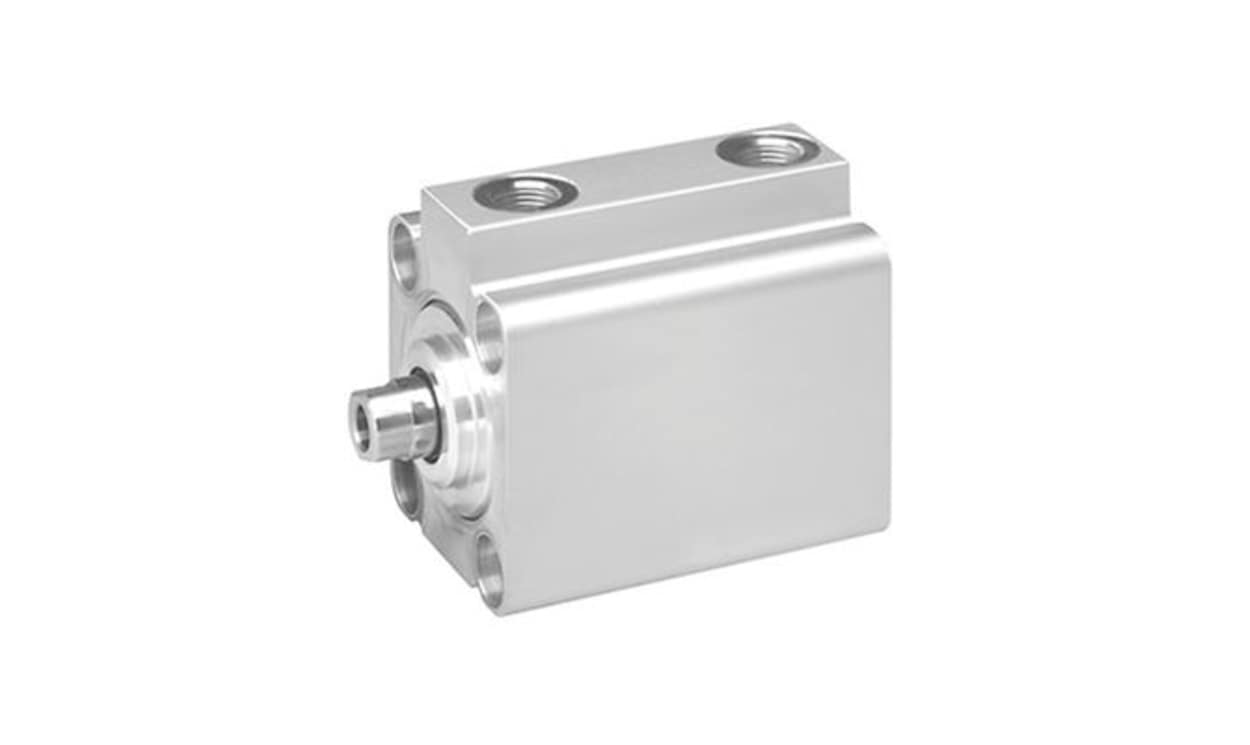

AVENTICS 0822010527 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 50 mm Stroke, KHZ

Name: AVENTICS 0822010527 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 50 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010527
Availability: OutOfStock

Part Number : 0822010527

This AVENTICS 0822010527 KHZ cylinder combines a 50 mm stroke with a 20 mm bore and works double acting from an M5 port connection, with a female piston rod thread.

Bore: 20 mm
Stroke: 50 mm
Port connection: M5
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Series KHZ short-stroke cylinder is engineered for precision in applications where space is at a premium. This robust cylinder combines advanced design features with exceptional performance, ensuring reliable service in industrial environments. With a piston diameter of 20 mm and a stroke length of 50 mm, this model excels in functionality while maintaining a compact size. Crafted from high-quality materials such as aluminium and stainless steel, the cylinder's durable construction allows for efficient operation under varying conditions. Its double-acting functional principle guarantees consistent power delivery, making it the ideal choice for machinery integration. Whether for standard pressure tasks or adapting to unique manufacturing requirements, this cylinder stands as a testament to effective engineering and careful consideration of operational demands.

Designed for tight installation spaces, ensuring versatility in equipment layouts
Elastic cushioning enhances shock absorption for smoother operation
Stainless steel piston rod provides durability and corrosion resistance
Standard industry scraper material extends the lifespan of the cylinder
Capable of operation between -25 °C and 80 °C, suitable for diverse environments
Minimal maintenance required due to high-quality construction and materials
Double-acting mechanism maximises efficiency and responsiveness

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010527
Action	Double
Bore	20mm
Stroke	50mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.082 kg
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.021 @ 10 mm kg/mm

AVENTICS 0822010527 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 50 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010527 Datasheet - 0822010527 A700000012571603
