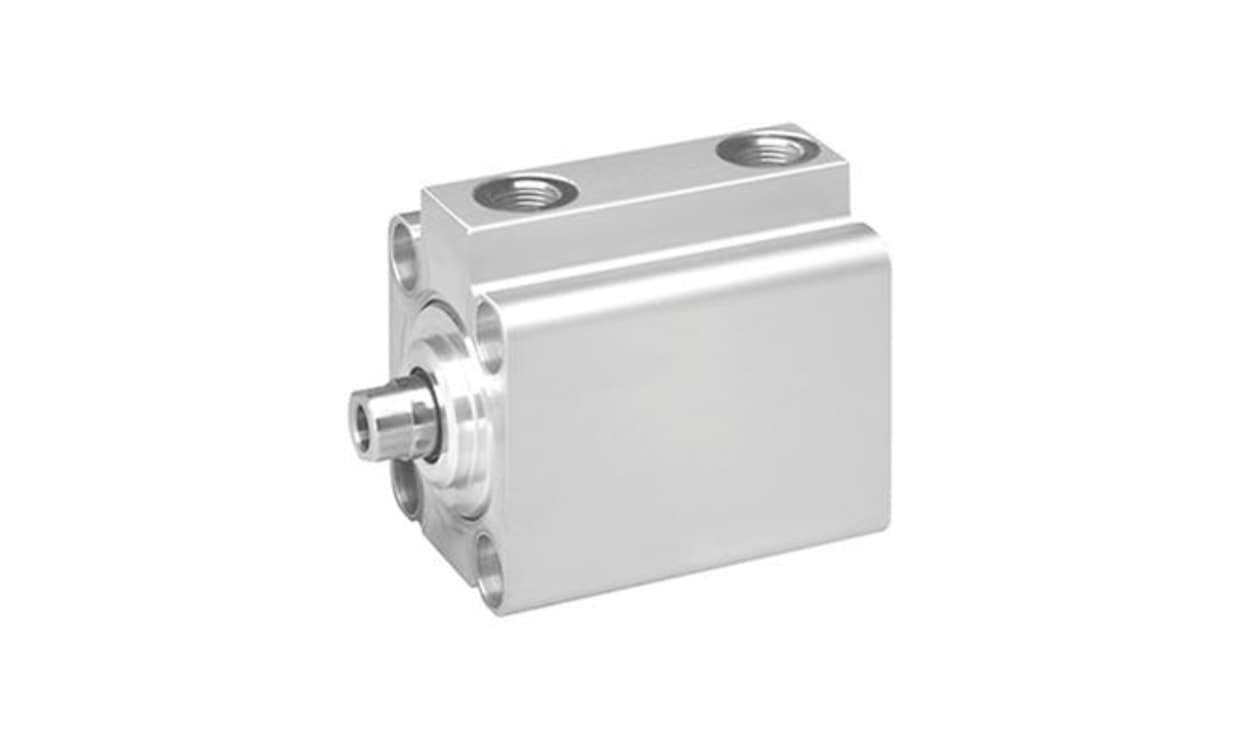

AVENTICS 0822010524 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 25 mm Stroke, KHZ

Name: AVENTICS 0822010524 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 25 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010524
Availability: OutOfStock

Part Number : 0822010524

For applications needing 25 mm of travel, the AVENTICS 0822010524 KHZ piston rod cylinder offers a 20 mm bore, double action and M5 ports, plus a female piston rod thread.

Bore: 20 mm
Stroke: 25 mm
Port connection: M5
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder from the Series KHZ is expertly designed for compact spaces, making it an ideal choice for integration into machinery where installation precision is paramount. With its double-acting functionality, it efficiently manages compressed air to produce reliable and effective motion. This innovative cylinder boasts a lightweight design along with elastic cushioning and a robust frame built from superior materials like aluminium and stainless steel. Its operational range encompasses various industrial requirements, ensuring it can withstand the rigours of everyday use while maintaining peak performance.

Designed for tight installation spaces, enhancing integration versatility
Double-acting mechanism guarantees optimal performance in dynamic environments
Constructed with high-quality materials, ensuring durability and longevity
Environmentally friendly operation with standard ambient and medium temperature capacities
Compact and lightweight design facilitates easy handling and installation
Elastic cushioning technology reduces impact energy, promoting safer operation
Industry-standard specifications cater to a wide variety of applications
Minimal maintenance required due to the absence of a magnetic piston

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010524
Bore	20mm
Action	Double
Stroke	25mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.021 @ 10 mm kg/mm
Test Weight	0.082 kg

AVENTICS 0822010524 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 25 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010524 Datasheet - 0822010524 A700000012571543
