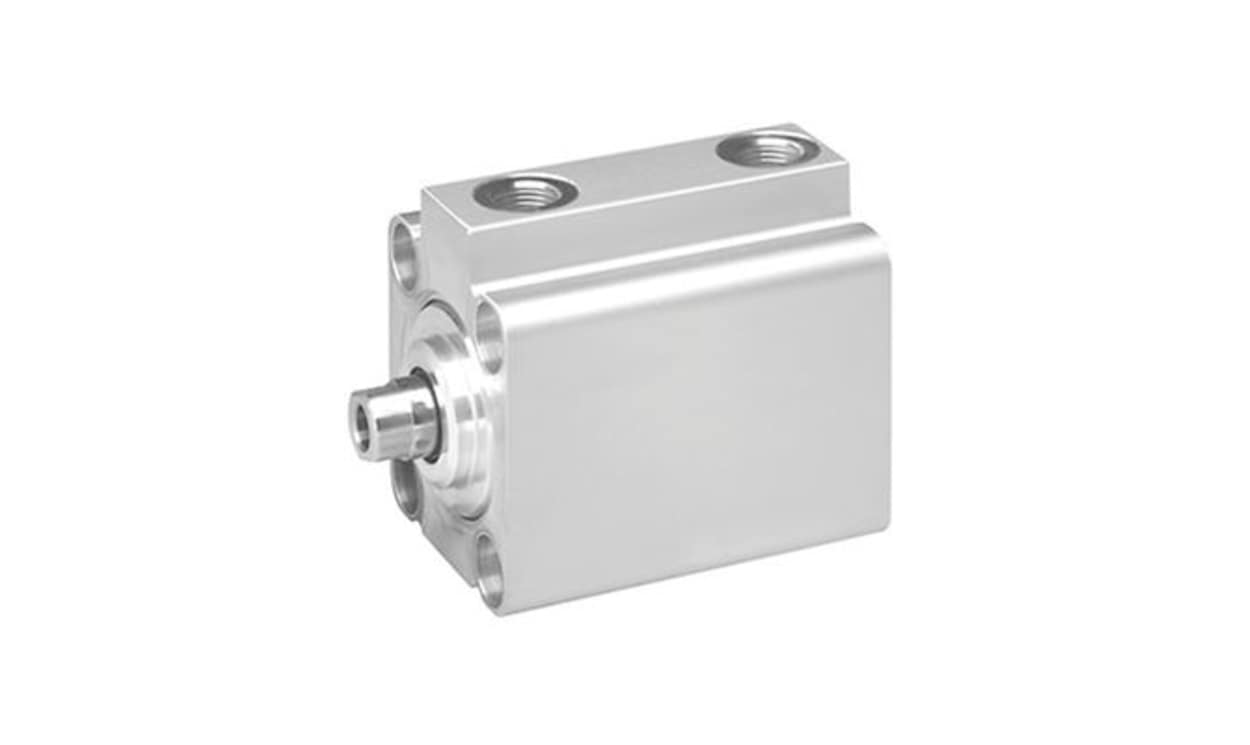

AVENTICS 0822010522 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 15 mm Stroke, KHZ

Name: AVENTICS 0822010522 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 15 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010522
Availability: OutOfStock

Part Number : 0822010522

A 15 mm stroke on a 20 mm bore sets the AVENTICS 0822010522 apart within the KHZ range of double-acting piston rod cylinders. Air enters through M5 ports and the rod end carries a female piston rod thread.

Bore: 20 mm
Stroke: 15 mm
Port connection: M5
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Series KHZ short-stroke cylinder is expertly crafted to fit snugly into confined installation spaces, making it ideal for a variety of industrial applications. This robust double-acting cylinder guarantees seamless integration into existing machinery while enhancing your operational efficiency. With its elastic cushioning and durable construction, it not only delivers powerful performance but also ensures a long service life. Designed for reliability, this cylinder ace in meeting the industry's stringent standards and environmental requirements while providing exceptional piston forces across varying pressures. It's a versatile choice for professionals seeking a dependable and efficient solution tailored to specific operational needs.

Ensures effortless integration into compact machinery designs
Double-acting design provides dynamic power output
Elastic cushioning mitigates impact, prolonging component life
Constructed from robust materials to withstand industrial environments
Capable of operating in a wide range of temperatures
Optimised for minimal maintenance with consistent performance
Ideal for use with compressed air, ensuring reliable functionality
Variety of dimensions available to suit diverse application requirements

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010522
Action	Double
Bore	20mm
Stroke	15mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.021 @ 10 mm kg/mm
Test Weight	0.082 kg
Minimum Operating Temperature	-25°C

AVENTICS 0822010522 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 15 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010522 Datasheet - 0822010522 A700000012571503
