AVENTICS 0821406500 | Pneumatic Guided Cylinder | 6 mm Bore, 5 mm Stroke, MSN

Name: AVENTICS 0821406500 | Pneumatic Guided Cylinder | 6 mm Bore, 5 mm Stroke, MSN
Brand: Aventics
SKU: 0821406500
Availability: OutOfStock

Part Number : 0821406500

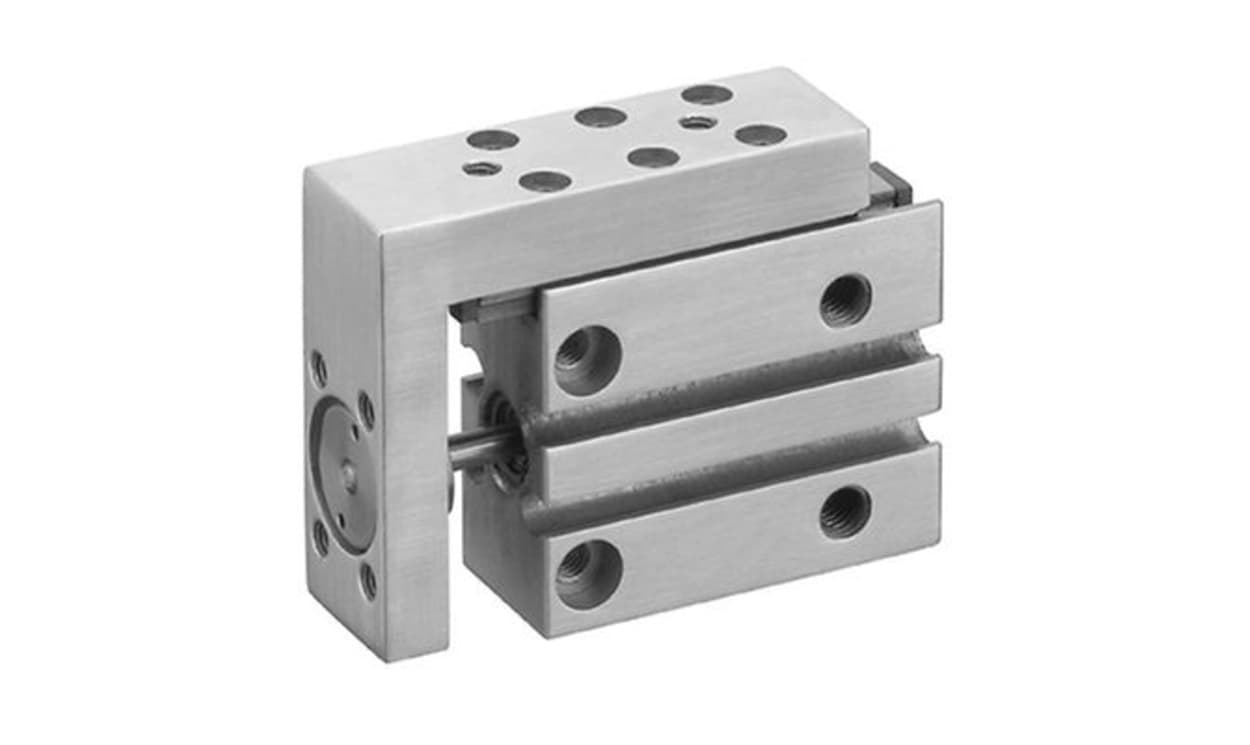

The AVENTICS 0821406500 is a double-acting MSN-series guided cylinder with a 6 mm bore and 5 mm stroke, connected via M5 ports. A piston speed of 500 mm/s is listed.

Bore / stroke: 6 mm / 5 mm
Port connection: M5
Cushioning: elastic
Piston speed: 500 mm/s
Maximum operating pressure: 10 bar
Operating temperature: 0 to +60 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Mini Slide is specifically designed for efficient operation in a variety of applications. Combining a narrow profile with a range of performance features, this product excels in spaces where traditional cylinders may not fit. The use of a magnetic piston ensures consistent performance and precision in control, making it ideal for automation tasks. With its double-acting mechanism, it offers versatile functionality, suitable for both retracting and extracting tasks.

Constructed with anodised aluminium for increased durability
Stainless steel piston rods withstand wear and tear
Cushioning feature provides smooth operation to protect equipment
Operational temperature range allows for adaptability in diverse environments
Low maximum particle size in medium contributes to the longevity of internal components

Brand	AVENTICS
Manufacturer Series	MSN
Model Number p	0821406500
Action	Double
Bore	6mm
Stroke	5mm
Port Connection	M5
Pneumatic Connection	M5
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	0°C
Piston Speed	500mm/s
