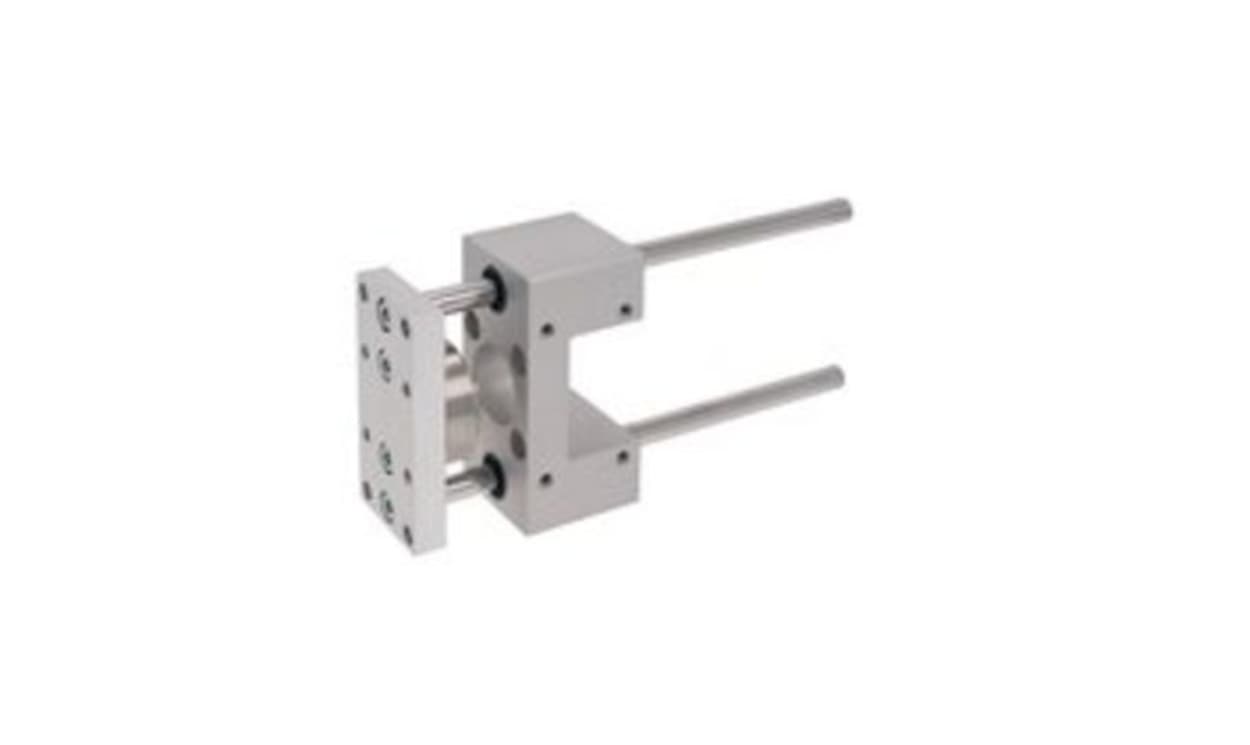

AVENTICS 0821401011 | Slide Unit | for ISO 15552 Standard Cylinders

Name: AVENTICS 0821401011 | Slide Unit | for ISO 15552 Standard Cylinders
Brand: Aventics
SKU: 0821401011
Availability: OutOfStock

Part Number : 0821401011

For ISO 15552 Standard Cylinders, AVENTICS part 0821401011 provides a slide unit from the CG1 series. No stroke, size or load values are listed for 0821401011; confirm them on the datasheet.

Series: CG1
For use with: ISO 15552 Standard Cylinders
Product: slide unit
Part number: 0821401011

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics guide unit, part of the CG1 series, is engineered to deliver precision and reliability for industrial applications. Designed for seamless integration with standard cylinders adhering to ISO 15552, it ensures an optimal performance across various operational contexts. The unit features a robust aluminium bearing housing and sintered bronze bearing type, providing exceptional durability and heat resistance. With a piston diameter of 32 mm and a stroke length of 100 mm, this guide unit is ideal for applications requiring dependable motion control. Designed with temperature fluctuations in mind, it operates efficiently in environments ranging from -20 °C to 80 °C. The guide unit further enhances its reliability through precision-machined components, making it an indispensable choice for industrial automation.

Optimised for use with standard cylinders, ensuring compatibility
Exceptional temperature resilience for varied environmental conditions
Lightweight yet robust design allows for easier installation and handling
Precision-engineered materials minimise wear and extend service life
Versatile application across multiple industrial sectors boosting operational efficiency

Brand	AVENTICS
For Use With	ISO 15552 Standard Cylinders
Manufacturer Series	CG1
