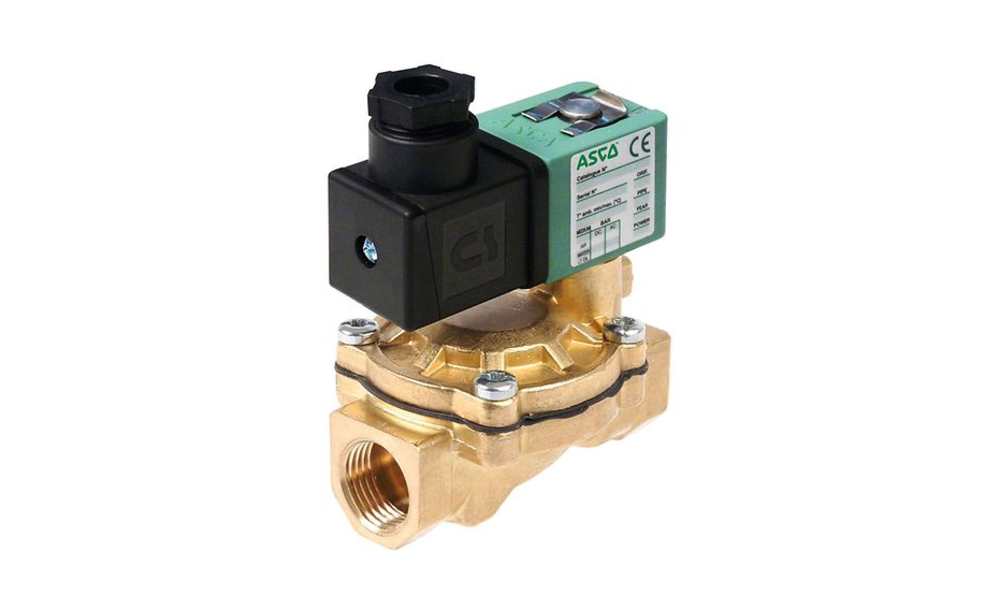

ASCO SCXE238D002.24/DC.22148, Solenoid Valve , 2 port(s) , NC, 48 V, 1/4in

Name: ASCO SCXE238D002.24/DC.22148, Solenoid Valve , 2 port(s) , NC, 48 V, 1/4in
Brand: Asco
SKU: SCXE238D002.24/DC.22148
Availability: OutOfStock

Part Number : SCXE238D002.24/DC.22148

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve exemplifies precision engineering and reliability, catering to a wide array of applications in fluid control. Designed with a 2/2 NC configuration, it allows for seamless pilot operation, making it ideal for controlling water, air, and other inert gases. Built with a robust brass body and stainless steel internal parts, this valve guarantees remarkable durability under various operational conditions. Its versatility is further enhanced by the interchangeable magnetic heads for AC and DC functionalities, adhering to stringent EU directives for safety and performance. With ambient temperature capabilities ranging from -10°C to +60°C, this solenoid valve operates efficiently across diverse environments. Whether for industrial automation or process control applications, this product stands out for its dependable performance and adaptable design.

Incorporates a built-in pilot and floating diaphragm for enhanced operational efficiency
Functions effectively at a minimum pressure differential, ensuring seamless fluid movement
Offers interchangeability with standard electric heads, accommodating both AC and DC power sources
Designed to meet all relevant EU safety and performance directives, ensuring compliance
Can be installed in any orientation, providing flexibility in various setups
Utilises NBR and FPM seal materials for excellent compatibility with various fluids
Features a coil insulation class F rating for durability in electrical applications
IP65 rated for electrical enclosure protection, safeguarding against dust and moisture ingress

Brand	Asco
Supply Voltage	48 V
Number of Ports	2
Connection Size	1/4in
Connection	G 1/4
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	12mm
Body Material	Brass
Series	238
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-10°C
Thread Standard or Connection Type	G
Flow Factor Kv	40L/min
