ASCO SCE238D002.48/DC, Solenoid Valve , 2 port(s) , NC, 48 V, 1/4in

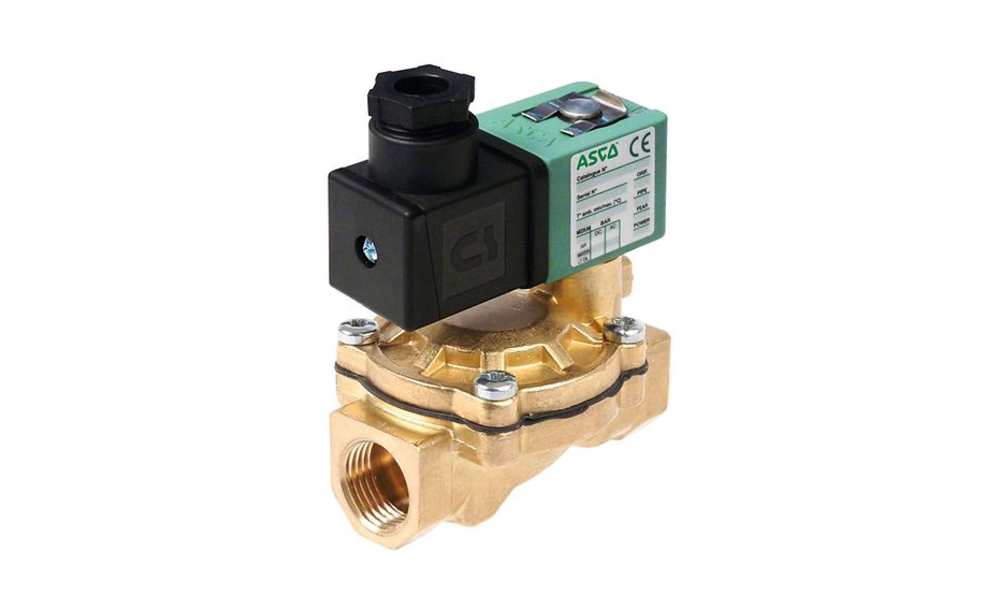

Name: ASCO SCE238D002.48/DC, Solenoid Valve , 2 port(s) , NC, 48 V, 1/4in
Brand: Asco
SKU: SCE238D002.48/DC
Availability: OutOfStock

Part Number : SCE238D002.48/DC

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve from the series 238 is designed to ensure optimal control of water, air, and inert gases in various applications. Its pilot-operated mechanism delivers reliability and performance, backed by a robust construction that includes brass and stainless-steel components. Capable of withstanding ambient temperatures ranging from -10°C to +60°C, this valve is particularly suitable for demanding environments. It features a dual insulation class for electrical safety and a high protection rating against dust and moisture, making it a preferred choice for diverse industrial applications. Ease of installation is further assured through its compatibility with standard pipe threads, allowing for seamless integration into existing systems.

Pilot-operated design enhances performance in automation applications
Dual insulation class ensures electrical safety in varied environments
Robust brass and stainless-steel construction guarantees durability
Wide ambient temperature range permits versatile use across industries
IP65 protection-rated enclosure ensures resistance to dust and moisture
Interchangeable magnetic heads accommodate different electrical requirements
User-friendly installation compatible with standard pipe-thread systems

Brand	Asco
Supply Voltage	48 V
Number of Ports	2
Connection Size	1/4in
Connection	G 1/4
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	12mm
Body Material	Brass
Series	238
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Minimum Operating Temperature	-10°C
Thread Standard or Connection Type	G
Maximum Operating Temperature	+60°C
Flow Factor Kv	40L/min
