ASCO SCE210C493.115/50, Solenoid Valve , 2 port(s) , NC, 115 V, 3/8in

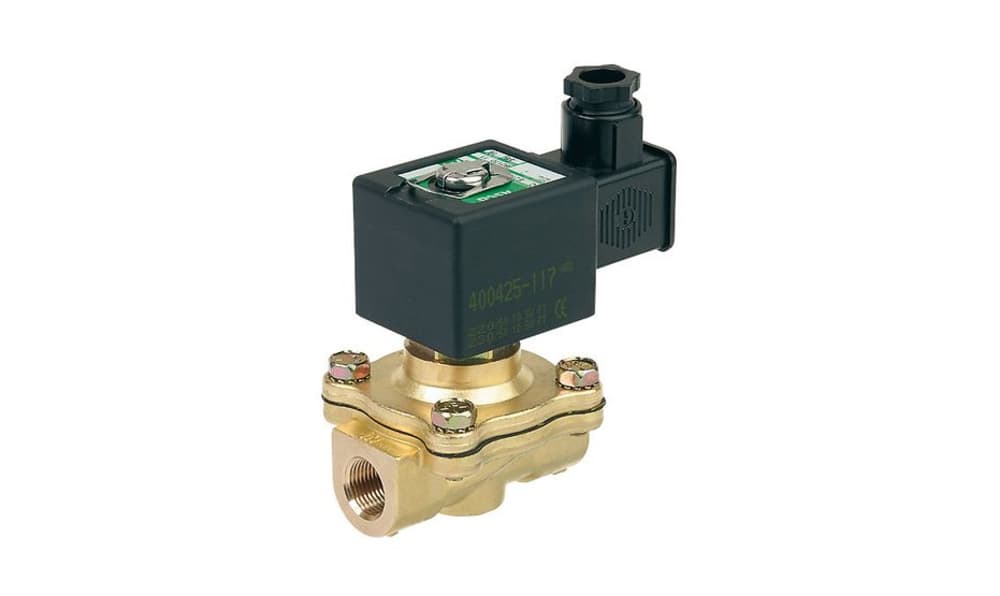

Name: ASCO SCE210C493.115/50, Solenoid Valve , 2 port(s) , NC, 115 V, 3/8in
Brand: Asco
SKU: SCE210C493.115/50
Availability: OutOfStock

Part Number : SCE210C493.115/50

Availability: Sold out

Detailed Description
Specifications

The Asco Solenoid valve is designed for reliability and versatility in fluid control applications. Engineered with a hung diaphragm, this pilot-operated valve excels at managing airflow, inert gases, water, and oil, making it suitable for a range of industrial environments. Its robust construction, featuring a brass body, promises durability even under challenging conditions. With a response time of 15 to 120 ms, the valve ensures efficient operation while adhering to all relevant EU directives, making it a safe and compliant choice. The ability to operate across a temperature range from -20°C to +85°C highlights its adaptability, catering to many process requirements.

Two-way shut-off design for effective control of various fluids
No minimum operating pressure required for reliable functionality
Complies with Pressure Equipment Directive for group 1 and 2 fluids
Satisfies all applicable EU directives ensuring safety and compliance
Constructed with corrosion-resistant materials for enhanced longevity
Optional FPM, EPDM, and CR diaphragms available for specialised applications
Versatile mounting options allow for installation flexibility
Connector designed to accommodate cable sizes for easy integration

Brand	Asco
Supply Voltage	115 V
Number of Ports	2
Connection Size	3/8in
Connection	G 3/8
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	Solenoid
Orifice Diameter	16mm
Series	210
Body Material	Brass
Maximum Working Pressure	16 bar
Operating Temperature Range	-20 → +85 °C
Servo Assist	No
Maximum Operating Temperature	+85°C
Thread Standard or Connection Type	G
Minimum Operating Temperature	-20°C
Flow Factor Kv	43L/min
