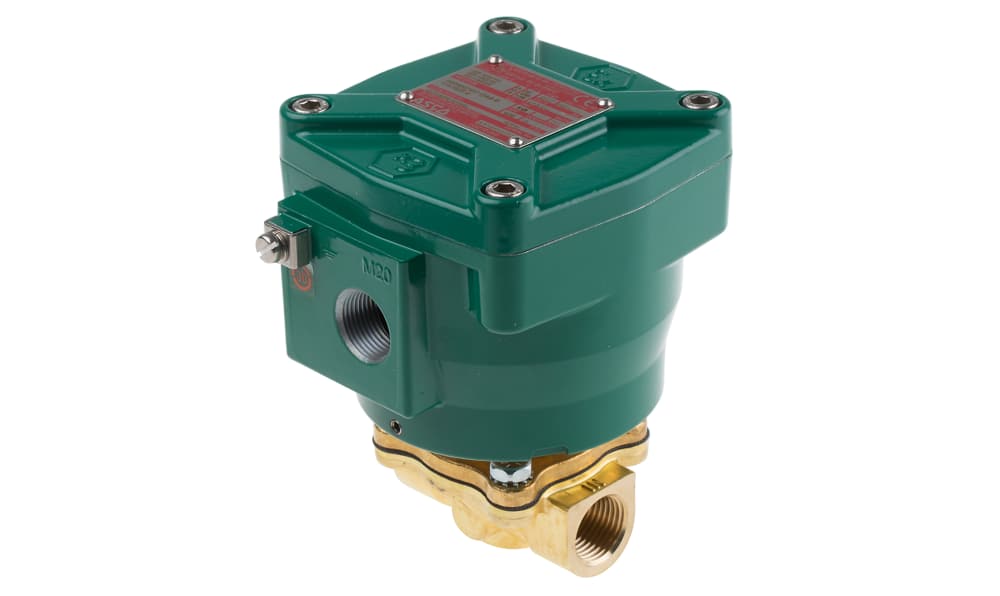

ASCO NFETE210C094/115AC, Solenoid Valve , 2 port(s) , NC, 115 V ac, 1/2in

Name: ASCO NFETE210C094/115AC, Solenoid Valve , 2 port(s) , NC, 115 V ac, 1/2in
Brand: Asco
SKU: NFETE210C094/115AC
Availability: OutOfStock

Part Number : NFETE210C094/115AC

Availability: Sold out

Detailed Description
Specifications

Easy electrical installation by means of a screw terminal coil
Enclosure provided with a 1/2 NPT threaded entry hole (M20 x 1,5 in option) for a broad range of cable entries
A wide range of valves can be supplied with the operator

Brand	Asco
Supply Voltage	115 V ac
Number of Ports	2
Connection Size	1/2in
Connection	1/2 in NPT Female
Operation	Solenoid
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	2/2
Orifice Diameter	16mm
Series	NF
Body Material	Aluminium
Operating Temperature Range	-20 → +85 °C
Connection Gender	Female
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+85°C
Hazardous Area Certification	ATEX
Thread Standard or Connection Type	NPT
Maximum Opening Time	120ms
Flow Factor Kv	3.4m³/h
Maximum Closing Time	120ms
