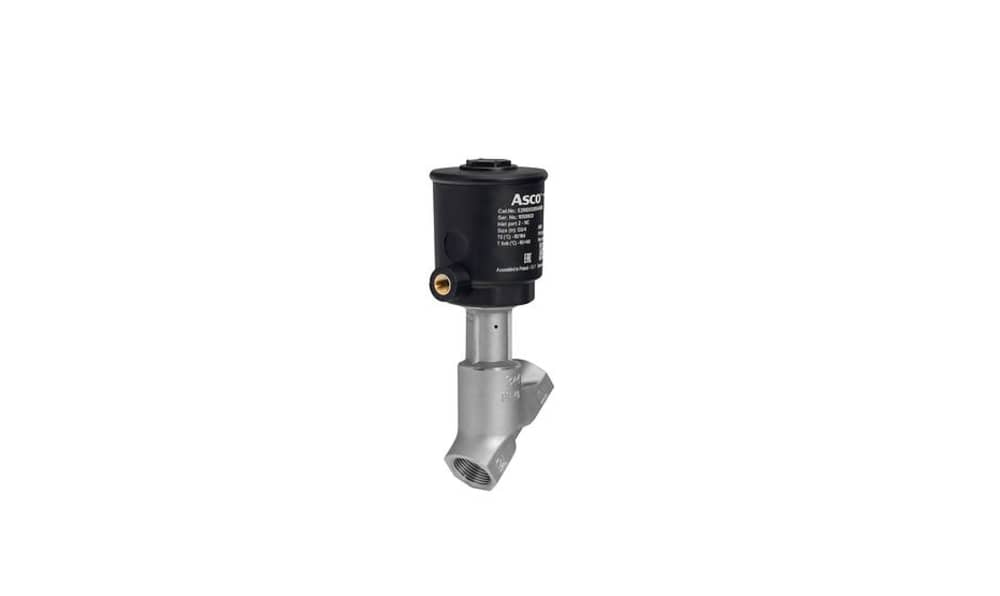

ASCO E290D33T0SA0000, Angle Seat type Pneumatic Actuated Valve, G 3/4in to G 3/4in, 10 bar

ASCO E290D33T0SA0000 Angle Seat Valve – G 3/4 Inch, 10 Bar, Normally Closed ASCO E290D33T0SA0000 Angle Seat Valve G3/4 10 Bar | KSA Product Summary The ASCO E290D33T0SA0000 angle seat valve is a 2-way, normally closed pneumatic valve with G 3/4 inch ports on both ends and a 10 bar maximum working pressure. A stainless steel body and actuator, SIL 2 certification and tight shutoff suit safety-conscious process lines. Pricing is quote-based. Call +966 569 289 544 for a fast quote. Product Description Leaks, slow response and early wear on on-off valves can cost production time. The ASCO E290D33T0SA0000 angle seat valve is designed for 3/4 inch lines operating at up to 10 bar. This is a 2-way, pressure-operated valve. It stays closed at rest and opens when pilot air is applied, making it suitable for applications where flow needs to stop when the air supply is lost. Both the body and actuator are stainless steel, providing a robust construction for industrial machines and manufacturing processes. ASCO states that the design provides high reliability, long service life and tight shutoff. The adjustable actuator provides 360° access to the pilot port, allowing the air connection to be positioned to suit the installation. The valve is certified under PED 2014/68/EU, EN ISO 13849-1 and IEC 61508 (SIL 2). It also complies with REACH, RoHS and EAC requirements. Both ports feature G 3/4 inch parallel threads, suitable for standard BSPP pipework. Key Benefits Normally closed design — flow stops when pilot air is lost. Stainless steel body and actuator for industrial service. Tight shutoff and long service life. Adjustable actuator with 360° pilot port access. Certified to PED 2014/68/EU, EN ISO 13849-1 and IEC 61508 (SIL 2). REACH, RoHS and EAC compliant. G 3/4 inch threads on both ports. Suitable for applications requiring a 10 bar maximum working pressure. Need it on site soon? Call +966 569 289 544 for price and lead time. Who This Product Is Best For Process engineers requiring a normally closed 3/4 inch valve up to 10 bar. Safety-focused projects requiring SIL 2 and EN ISO 13849-1 documentation. Machine builders requiring a stainless steel actuator. Maintenance teams replacing ASCO angle seat valves on existing lines. Buyers in Saudi Arabia sourcing ASCO pneumatic automation components. How It Works At rest, the spring keeps the disc pressed against the seat and the valve remains closed. Pilot air is applied to the actuator, lifting the piston and disc to open the flow path. When pilot air is removed, the spring closes the valve again. The actuator can be rotated to position the pilot port before connecting the control air. Frequently Asked Questions Is the ASCO E290D33T0SA0000 normally open or normally closed? It is normally closed. The valve opens when pilot air is applied to the actuator. What pressure can this valve handle? The ASCO E290D33T0SA0000 has a maximum working pressure of 10 bar. What are the connection sizes? Both ports are G 3/4 inch parallel threads. Which certifications does it carry? It is certified under PED 2014/68/EU, EN ISO 13849-1 and IEC 61508 (SIL 2) and complies with REACH, RoHS and EAC requirements. Should I choose the E290D33T0SA0000 or E290D7350SA0000? Both are normally closed G 3/4 inch valves. The E290D33T0SA0000 is specified for applications up to 10 bar, while the E290D7350SA0000 is specified for applications up to 12 bar. Can I change the position of the pilot port? Yes. The adjustable actuator provides 360° access to the pilot port. How do I order? Call +966 569 289 544 for a quote. Pricing is confirmed by the GeneralTech Shop team.
