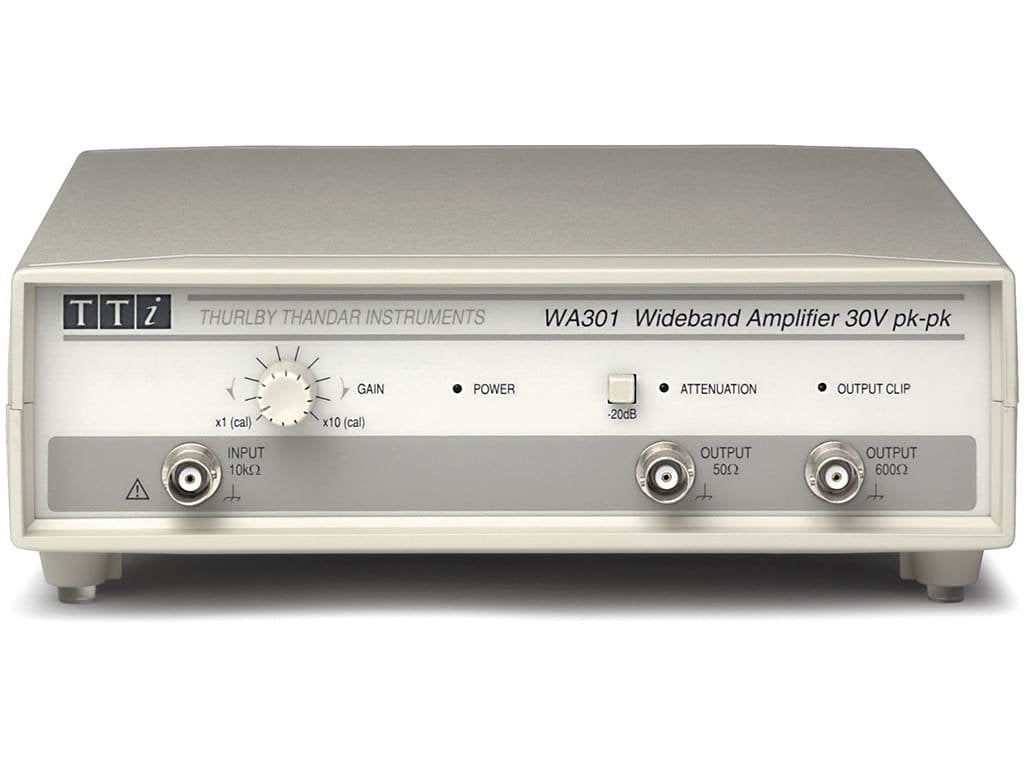

Aim-TTi WA301 | Waveform Amplifier | 30V pk-pk, DC to 1MHz

Name: Aim-TTi WA301 | Waveform Amplifier | 30V pk-pk, DC to 1MHz
Brand: Aim Tti
SKU: WA301
Availability: OutOfStock

Part Number : WA301

The Aim-TTi WA301 is a waveform amplifier that extends the output range of function generators to 30 volts peak-to-peak. With DC to 1MHz bandwidth, a high impedance input and 0dB to +20dB gain, it helps engineers drive loads that need more voltage than a generator alone can provide. Its output is fully protected.

Key features

30V peak-to-peak output swing
DC to 1MHz bandwidth
High impedance input with 0dB to +20dB gain
50 Ohm and 600 Ohm outputs
20dB switchable output attenuator
Fully protected output

Availability: in stock

Free Saudi Arabia shipping available

Detailed Description
Specifications
Features
Downloads

Wideband amplifier

The WA301 is a wideband amplifier designed to be used alongside a function generator when an output voltage of 20 V peak is insufficient. The WA301 enables the output voltage to be boosted to 30 V peak to peak.
Alternatively, this amplifier may be used as a simple wideband amplifier in order to provide a higher output level (DAC, for example).

Aim-TTi RF Amplifier, 20dB Switchable Output, -3dB at 1MHz Bandwidth - WA301

This waveform amplifier is designed to extend the output range of function generators, with a 30 V peak to peak output swing, DC to 1MHz bandwidth, high impedance input, and adjustable gain. It provides both 50 Ohm and 600 Ohm outputs, with a switchable attenuator for versatility in applications.

Features & Benefits

â€¢ The device offers a 30V peak to peak output swing with a DC to 1MHz bandwidth, ensuring versatile signal transmission capabilities
â€¢ Its adjustable gain from x1 to x10 and high impedance input facilitate precise signal processing and reception across various applications
â€¢ With both 50 Ohm and 600 Ohm outputs, it provides flexibility in load requirements, enhancing compatibility
â€¢ Featuring fully protected output to prevent damage, it ensures reliable performance and longevity in demanding conditions
â€¢ Compact and lightweight, it offers portability without compromising functionality, while its wide operating and storage temperature range ensures versatility and reliability, compliant with safety and EMC standards

Applications

â€¢ Boosting function generator output voltage
â€¢ Providing adjustable output levels from fixed sources

Can it extend the output range of function generators?

Yes, it can extend the output range of function generators up to 30V peak to peak.

Will it warn if the output amplitude exceeds Â±15V?

Yes, an "output clip" LED is provided to warn if the output amplitude exceeds Â±15V.

Is it compliant with safety and EMC standards?

Yes, it complies with safety standards EN61010-1 and EMC standards EN63126.

Part Number	WA301
Brand	Aim-TTi
Output Swing	30 V pk-pk
Bandwidth	DC to 1 MHz
Gain	0 dB to +20 dB
Input	High impedance
Outputs	50 Ohm and 600 Ohm
Attenuator	20 dB switchable
Protection	Fully protected output

High impedance input, 0dB to +20dB gain
50 Ohm and 600 Ohm outputs
20dB switchable output attenuator
Fully protected output
Extends the output range of function generators
30 Volts peak to peak output swing
DC to 1MHz bandwidth
