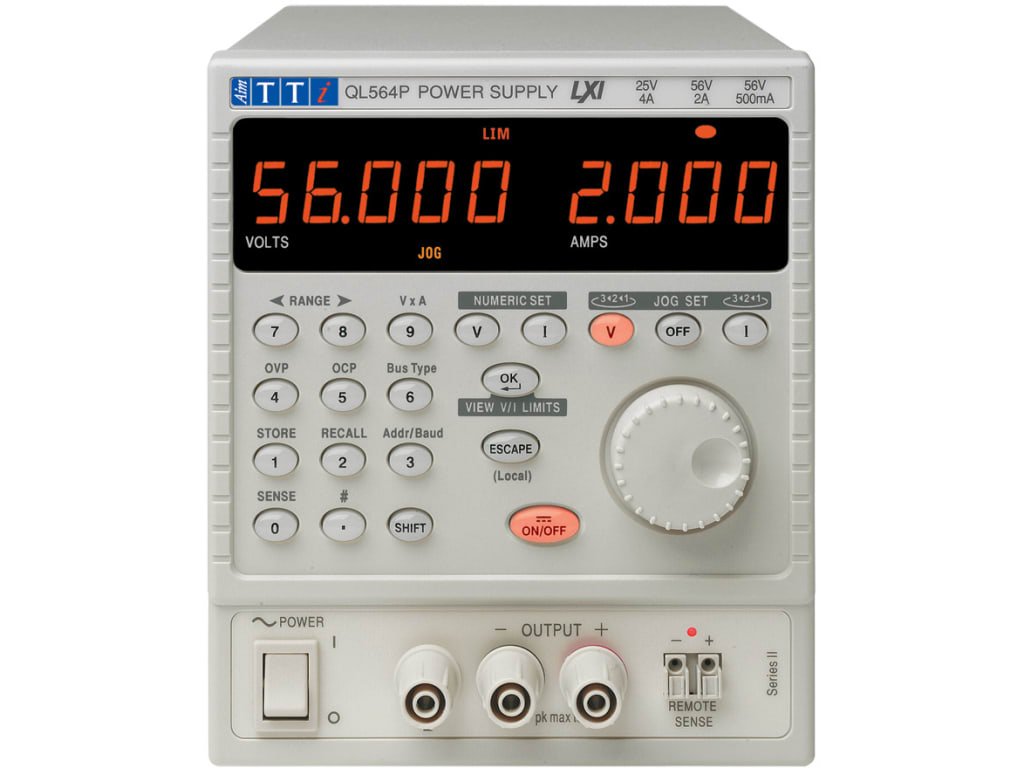

Aim TTi QL564P SII | Linear Regulated Precision Power Supply
The QL Series II is TTi's most recent and high-performance linear regulated power supply series. There are single and triple output models available. Each model is available with or without a digital remote control interface. Each primary output delivers over 100 watts of power, while dual range capability allows for larger currents at lower voltages. On T models, new features include an improved auxiliary output with completely changeable voltage and increased current capabilities, and on all P models, an LXI-compliant LAN interface.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | Single - 140 x 160 (1/3 rack, 4U) x 290mm Triple - 280 x 160 (2/3 rack, 4U) x 290mm (size excludes feet, knobs and terminals). |
Display | Dual digital displays per output using 14mm (0.56�) high brightness LEDs. 5 digits for voltage, 4 digits for current. Update rate 4 per second. |
Operating Temperature | +5oC to +40oC, 20% to 80% RH |
Storage Temperature | -40oC to + 70oC |
Voltage | 230V AC or 115V AC +/- 10%, 50/60Hz Installation Category II |
Weight | Single - 5.5kg (12lb), Triple - 10.5kg (23lb) |
Multiple non-volatile setting memories
OVP and OCP trips with alarm output
Selectable remote sense terminals
Linked-mode operation of main outputs (triple)
Auxiliary output fully variable 1.00V to 6.00V at 3A (triple)
Full control and read-back of all outputs via the bus
LAN interface conforms with LXI class C
Compact modular width for bench or rack, front and rear mounted terminals
1mV resolution at up to 56 volts
Multiple ranges for increased current flexibility
