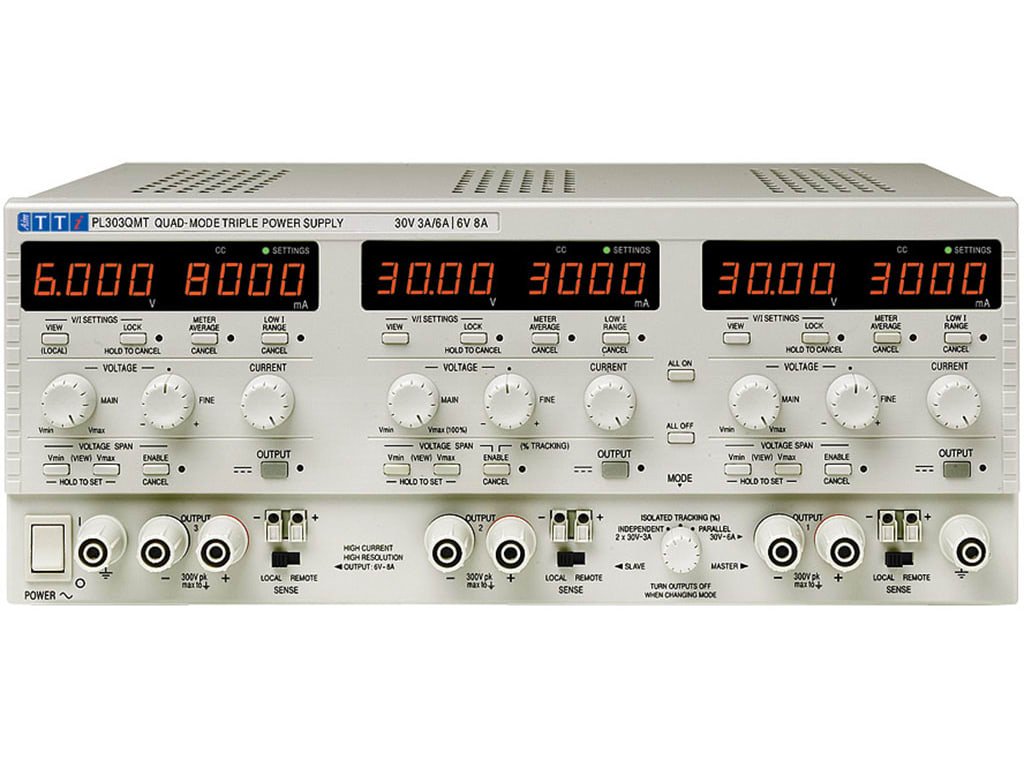

Aim-TTi PL303QMT | Triple Output Linear DC Power Supply | 2 x 30V/3A + 6V/6A, Triple
The Aim-TTi PL303QMT is a triple output linear supply with two 30V/3A outputs plus a 6V/6A output. The high current, low voltage third output can power logic or similar circuits while the two main outputs handle other rails.
Key features
- Two 30V/3A outputs plus a 6V/6A output
- No remote interfaces
- High current low voltage output
- Independent, isolated tracking, ratio tracking and true parallel modes
- Linear regulation with true analogue controls
- S-Lock setting lock and V-Span voltage range customisation
- Low current range and current meter averaging
- Detailed Description
- Specifications
- Features
- Downloads
New PL & New PL-P Series Single, Dual and Triple Output PSUs
Models from 6V/8A up to 60V/1.5A
Linear regulation - for the best performance
Ultra-compact design - uses up less space
True Analog controls - for ease of use
S-Lock function - instantly lock settings
V-Span function - customise the voltage range
Low current range and current meter averaging
DC output switches and 'view limits' button
Selectable remote sense terminals
Independent, Isolated Tracking, Ratio Tracking and True Parallel modes on dual & triple models
High current low voltage output on triple output model
Note
Approvals
Supplied with
Aim-TTi Series PL Bench Power Supply, 228W Power Rating, 0 to 3 A / 0 to 8 A Output Current - PL303QMT
Features & Benefits
• Precise control over current output from 0 to 3A
• Digital interface for easy monitoring and adjustment
• High power rating of 228W for demanding systems
• Linear power supply design for low noise and fast response times
• Binding post terminals for secure and reliable connections
Applications
• Suitable for powering motors and actuators in automation systems
• For powering sensors and control systems in industrial Applications
Can it provide a stable voltage output for delicate electronic components?
Will it work for setting up different voltage ranges for testing purposes?
Is it suitable for use in rack-mounted systems?
| Part Number | PL303QMT |
| Brand | Aim-TTi |
| Outputs | 3 |
| Regulation | Linear |
| Output Rating | 2 x 30V/3A + 6V/6A |
| Interfaces | None |
| Controls | Analogue, S-Lock, V-Span |
| Modes | Independent, isolated tracking, ratio tracking, true parallel |
True Analog controls - for ease of use
S-Lock function - instantly lock settings
V-Span function - customise the voltage range
Low current range and current meter averaging
DC output switches and "view limits" button
Bench System DC Power Supply, Linear Regulation,
Smart Analog Controls Triple Output, 2 x 30V/3A plus 6V/6A, No Interfaces
2x (30V/3A) & 1x (6V/8A) or 1x (30V/6A) & 1x (6V/8A)
PL303QMT Triple Precision DC Bench Power Supplies, 0-30V/0-3A,0-6V/0-8A
Linear regulation - for the best performance
Ultra-compact design - uses up less space
