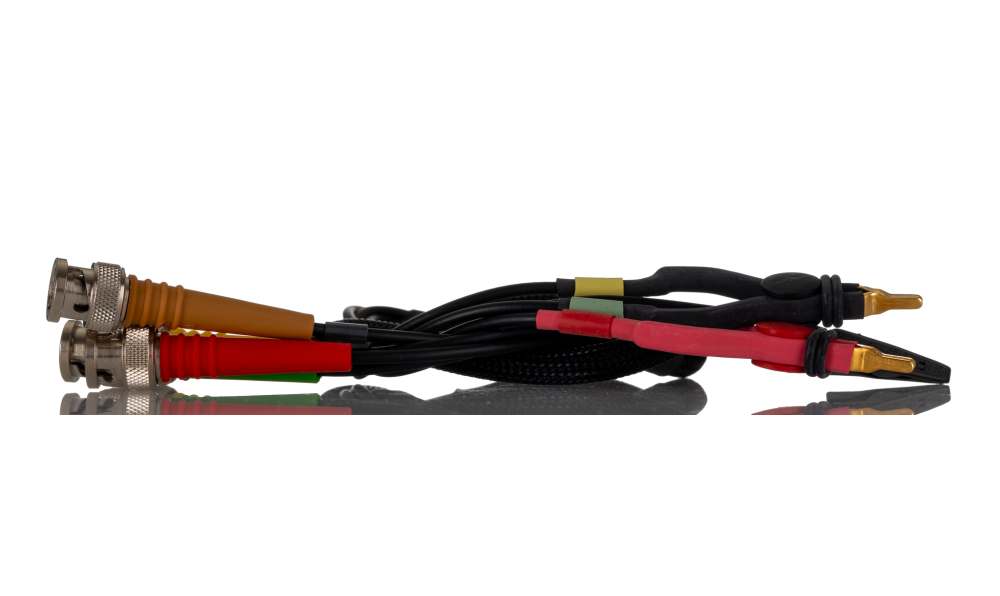

Aim-TTi LCR Meter BNC Interface Module for Use with LCR-400

Name: Aim-TTi LCR Meter BNC Interface Module for Use with LCR-400
Brand: Aim Tti
SKU: LCR-BNC
Availability: OutOfStock

Part Number : LCR-BNC

Availability: Sold out

Detailed Description
Specifications

Aim-TTi LCR Meter BNC Interface Module, For Use With LCR-400 - LCR-BNC

This precision LCR meter BNC interface module by Aim-TTi is a cost-effective solution for accurate component measurement. With a 0.1% measurement accuracy and test frequencies up to 10kHz, this module offers automatic component recognition and dual 5-digit displays. The built-in 4 terminal fixture and RS-232 interface for PC connectivity make it ideal for laboratories and production facilities.

Features & Benefits

• Precision LCR bridge with limits comparator
• Test frequencies up to 10kHz
• Automatic component recognition
• Built-in 4 terminal component fixture
• Dual 5 digit high brightness displays
• RS-232 interface for PC connectivity
• Limits comparator for sorting components
• Optional SMD tweezers and Kelvin clip leads
• Non-volatile memory for quick recall of set-ups
• Comprehensive component sorting capabilities

Applications

• Precision component measurement in laboratories
• Component inspection in production facilities

Can it be used for component inspection purposes?

Yes, the LCR Meter BNC interface module is designed for precision component measurement in laboratories and production facilities.

Will it provide accurate measurements for a wide range of components?

With a measurement accuracy of 0.1% and test frequencies up to 10kHz, this module ensures precise results for various components.

Is the RS-232 interface easy to use for PC connectivity?

The module features an RS-232 interface that allows seamless connectivity to a PC for data logging and instrument set-up storage.

Can it accommodate surface mount components?

Yes, optional SMD tweezers are available for measuring surface mount components with high precision.

Does it offer comprehensive component sorting capabilities?

The LCR Metre BNC interface module provides multiple pass and fail bins for sorting components based on predefined parameters.

Brand	Aim-TTi
Accessory Type	BNC Interface Module
For Use With	LCR-400
