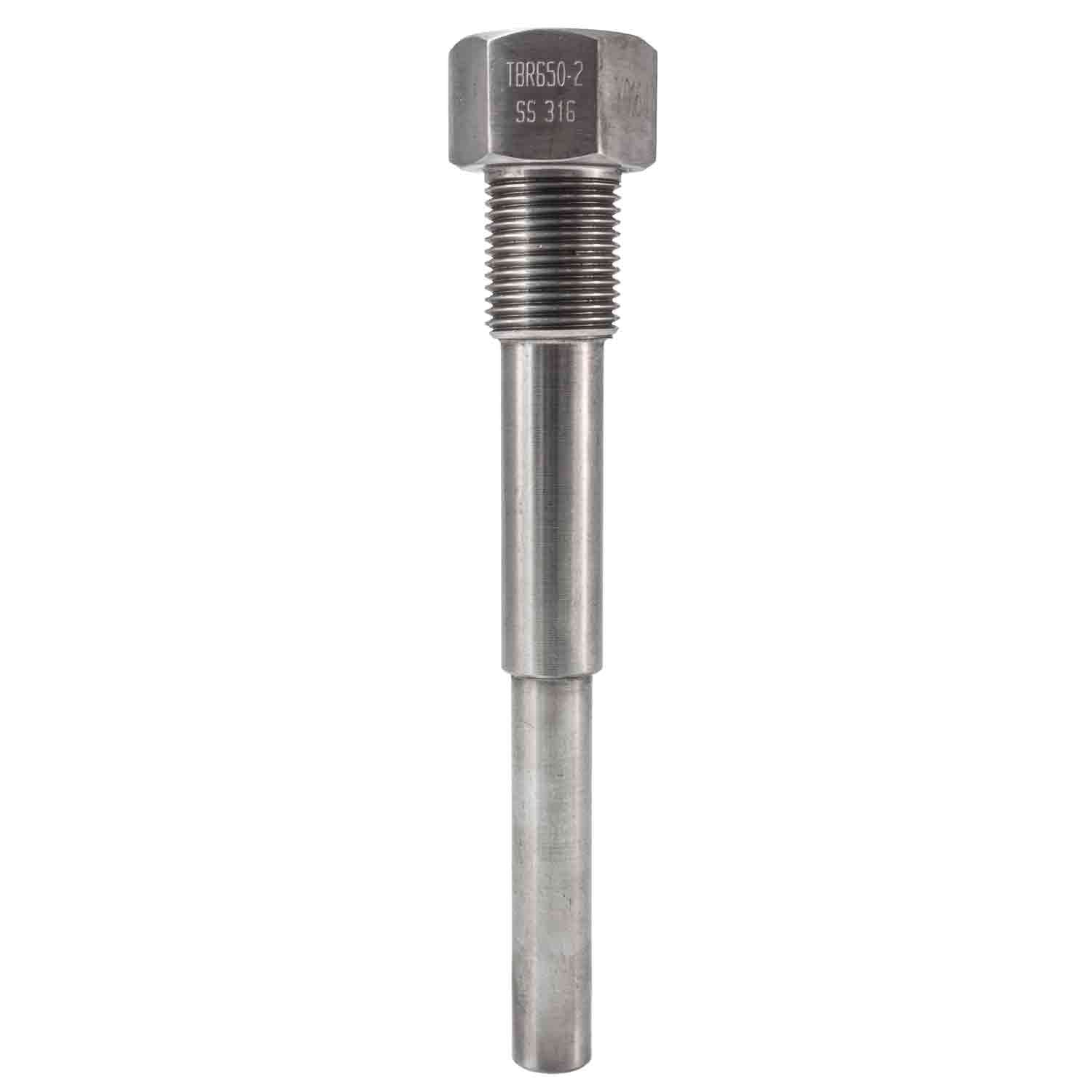

Winters TBR650-2 | Bi-Metal Threaded Thermowell | 1/2" NPT, 316 SS, 5/8" shank, 6" (150 mm) stem
For 6" (150 mm) bi-metal thermometer stems, the Winters TBR650-2 threaded thermowell combines a 5/8" (16 mm) shank, a 4.5" (115 mm) standard insert and a 1/2" NPT connection in 316 SS. The thermometer can be pulled out while the system stays sealed, with no shutdown or draining.
- Suits a 6" (150 mm) stem
- 5/8" (16 mm) shank diameter
- 4.5" (115 mm) standard insert
- 316 stainless steel, 1/2" NPT thread
- Separates the thermometer from the process media
- Specifications
- Features
- Downloads
| Part Number | TBR650-2 |
| Brand | Winters |
| Type | Bi-Metal Threaded Thermowell |
| Connection | 1/2" NPT |
| Material | 316 SS |
| Shank Diameter | 5/8" (16 mm) |
| Standard Insert | 4.5" (115 mm) |
| Stem Type | 6" (150 mm) |
Available in a variety of materials for use in a variety of applications.
• In addition to standard "stepped construction" off ering, a variety of specialised thermowells are available, including straight, tapered, sanitary, and fl anged configurations.
CRN registered
• 5 year warranty
