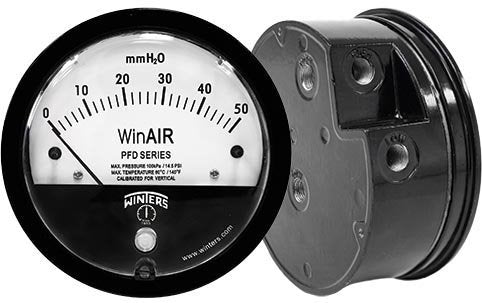

Winters PFD40220C | WinAir Differential Pressure Gauge | 0–1,000 Pa, 4" (100 mm), 1/8" NPTF
Covering 0–1,000 Pa at 2% accuracy, the Winters PFD40220C is a WinAir differential gauge with a 4" (100 mm) white aluminium dial. Use it for low-pressure and differential monitoring of air and non-combustible gases in clean rooms, air handlers, filters, blowers and vacuums.
- Measuring range 0–1,000 Pa; accuracy 2%
- High and low pressure taps of the PFD40220C: 1/8" NPTF, side and back
- The PFD40220C case is aluminium, with black markings on a white dial
- Specifications
- Features
- Downloads
| Part Number | PFD40220C |
| Brand | Winters |
| Series | WinAir PFD |
| Range | 0–1,000 Pa |
| Connection | 1/8" NPTF high & low pressure taps, side & back |
| Dial Size | 4" (100 mm), white aluminium with black markings |
| Accuracy | 2% |
| Media | Air and non-combustible gases |
| Casing Material | Aluminium |
Resistance-free differential gauge for all air and non-corrosive gas installations
• Industrial grade die-cast aluminum case
• Extreme temperature tolerance with o-ring seal
• Easily accessible re-zero adjustment screw
• 2% full scale accuracy*
• 3 mounting adapters with screws included, other mounting access
