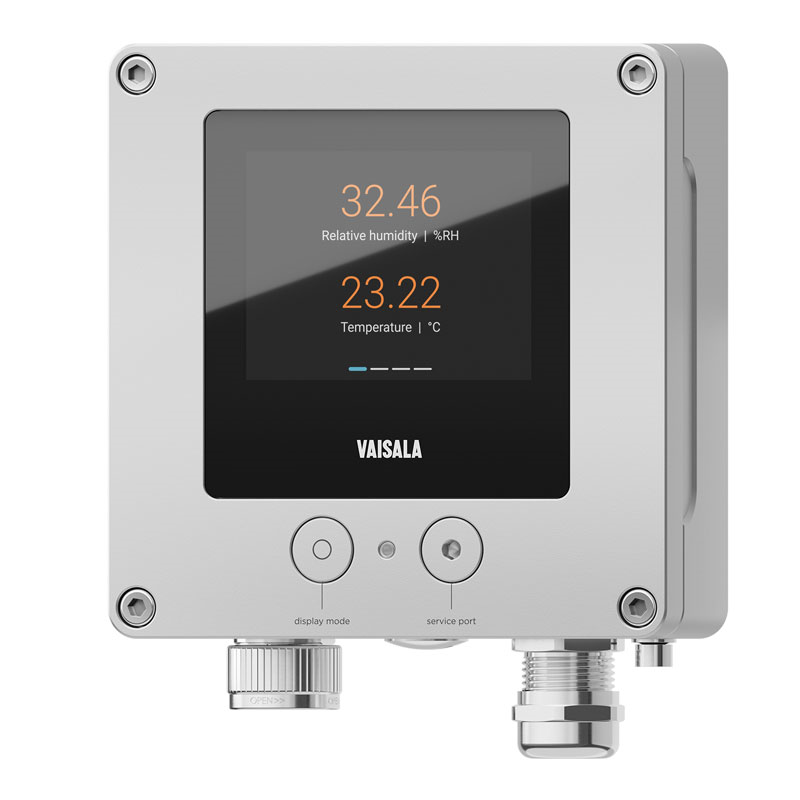

Vaisala Indigo 300 Series Transmitter
The Indigo probes from Vaisala are compatible with the Indigo 300 transmitters. It has a durable, corrosion-resistant housing with a graphical and numerical display. This enables local data visualization and sends data to your PLC or DCS SCADA system via analog signals.
The IP65-rated enclosure of the Vaisala Indigo 300 is made from EN AW-6082. This works well in challenging environments. Various mounting options allow for wall mount or DIN rail installations as well as providing the option for wiring through the back of the device to avoid trailing wires. The device uses Vaisala Indigo compatible probes which can be interchangeable to allow versatile measurements in varying applications.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | 161 x 134 x 43.5mm |
Power Supply | 15-30 V DC, 24 V AC 50/60 Hz |
Protection | IP65 |
Temperature Range | -20¦+60°C |
Weight | 1.2kg |
Vaisala Indigo 300 Specifications
- Suitable for operating temperatures -20…+60°C (Fluidic recommend, and can supply, sunshields for outdoor use)
- 15-30 V DC, 24 V AC 50/60 Hz Power Supply (suggested 2.5A fuse size)
- Up to 3x analogue outputs, mA and Voltage options
- Dimensions: 161 x 134 x 43.5mm (weight: 1.2kg)
- Works with Vaisala Indigo probe line (listed below)
- Provides local indication and an analogue output (e.g 4-20mA) for your control system
- IP65, robust EN AW-6082 enclosure
- Secure service port hidden under 4mm allen key plug
- Compatible with Vaisala Insight PC software
- Can be calibrated with Vaisala Indigo80 Handheld Indicator
Indigo-compatible Probes
- Dew point : DMP5, DMP6, DMP7, DMP8
- Vaporized hydrogen peroxide : HPP271, HPP272
- Moisture in oil : MMP8
- RH&T: HMP1, HMP3, HMP4, HMP5, HMP7, HMP8, HMP9
- Temperature : TMP1
- CO2: GMP251, GMP252
