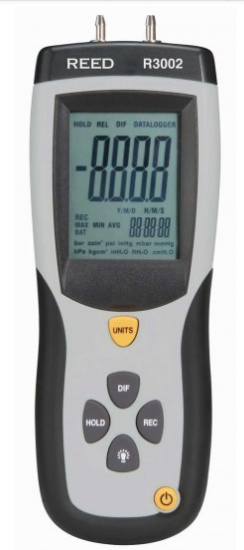

REED R3002 | Digital Differential Pressure Manometer | 5 psi, USB Software
The REED R3002 digital manometer measures gauge and differential pressure up to 5 psi and displays results in 11 units of measure. An integrated clock time-stamps measurements, and recorded data can be reviewed with the included software over USB.
- Backlit 4-digit LCD
- USB cable and software included
- Auto shut-off after 20 minutes
- Operating range 32 to 122°F (0 to 50°C)
- CE marked; 210 x 75 x 50 mm, 280 g
- Specifications
- Features
- Downloads
| Part Number | R3002 |
| Brand | REED |
| Display | 4-digit, LCD Display |
| Operating Humidity Range | 10-80% |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| PC Connectivity | USB Cable (Included) |
| Pressure Range | 5 psi |
| Units | 11 |
| Auto shut-off | Yes (after 20 mins) |
| Software | Yes (included) |
| Dimensions | 8.2 x 2.9 x 1.9" (210 x 75 x 50mm) |
| Product Certifications | CE |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Weight | 9.8oz (280g) |
- Dual LCD simultaneously displays pressure, air velocity or airflow with temperature
- Measures gauge and differential pressure up to 5psi
- 11 selectable units of measure: psi, inH2O, bar, mbar, kPa, inHg, mmHg, ozin², ftH2O, cmH2O, kgcm²
- Max, Min, Avg, Relative and Data hold functions
- Integrated real-time clock time-stamps measurements
- Easy-to-read backlit LCD display
- Zero button for offset correction or measurement
- USB interface and software included
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
