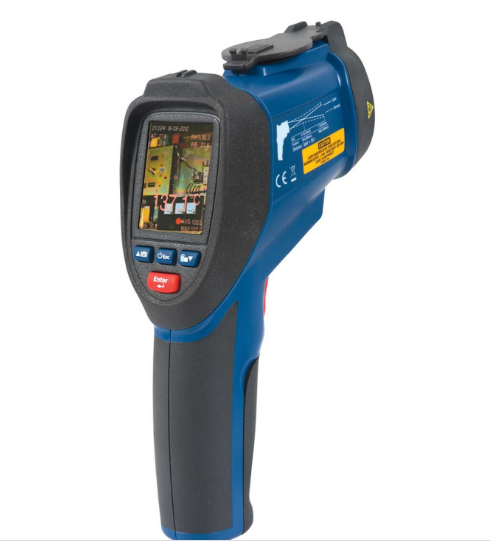

REED R2020 | Video Infrared Thermometer | 50:1, up to 2200°C (3992°F)
The REED R2020 combines an infrared thermometer with a digital camera, measuring up to 2200°C (3992°F) at a 50:1 distance-to-spot ratio. It also gives ambient temperature, humidity, dew point and wet bulb readings, and can be tripod-mounted to monitor continuously with an on-screen live graph.
- 50:1 distance-to-spot ratio
- Built-in digital camera
- Ambient temperature, humidity, dew point and wet bulb
- Adjustable emissivity 0.1 to 1.0
- 72 MB memory plus micro SD
- Rechargeable Li-ion battery
- Specifications
- Features
- Downloads
| Part Number | R2020 |
| Brand | REED |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Battery Life | Approx. 4 hours continuous use |
| Spectral Response | 8 to 14µm |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Power Supply | Li-Ion rechargeable battery |
| Max/Min | Yes |
| Distance-to-Spot Ratio | 50:1 |
| Laser Class | Class II |
| Internal Memory | Yes (72mb), Expandable with micro SD card |
| Tripod Mount | Yes |
| Camera | Built-in digital camera |
| Additional Measurements | Ambient temp, humidity, dew point, wet bulb |
- Dual lasers assist with target area identification
- 50:1 distance to spot size ratio
- Take photos and record video with built-in camera
- Datalogging capabilities include on-screen graphing with time and date stamp
- Digitally adjustable emissivity
- Type K thermocouple input for contact measurement
- Ambient air temperature, humidity, dew point and wet bulb temperature measurement
- Max, min, avg and differential readings
- High and low alarms
- Trigger lock feature for continuous monitoring
- Export data to PC with included USB cable (no software required)
