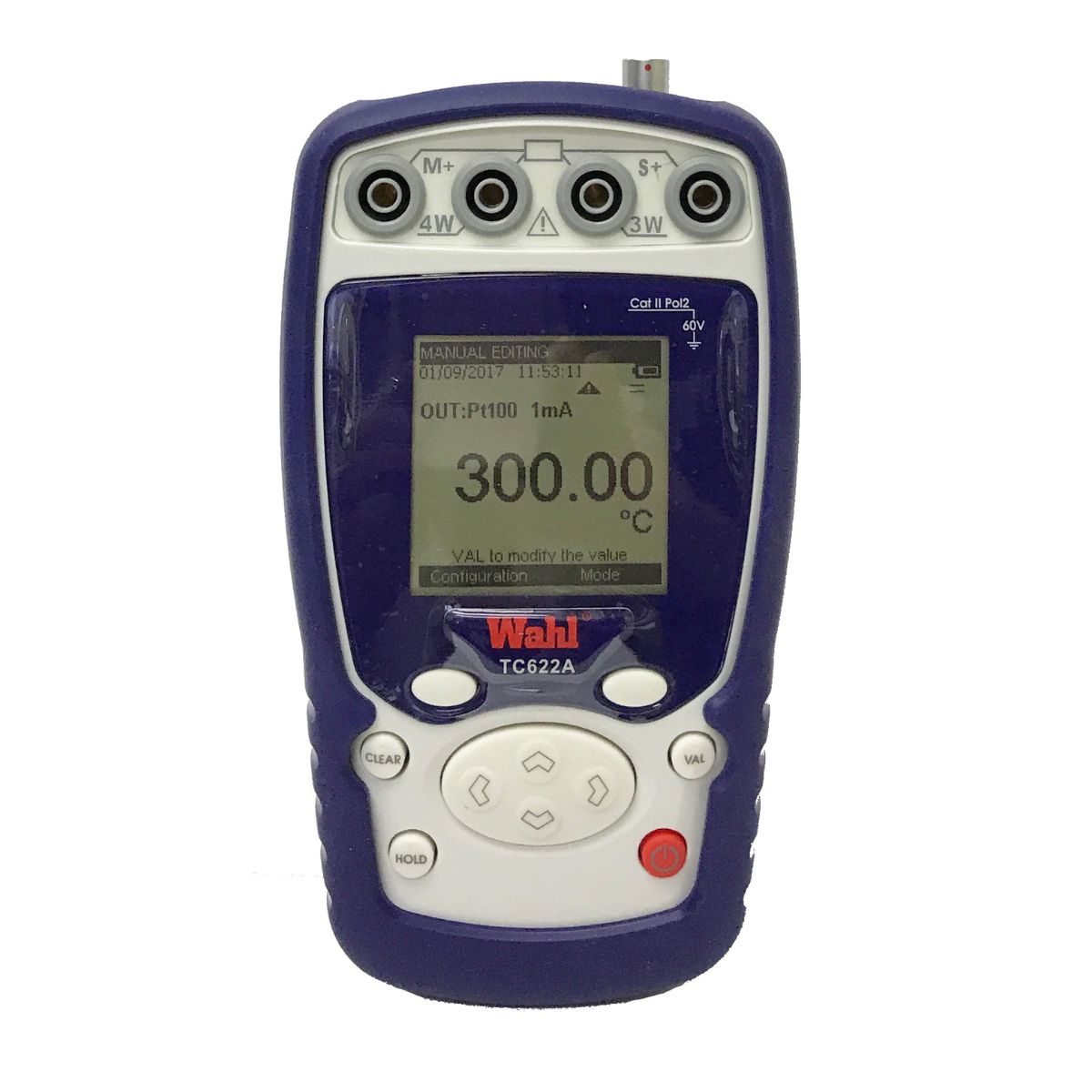

Palmer Wahl TC622A | Pocket RTD Calibrator | 12 RTD types, 0.02% of reading
Part Number : TC622A

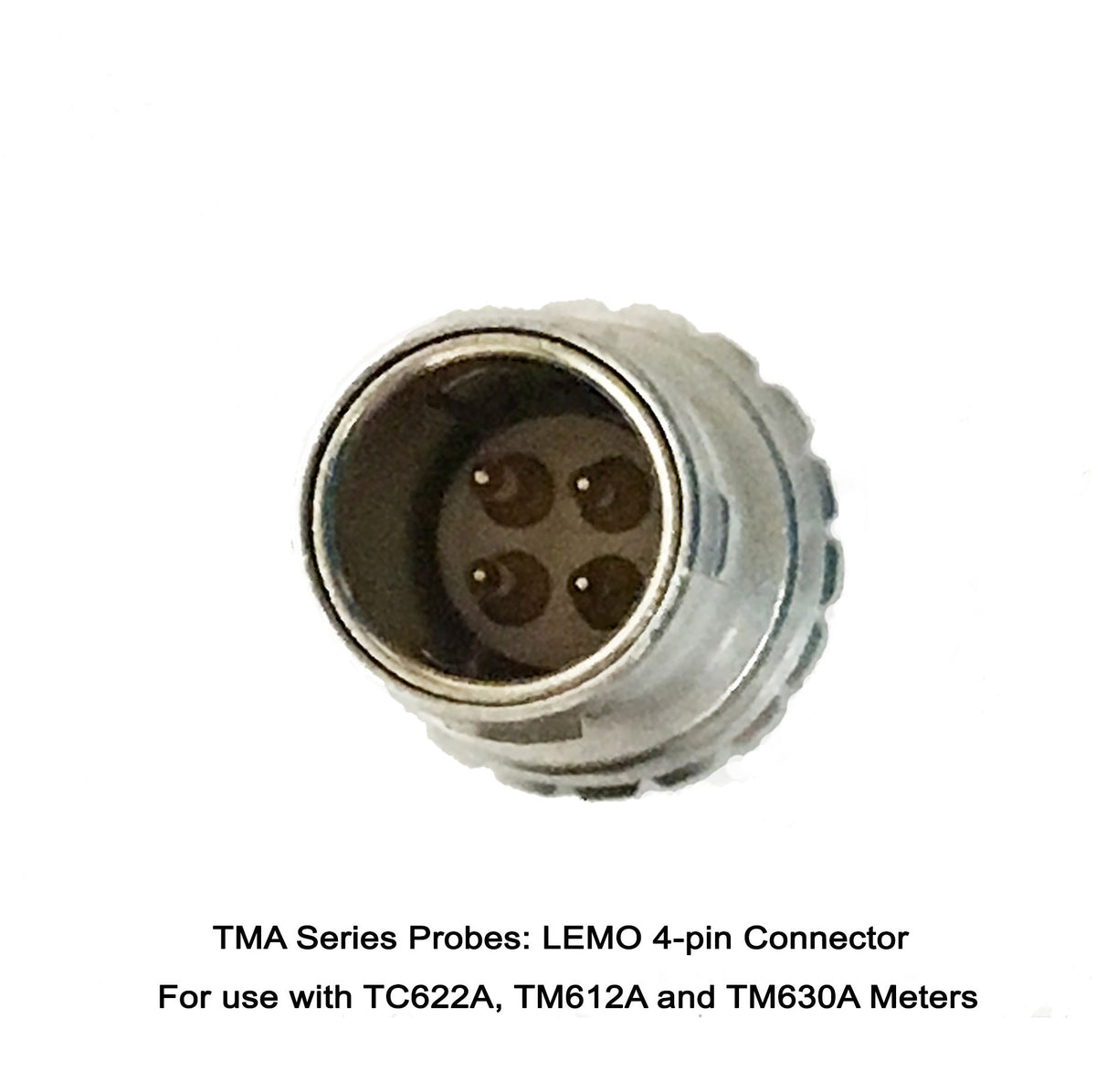

The Palmer Wahl TC622A is a pocket RTD calibrator that measures or simulates 12 RTD types and resistance at 0.02% of reading. It replaces the earlier TC622 and has a LEMO 4-pin connector that accepts Palmer Wahl TMA series handheld RTD probes. Two sets of test leads are supplied; two sets of 12436-16 leads are needed for 3- or 4-wire measurements. IP54 protection makes it suitable for site work.
Key features
- Pt50, Pt100, Pt200, Pt500, Pt1000, Ni and Cu RTD types
- Resistance ranges 400 Ω and 3600 Ω in, with 2, 3 or 4-wire auto detection
- Temperature coefficient as low as 7 ppm/°C
- 10,000-value memory and USB port
- Ramps, steps, synthesizer, square root and statistics
Supplied with four AA alkaline batteries, protective boot, wrist strap and carrying case.
For pricing, please contact our experts.
