Palmer Wahl RTC822L | Heavy Duty Z-Tip Surface Probe | 2.25 in, to 1500 °F

Part Number : RTC822L

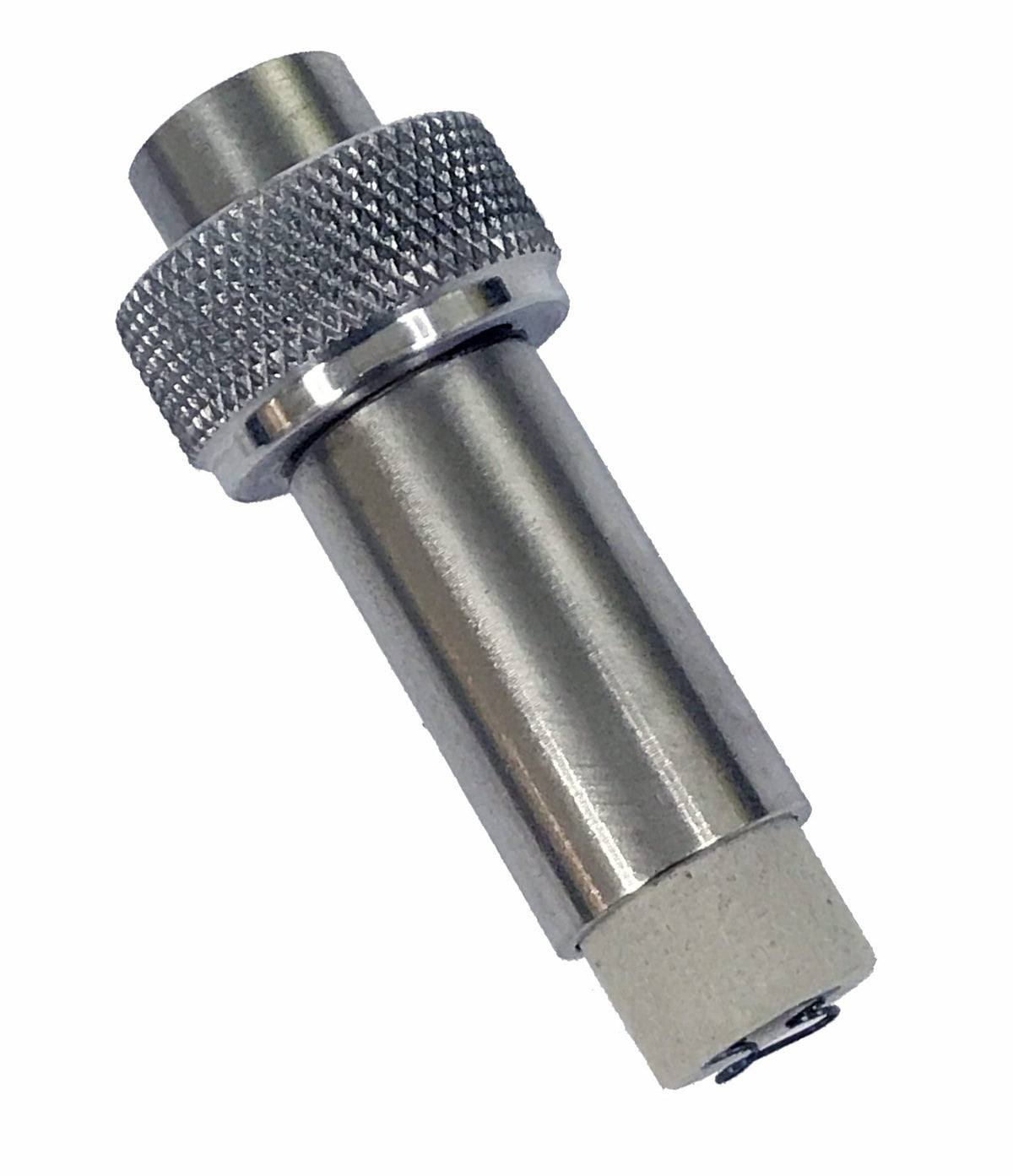

Palmer Wahl RTC822L is the heavy duty, longer version of the Z-Tip fast response surface probe. Its tip is 2.25 in long and 0.5 in in diameter, and it is rated to 1500 °F (815 °C), higher than the standard RTC822. It is intended for clean surfaces such as moulds, platens, dies, bearings and glass, and is used with the TC829 series extension handle.

Key features

Heavy duty Type K Z-Tip sensor
2.25 in tip length, 0.5 in diameter
Rated to 1500 °F (815 °C)
5 second response on a clean hot plate
For moulds, platens, dies, bearings and glass

Availability: in stock

Specifications

Part Number	RTC822L
Brand	Palmer Wahl
Sensor Type	Type K thermocouple
Style	Heavy duty surface, Z-Tip
Tip Length	2.25 in
Tip Diameter	0.5 in
Temperature Rating	To 1500 °F (815 °C)
Response Time	5 s (clean hot plate)
Handle	Uses TC829 Series handle
