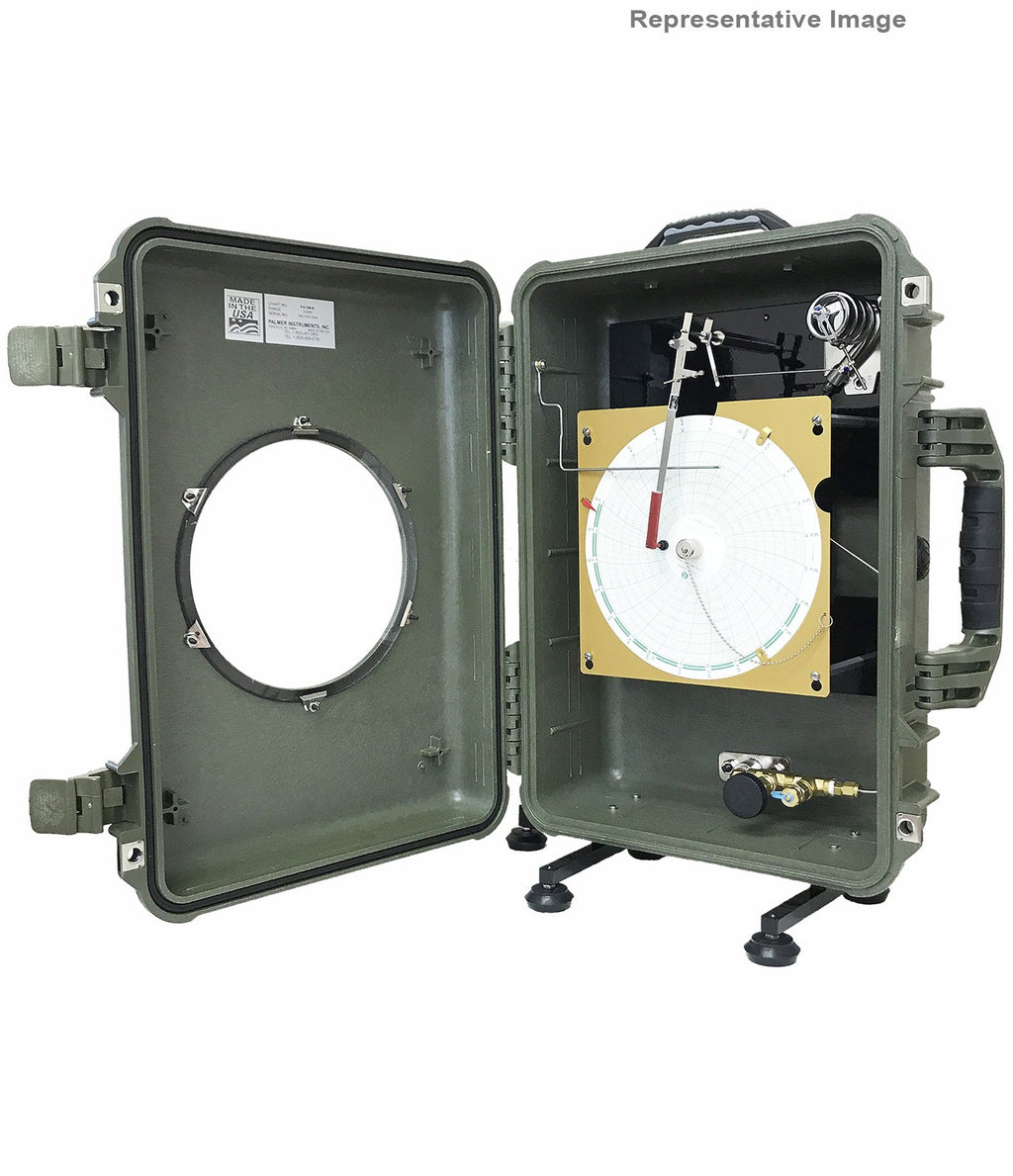

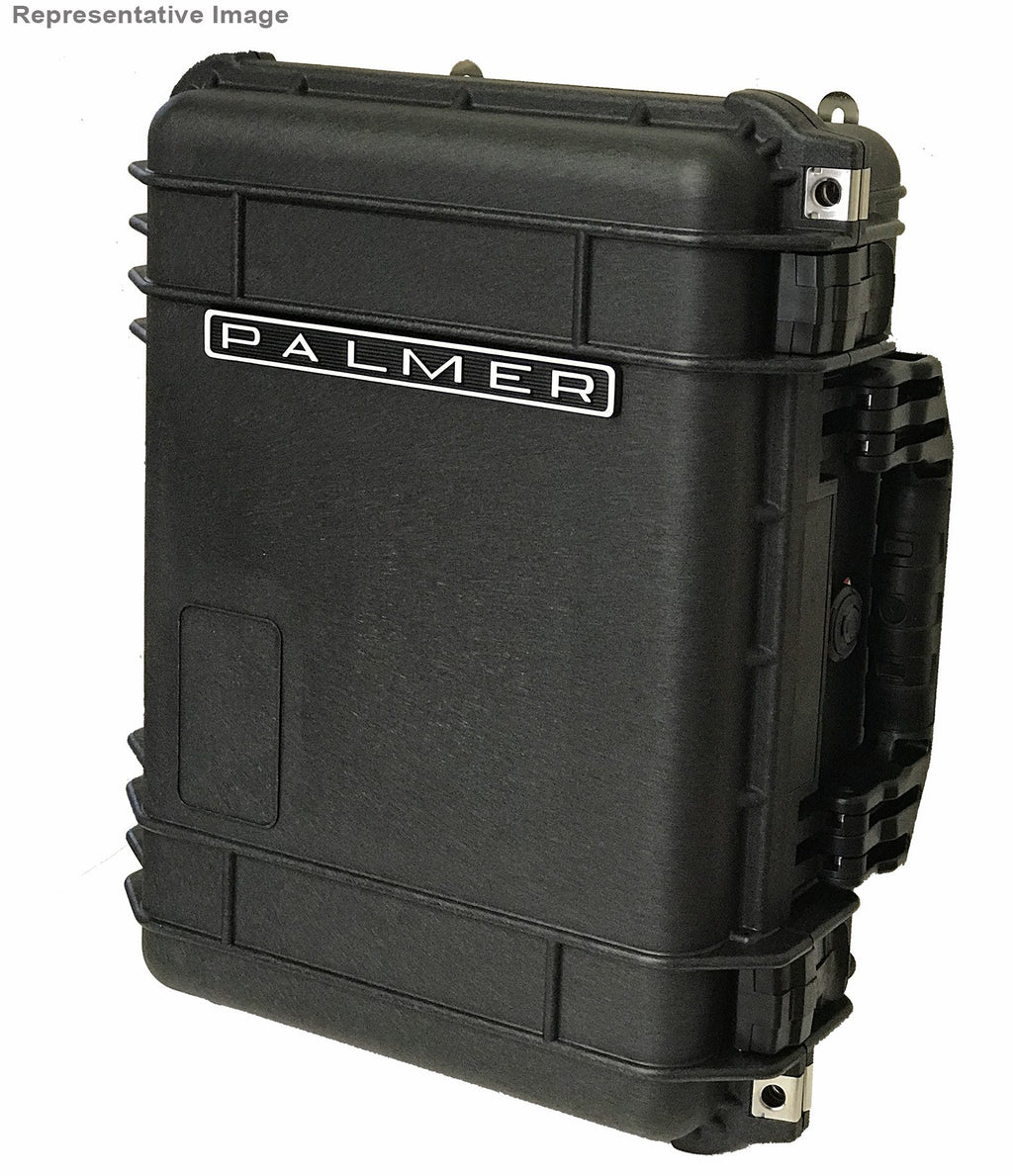

Palmer Wahl 4P_Recorder | Pelican Case Pressure Recorder with Valving and Test Ports | 8 in
Part Number : 4P_Recorder
The Palmer Wahl 4P_Recorder is an 8 in mechanical pressure chart recorder in a Pelican case, fitted with inlet shut-off valves and internal test connections. One or two 316 stainless steel pressure inlets can each be isolated from the source, while test ports threaded for a gauge or Pete's Plug allow each pressure to be checked independently. The lightweight, crush resistant case suits recording on temporary job sites.
Key features
- Dust-proof Pelican case with O-ring seal and pressure equalisation valve
- Field-replaceable 316 SS elements: bellows to 30 psi, helical coil to 10,000 psi, Bourdon tube above
- Covers 0-1 psi to 0-30,000 psi, with inH2O, oz/in², kPa and bar scales also offered
- Wall, flush, pipestand, portable or pedestal mounting
- PC-11 or PC-12 battery drives, 30 minutes to 32 days
- Black, orange or yellow case
For pricing, please contact our experts.
