Palmer Wahl 1P_1R_Recorder | Pelican Case Pressure Circular Chart Recorder | 8 or 12 in
Part Number : 1P_1R_Recorder

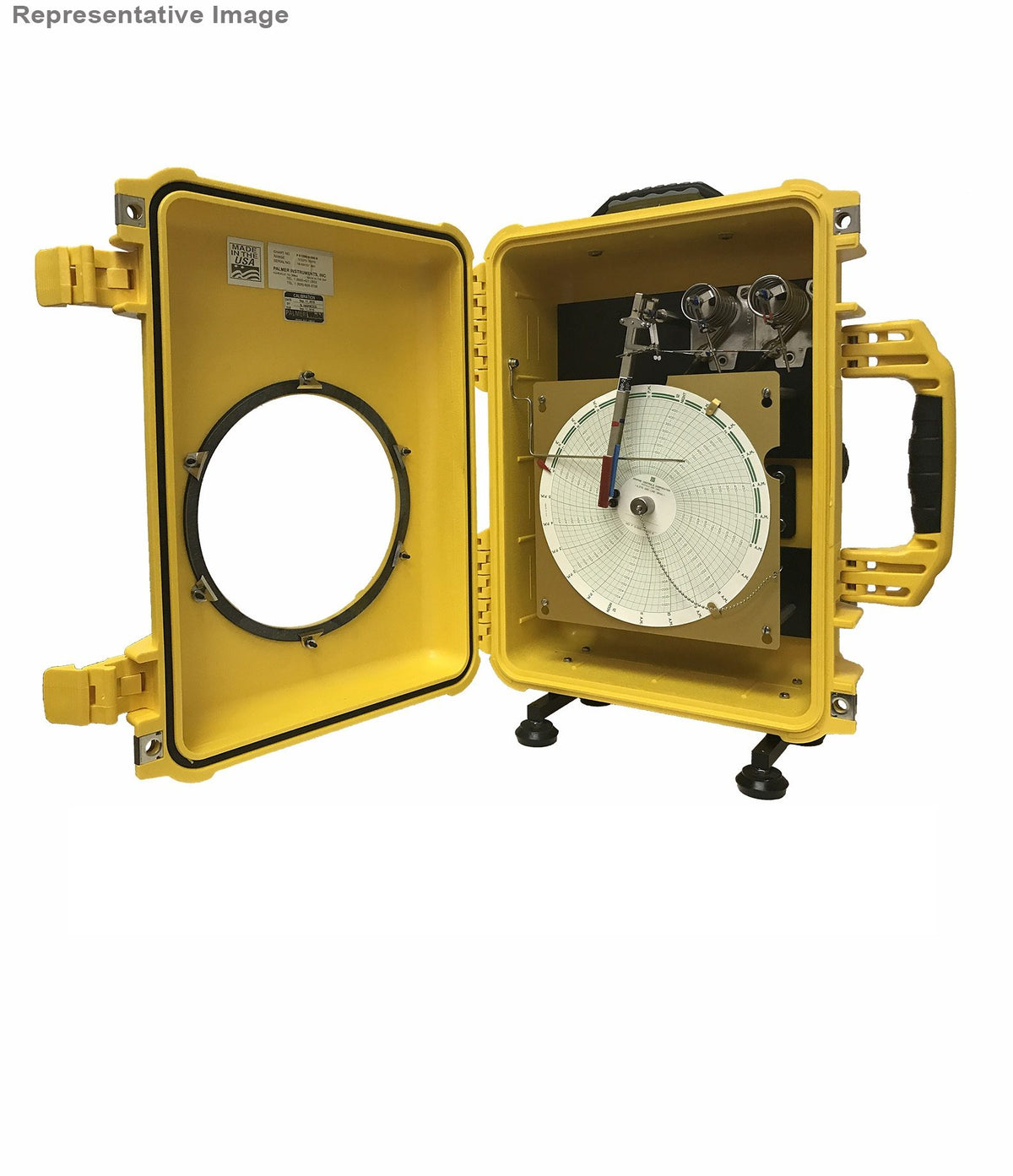

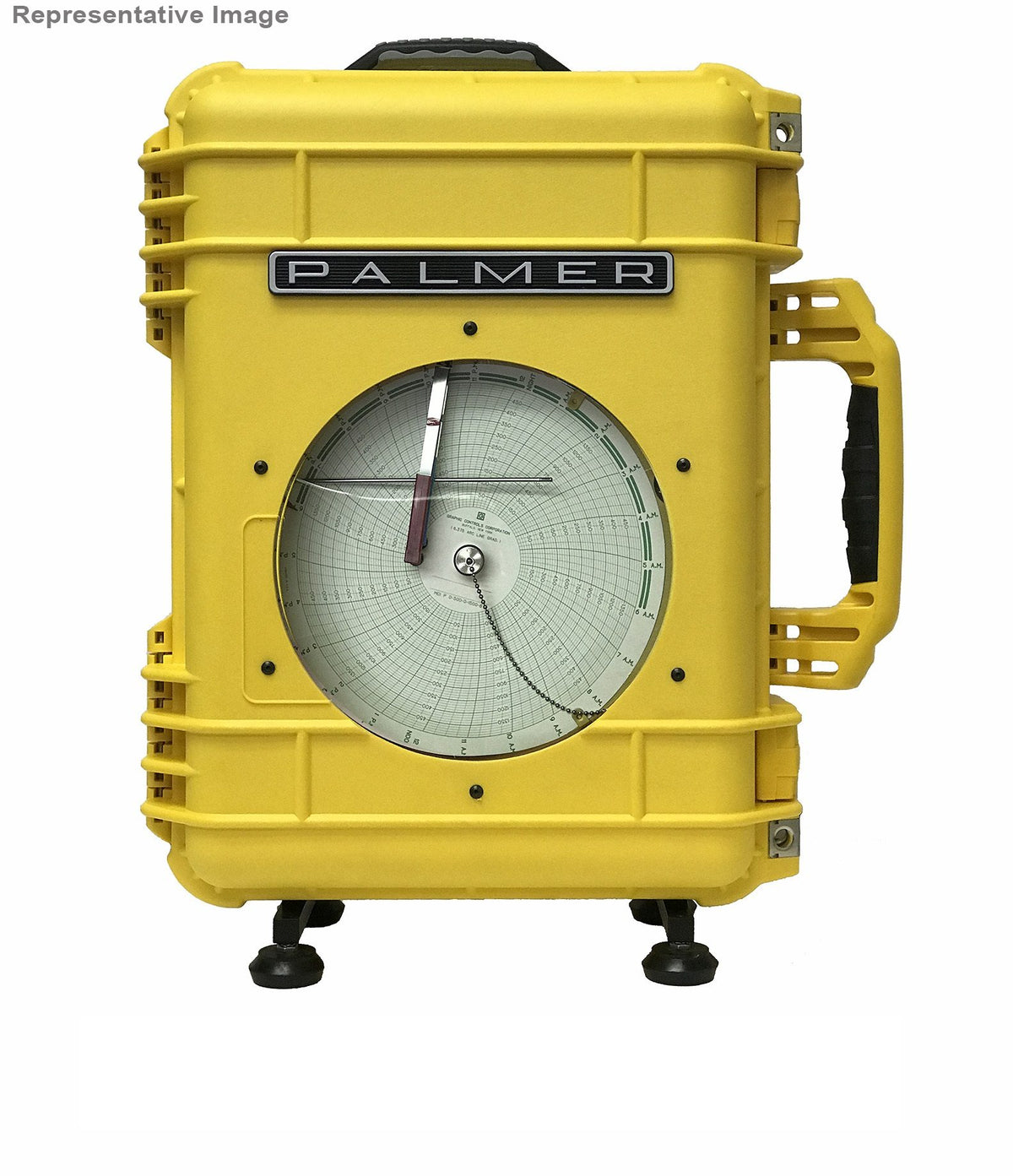

The Palmer Wahl 1P_1R_Recorder houses a pressure-only circular chart recorder in a Pelican case, for 8 in or 12 in charts. The case is crush resistant and dust-proof, with double throw latches, a watertight O-ring seal and an automatic pressure equalisation valve, and a plexiglass window is standard. One, two or three pens can be fitted, each with a field-replaceable 316 stainless steel element, making it a lightweight recorder to carry between job sites.
Key features
- Ranges from 0-1 psi to 0-30,000 psi, plus inH2O, oz/in², kPa and bar
- Bellows elements to 30 psi, helical coil to 10,000 psi, Bourdon tube above
- Safety glass window required for 15,000 psi and higher ranges
- Portable, pipestand or wall mounting

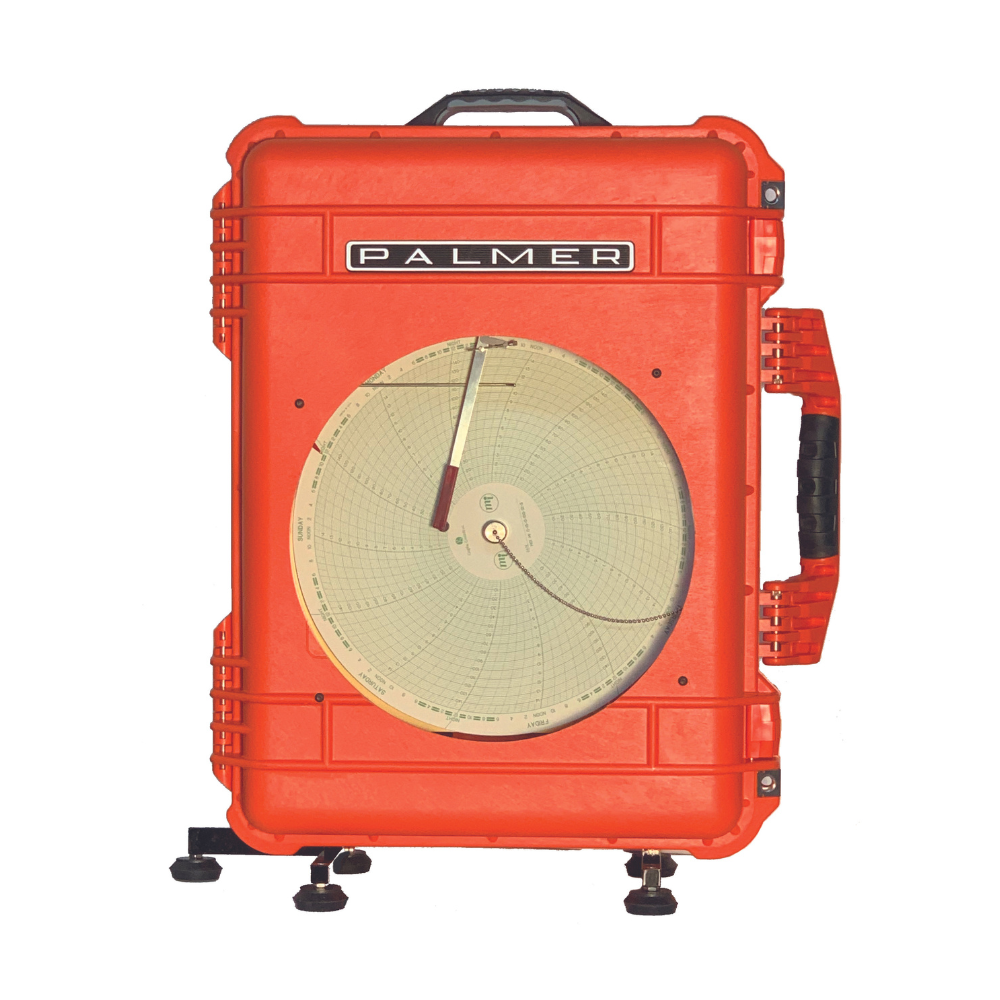

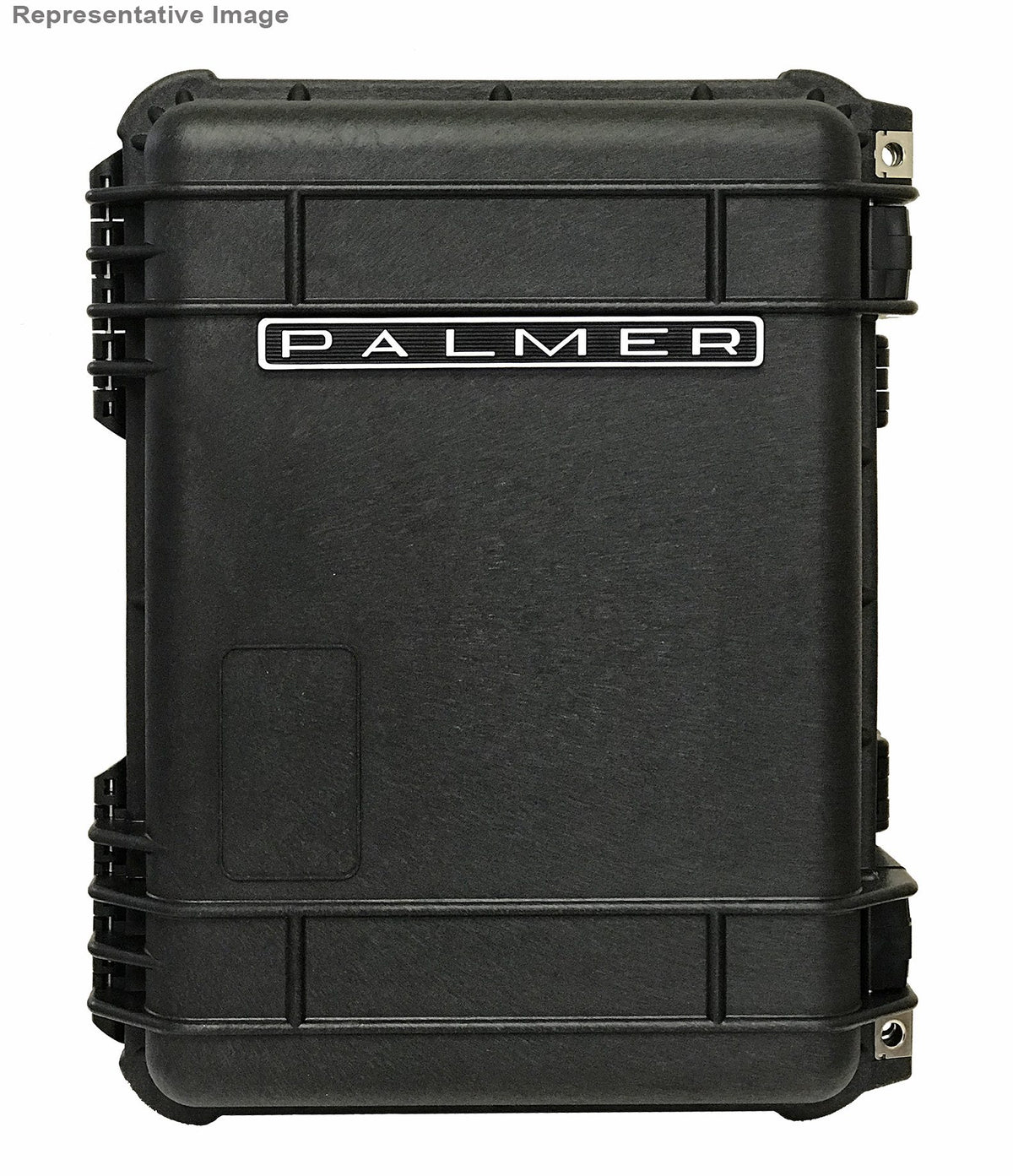

- Black (standard), orange or yellow case
- PC-11 or PC-12 C-cell battery drives
For pricing, please contact our experts.
