OPTEX FA OPF-210x200R-DF | Diffusion-Type LED Backlight | Red, 30.0 W

Name: OPTEX FA OPF-210x200R-DF | Diffusion-Type LED Backlight | Red, 30.0 W
Brand: OPTEX FA
SKU: OPF-210x200R-DF
Availability: OutOfStock

Part Number : OPF-210x200R-DF

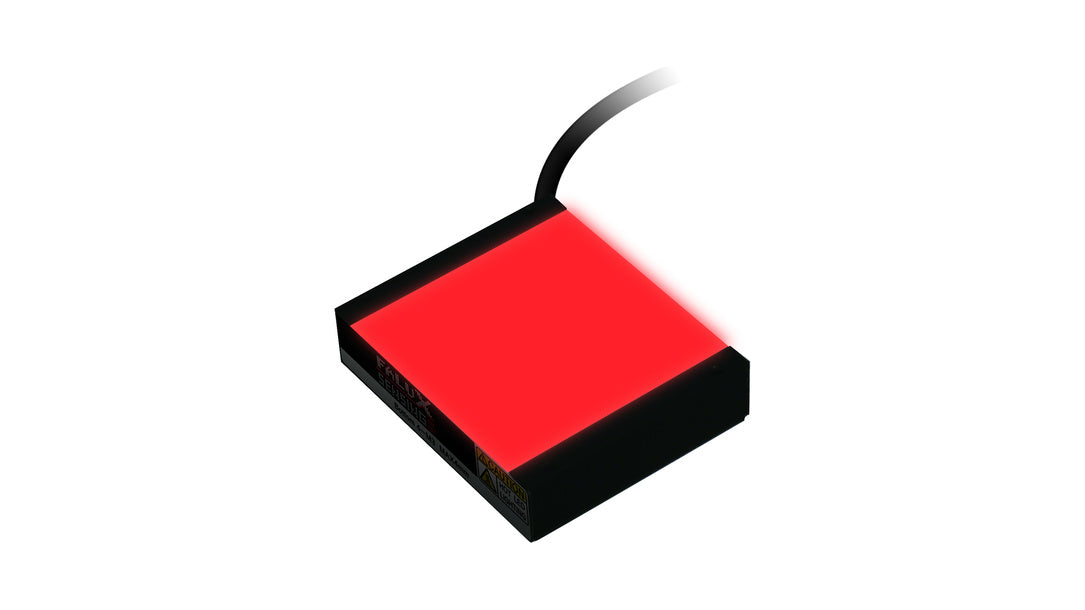

OPTEX FA lists the OPF-210x200R-DF as a red diffusion-type LED backlight within the Sensing LED Backlight OPF Series, consuming 30.0 W. The OPF-210x200R-DF uses the diffuse construction, which the series offers for penetrating scattering targets during foreign-matter inspection.

Key features

Red illumination (peak wavelength 630 nm)
Diffusion type
Power consumption: 30.0 W
IP40 housing in aluminium alloy and stainless steel

Availability: in stock

Specifications

Part Number	OPF-210x200R-DF
Brand	OPTEX FA
Series	Sensing LED Backlight OPF Series
Type	Backlight, diffusion type
Illumination colour	Red
Peak wavelength	630 nm
Power consumption	30.0 W
IEC 62471 classification	Exempt group
LED degradation	10% brightness drop after 10,000 h (100% dimming, 30°C, typical)
Protection rating	IP40
Ambient temperature/humidity	0 to 40°C / 35 to 85% RH (no condensation)
Storage temperature/humidity	-20 to 70°C / 35 to 95% RH (no condensation)
Housing material	Aluminium alloy and stainless steel
Standards	EMC (2014/30/EU), RoHS (2011/65/EU), EN 61326-1:2013
