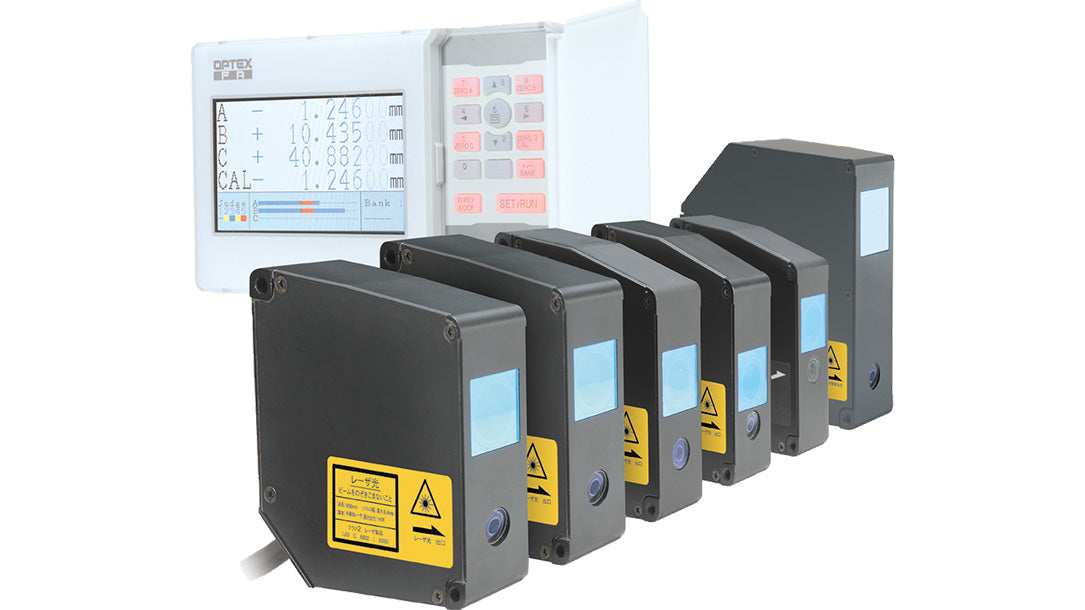

OPTEX FA CD5-L25A | Laser Displacement Sensor Head | 25 ±1 mm, Specular, Spot Beam
Part Number : CD5-L25A
The OPTEX FA CD5-L25A is a spot-beam, specular-reflective sensor head from the CD5 multi-unit laser displacement range, covering 25 ±1 mm with a spot size of about 25 x 35 μm. OPTEX FA lists the CD5-L25A for measuring transparent and specular objects. Up to three heads such as the CD5-L25A can share one CD5 amplifier for multi-point checks like thickness, height difference and parallelism.
- Measurement range: 25 ±1 mm
- Linearity: ±0.08% of F.S. (F.S. = 2 mm)
- Spot size: Approx. 25 x 35 μm
- Sampling period selectable from 100 μs to 3,200 μs or AUTO
