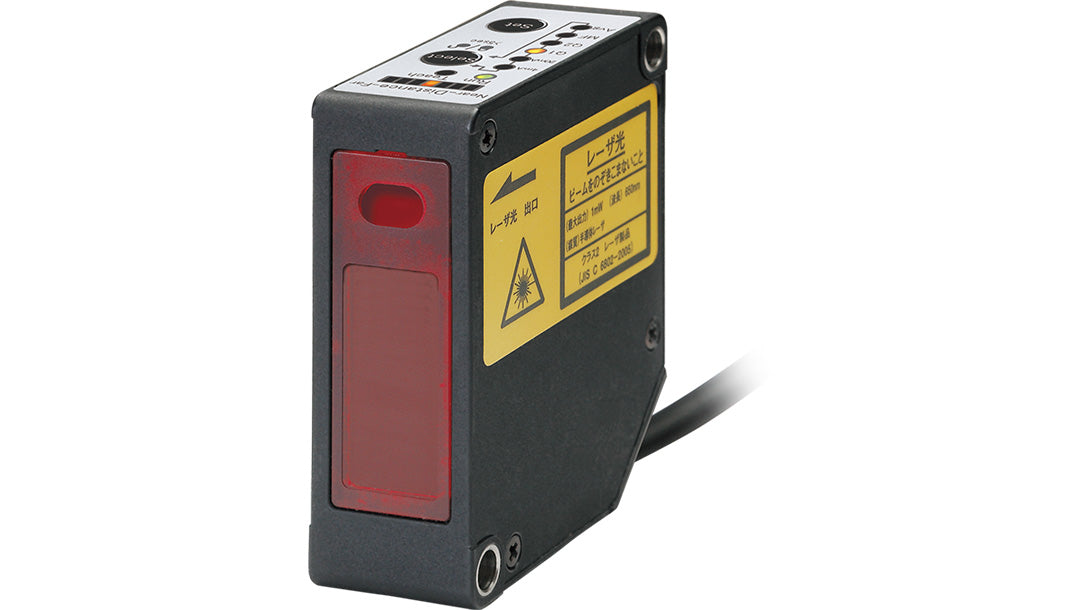

OPTEX FA CD33-50CN-422 | Laser Displacement Sensor | 50 ±10 mm, RS-422, NPN, Connector
Part Number : CD33-50CN-422
The OPTEX FA CD33-50CN-422 is a connector-type CD33 small laser displacement sensor for short range diffuse-reflective measurement, centred at 50 mm with a ±10 mm range. The CD33-50CN-422 sends measured values over an RS-422 serial interface, with a single NPN control output on Q2. At half-palm size, the CD33-50CN-422 suits being built into smaller machines.
- Measurement range 50 ±10 mm (F.S. 20 mm)
- Spot size 0.5 x 1.0 mm
- Repeat accuracy 5 μm
- RS-422 output, 1ch / NPN control output
- M12, 8-pin connector, IP67
For pricing, please contact our experts.
