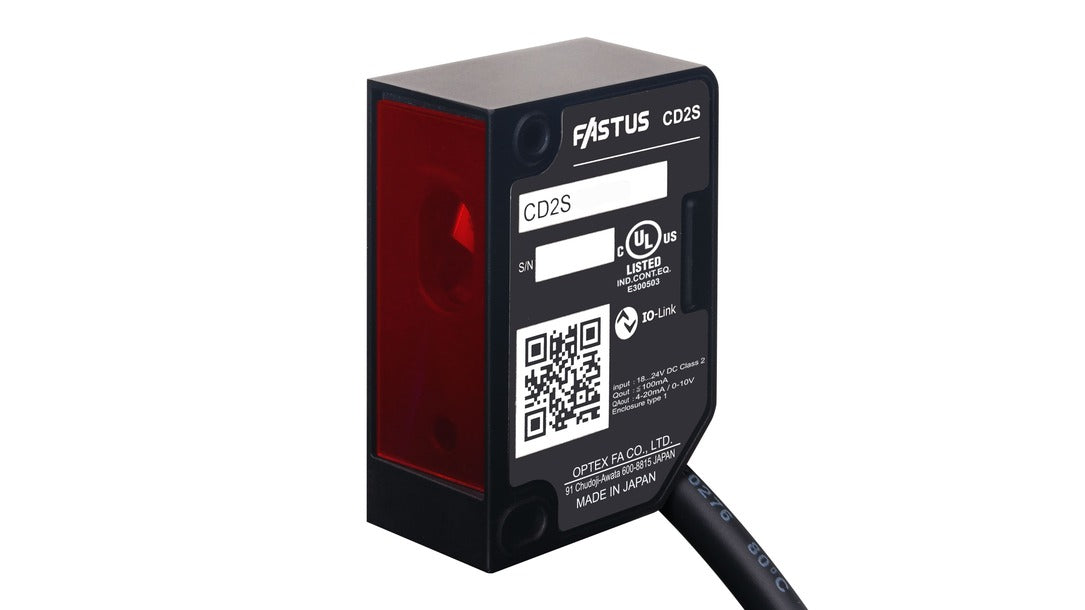

OPTEX FA CD2S-30M12 | Compact Laser Displacement Sensor | 30 ±5 mm, Pigtail, IO-Link
Part Number : CD2S-30M12
With a 30 ±5 mm range, the OPTEX FA CD2S-30M12 is the short range pigtail model of the CD2S compact laser displacement line. Resolution and repeat accuracy on the CD2S-30M12 are both 2 μm. An ATMOS image sensor and OLED display sit in the 18.4 × 33 × 46.4 mm housing of the CD2S-30M12, aimed at stable measurement regardless of colour or material.
- CD2S-30M12 spot size approx. 0.2 × 0.5 mm
- CD2S-30M12 linearity ±0.1% F.S. (white ceramic), ±0.3% F.S. (black ceramic)
- CD2S-30M12: Class 1 red laser, 655 nm
- CD2S-30M12: IO-Link 1.1 with 4 to 20 mA / 0 to 10 V analogue output
- CD2S-30M12 ø5.5 mm, 300 mm pigtail with M12 5-pin connector, IP67
For pricing, please contact our experts.
