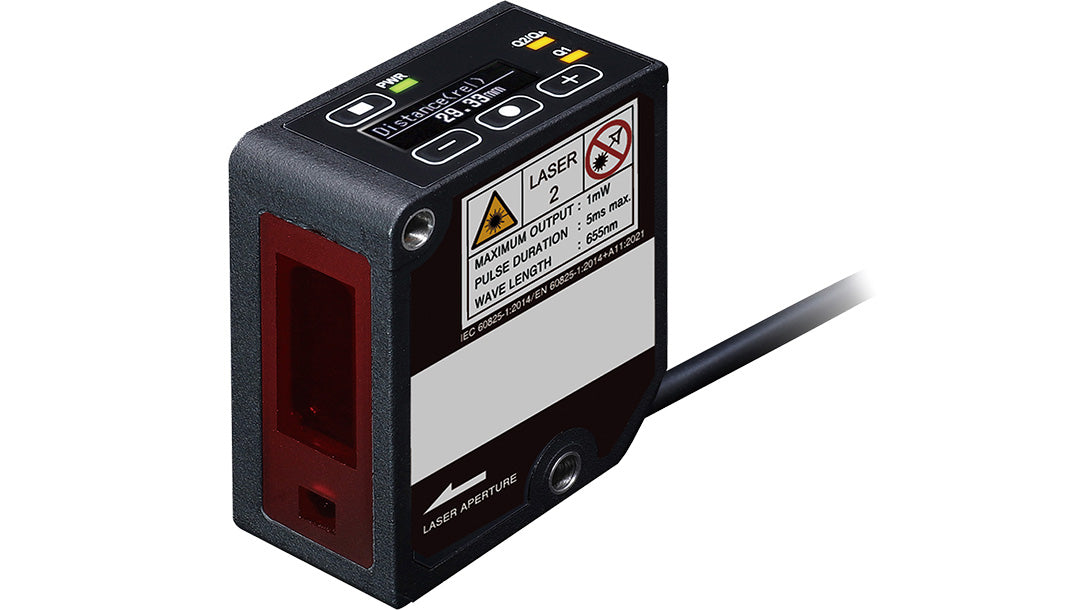

OPTEX FA CD2H-7002 | Laser Displacement Sensor | 700 ±500 mm, Cable, IO-Link
Part Number : CD2H-7002
The OPTEX FA CD2H-7002 measures 700 ±500 mm and is the cable variant of the super long range CD2H laser displacement sensor. The CD2H-7002 resolves 100 μm with a φ1.0 mm spot. The all-in-one CD2H-7002 housing carries an OLED display that can also show the received light waveform.
- CD2H-7002 repeat accuracy 100 μm
- CD2H-7002 spot size φ1.0 mm at 700 mm
- CD2H-7002 linearity ±0.1% F.S. (200 to 700 mm), ±0.3% F.S. (700 to 1200 mm)
- Sampling period on the CD2H-7002 from 133.3 μs
- CD2H-7002: IO-Link Rev. 1.1 plus 4 to 20 mA or 0 to 10 V output
For pricing, please contact our experts.
