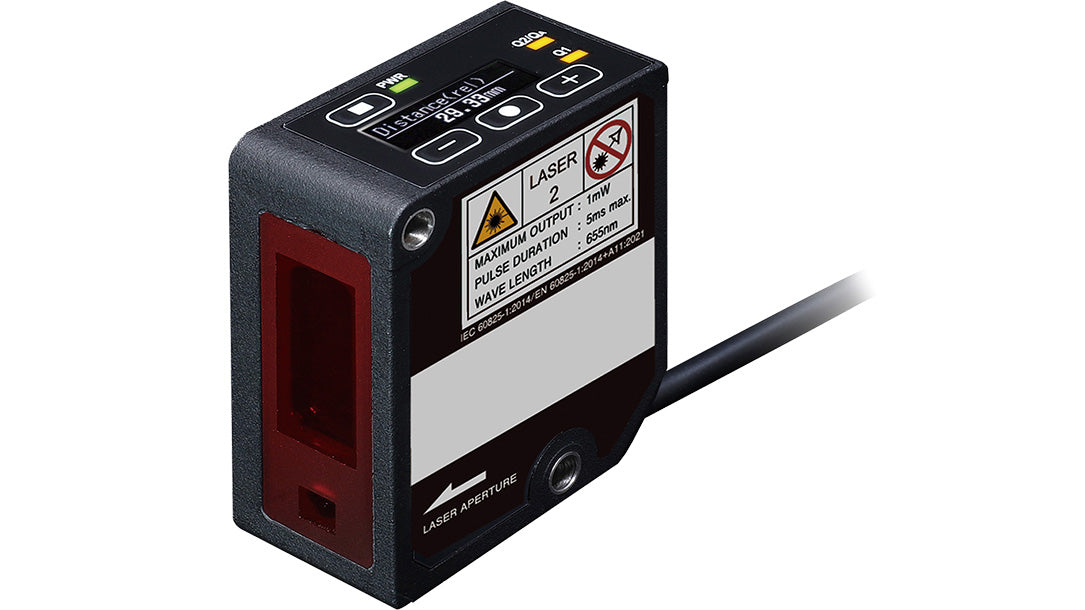

OPTEX FA CD2H-50-485M12A | Laser Displacement Sensor | 50 ±10 mm, RS-485 Pigtail
Part Number : CD2H-50-485M12A
Covering 40 to 60 mm, the OPTEX FA CD2H-50-485M12A is a short range model in the CD2H laser displacement series, built as a rs-485 pigtail type. The CD2H-50-485M12A resolves 0.25 μm with a φ70 μm spot. The all-in-one CD2H-50-485M12A housing carries an OLED display that can also show the received light waveform.
- CD2H-50-485M12A repeat accuracy 0.25 μm
- CD2H-50-485M12A spot size φ70 μm at 50 mm
- CD2H-50-485M12A linearity ±0.1% F.S. across 40 to 60 mm
- Sampling period on the CD2H-50-485M12A from 133.3 μs
- CD2H-50-485M12A: RS-485 communication, pigtail type
For pricing, please contact our experts.
