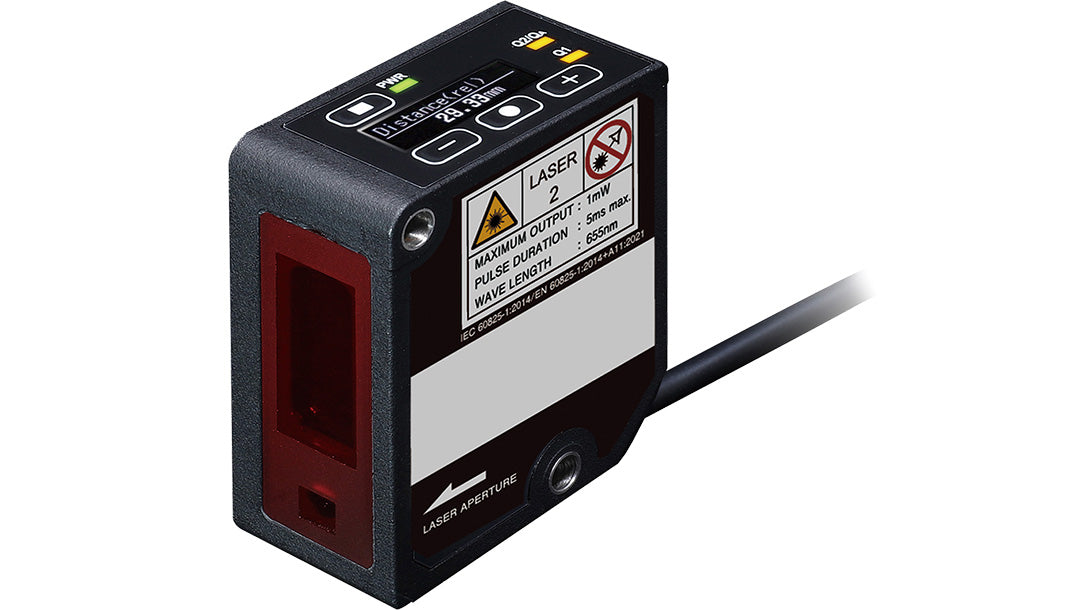

OPTEX FA CD2H-2452 | Laser Displacement Sensor | 245 ±175 mm, Cable, IO-Link
Part Number : CD2H-2452
The OPTEX FA CD2H-2452 measures 245 ±175 mm and is the cable variant of the middle range CD2H laser displacement sensor. The CD2H-2452 resolves 10 μm with a φ0.5 mm spot. The all-in-one CD2H-2452 housing carries an OLED display that can also show the received light waveform.
- CD2H-2452 repeat accuracy 10 μm
- CD2H-2452 spot size φ0.5 mm at 245 mm
- CD2H-2452 linearity ±0.1% F.S. across 70 to 420 mm
- Sampling period on the CD2H-2452 from 133.3 μs
- CD2H-2452: IO-Link Rev. 1.1 plus 4 to 20 mA or 0 to 10 V output
For pricing, please contact our experts.
