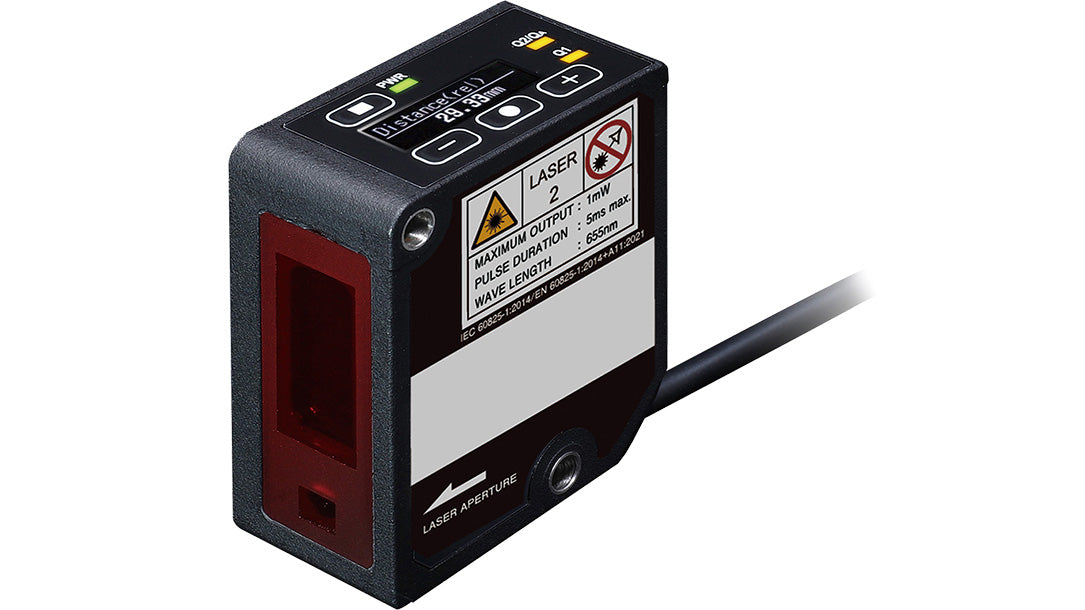

OPTEX FA CD2H-130M12 | Laser Displacement Sensor | 130 ±70 mm, Pigtail, IO-Link
Part Number : CD2H-130M12
OPTEX FA CD2H-130M12 is a middle range CD2H laser displacement sensor covering 130 ±70 mm (working distance 60 to 200 mm), supplied as the pigtail version. The CD2H-130M12 resolves 4 μm with a φ0.3 mm spot. The all-in-one CD2H-130M12 housing carries an OLED display that can also show the received light waveform.
- CD2H-130M12 repeat accuracy 4 μm
- CD2H-130M12 spot size φ0.3 mm at 130 mm
- CD2H-130M12 linearity ±0.1% F.S. across 60 to 200 mm
- Sampling period on the CD2H-130M12 from 133.3 μs
- CD2H-130M12: IO-Link Rev. 1.1 plus 4 to 20 mA or 0 to 10 V output
For pricing, please contact our experts.
