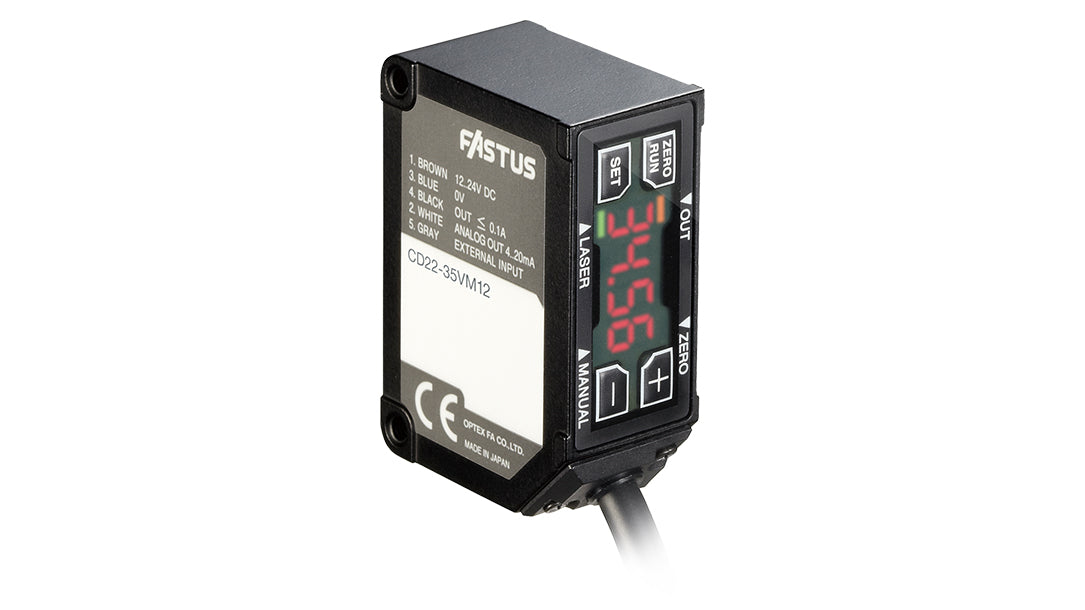

OPTEX FA CD22-15A | Compact Laser Displacement Sensor | 15 ±5 mm, 4–20 mA, Cable
Part Number : CD22-15A
OPTEX FA CD22-15A: high-accuracy CD22 sensor, 15 ±5 mm measurement range, analogue current output (4 to 20 mA), cable connection. Repeat accuracy for the CD22-15A is 1 μm over a 10 mm full scale. Like the rest of the CD22 Series, the CD22-15A packs the amplifier and a 4-digit display into an 18 × 31 × 44 mm body.
- CD22-15A spot size approx. 0.5 × 0.7 mm
- CD22-15A linearity ±0.1% F.S. at 15 ±5 mm
- Red laser, 655 nm, on the CD22-15A
- CD22-15A: 4 to 20 mA, load impedance 300 Ω or less
- CD22-15A cable type rated IP67
For pricing, please contact our experts.
