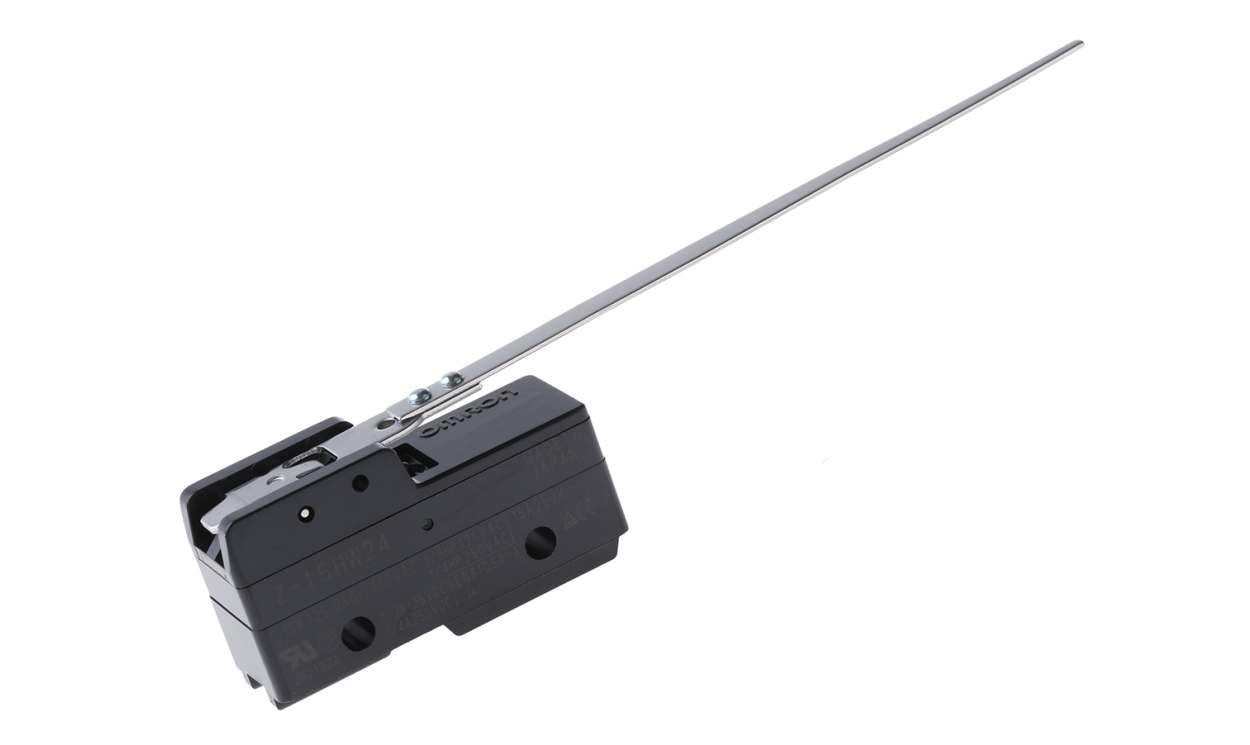

Omron Z-15HW24, Z Series Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

Name: Omron Z-15HW24, Z Series Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15HW24
Availability: OutOfStock

Part Number : Z-15HW24

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series Z Limit Switch, NO/NC Normal State Configuration, 15A Maximum Current - Z-15HW24

This limit switch is engineered for precision and durability across various industrial applications. Featuring a snap action mechanism, it guarantees prompt and consistent operation, making it an essential element in automation systems and machinery safety features. Constructed from thermosetting resin, it is designed to withstand demanding environments while complying with industry standards for safety and performance.

Features & Benefits

• SPDT configuration enables versatile circuit control
• Supports a maximum current of 15A for robust Applications
• Lever actuator facilitates easy manual operation and flexibility
• Snap action provides rapid response for time-sensitive uses

Applications

• Utilised with automated machinery for precise positioning
• Suitable for safety interlocks in mechanical systems
• Ideal for controlling electric motors in industrial settings
• Employed in conveyor systems to monitor limits

What type of connection does it require?

It uses a solder connection for secure electrical integration.

Is the switch suitable for high-voltage applications?

Yes, it can safely handle up to 500V AC and 250V DC.

How long is the mechanical lifespan of this component?

It is rated for up to 20 million operations, ensuring long-term performance.

Can this be integrated into a complex automation system?

It is designed to work seamlessly with various automation and control systems.

Brand	Omron
Actuator Type	Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Solder
Series	Z
Action Type	Snap Action
Length	49.2mm
Width	29.4mm
Depth	17.45mm
Minimum Operating Temperature	-25°C
Standards Met	CCC, CE, CSA, UL
Maximum Operating Temperature	+80°C
Mechanical Life	20000000Operations
Operating Force	58.8 mN
