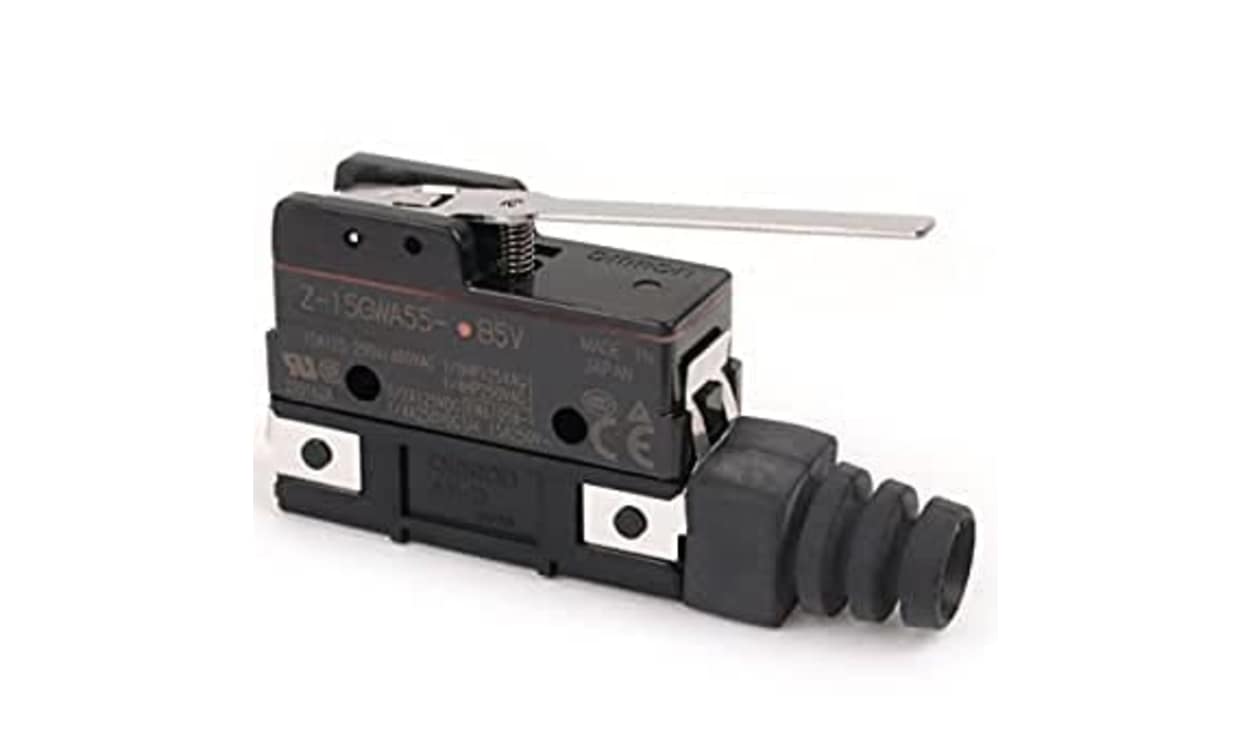

Omron Z-15GWA55-B5V, Z Series Hinge Lever Limit Switch, NO/NC, IP62, SPDT, Plastic Housing, 250V ac ac Max, 15A Max

Name: Omron Z-15GWA55-B5V, Z Series Hinge Lever Limit Switch, NO/NC, IP62, SPDT, Plastic Housing, 250V ac ac Max, 15A Max
Brand: OMRON
SKU: Z-15GWA55-B5V
Availability: OutOfStock

Part Number : Z-15GWA55-B5V

Availability: Sold out

Detailed Description
Specifications
Downloads

Z15 Series – Basic Switch

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

Approvals

UL recognised, CSA

The Omron General-purpose basic switch has a large switching capacity of 15 A with high repeat accuracy. It has a wide range of variations in contact form basic, split-contact, maintained-contact, and adjustable contact gap types.

Degree of protection equivalent to IP62
Operating temperature −25°C to 80°C

Brand	Omron
Actuator Type	Hinge Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP62
Maximum Current	15A
Housing Material	Plastic
Maximum AC Voltage	250V ac
Series	Z
